Traction Control System (TCS)

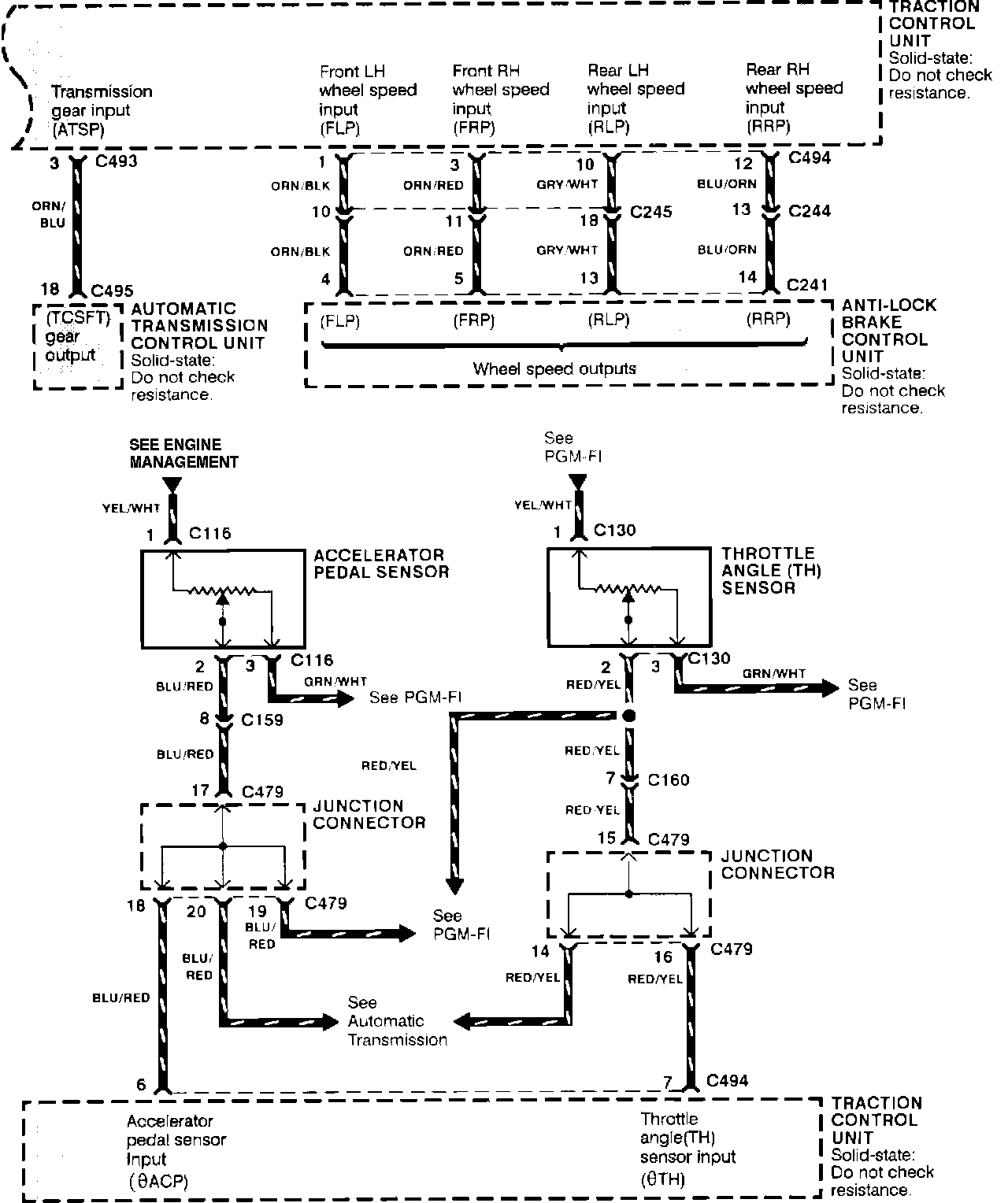

Traction Control System (TCS):

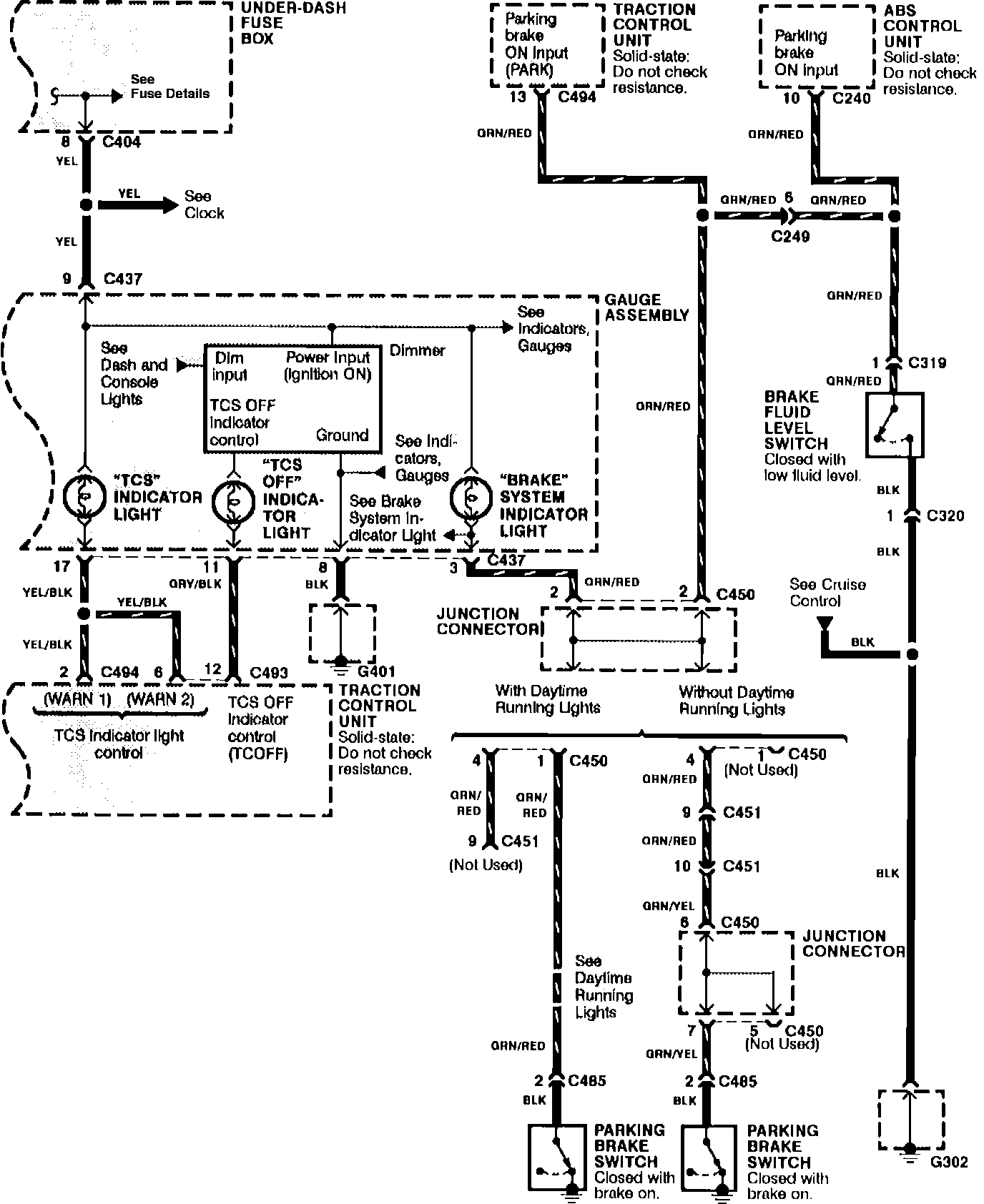

Traction Control System (TCS):

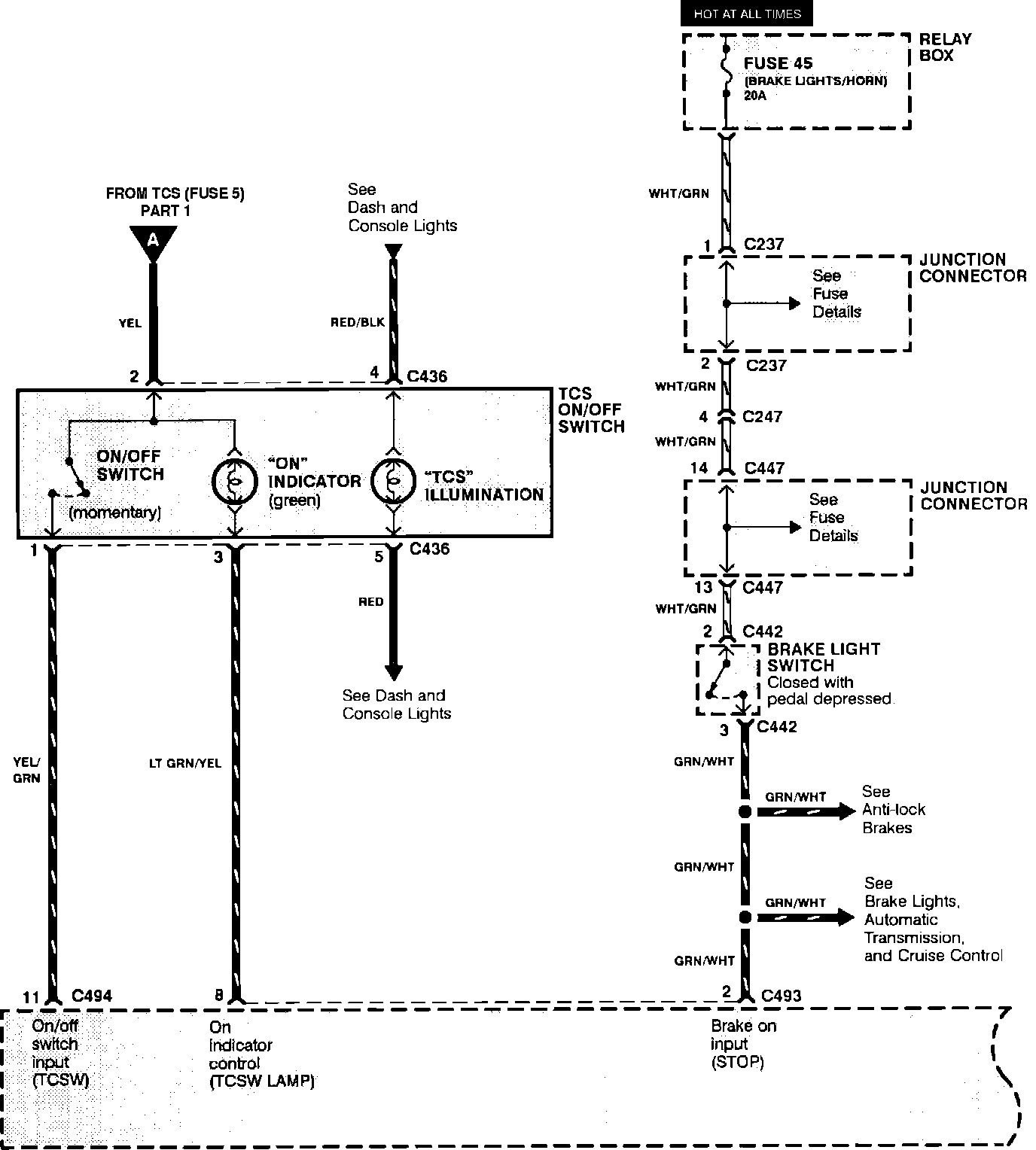

Traction Control System (TCS):

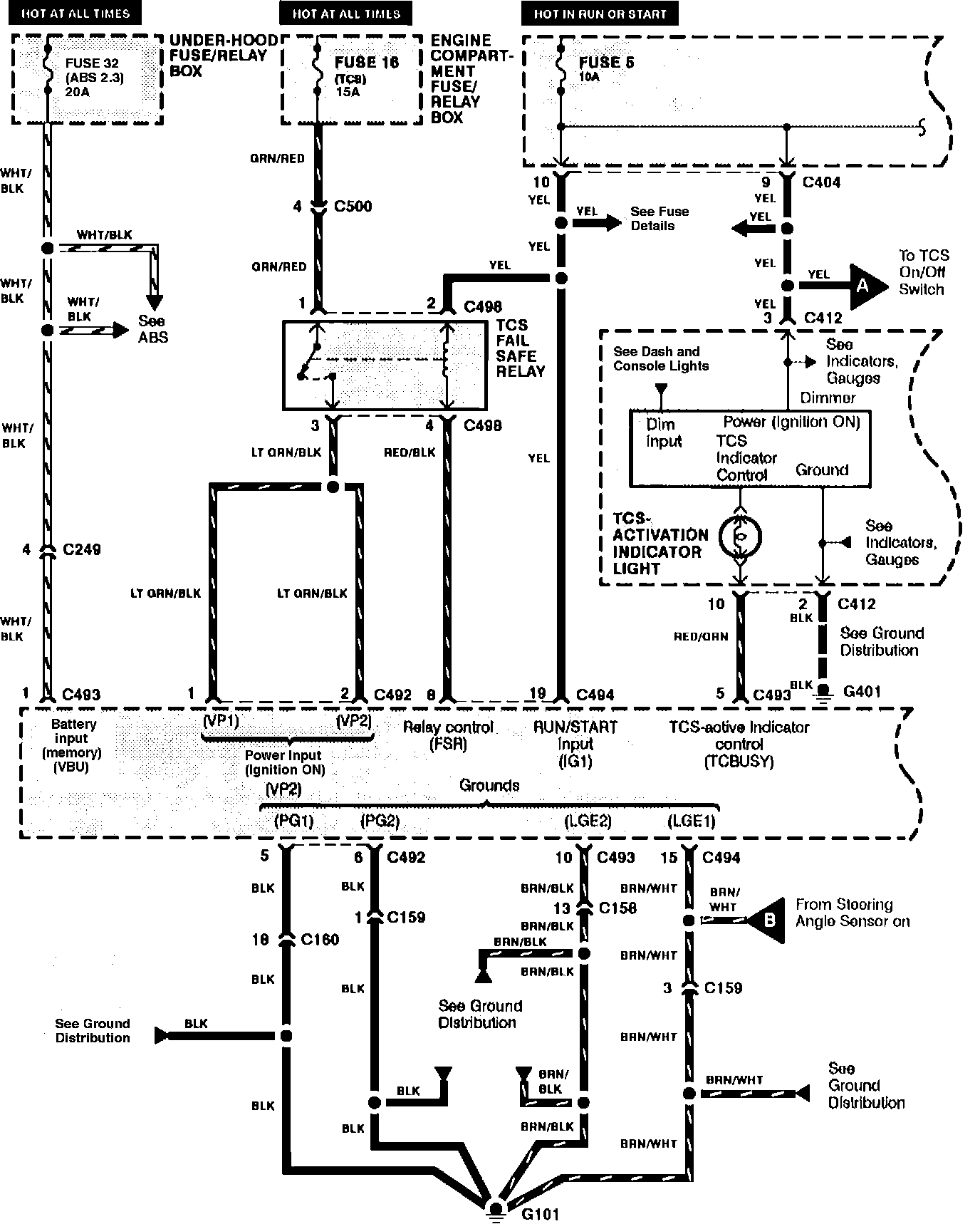

Traction Control System (TCS):

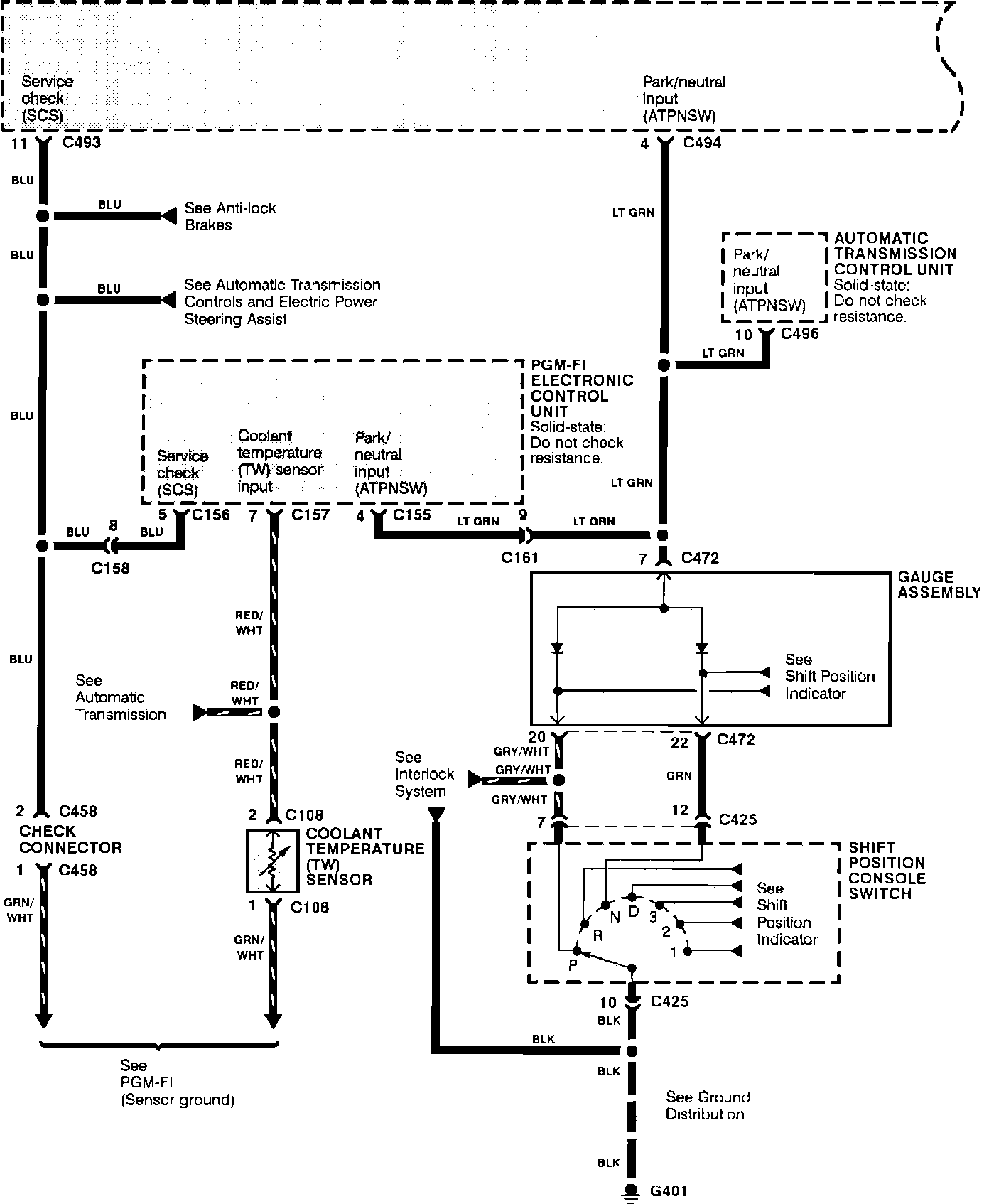

Traction Control System (TCS):



Traction Control System:



Traction Control System:
