Home >> Acura >> 1992 >> NSX V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> 2 of 9

2 of 9

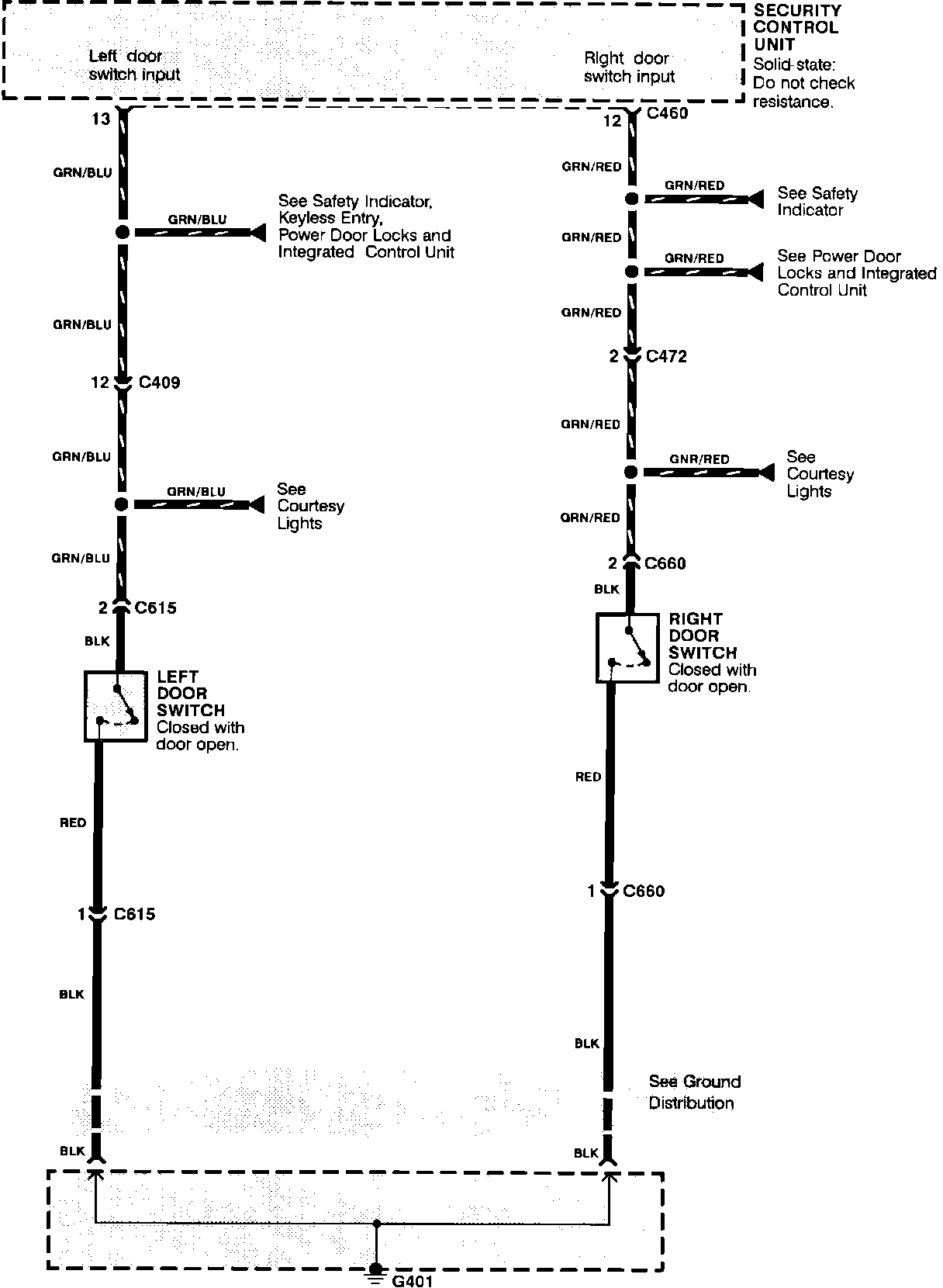

Security System: Door Exterior Switch Inputs:
