Antitheft and Alarm Systems
>>
4 of 9
4 of 9

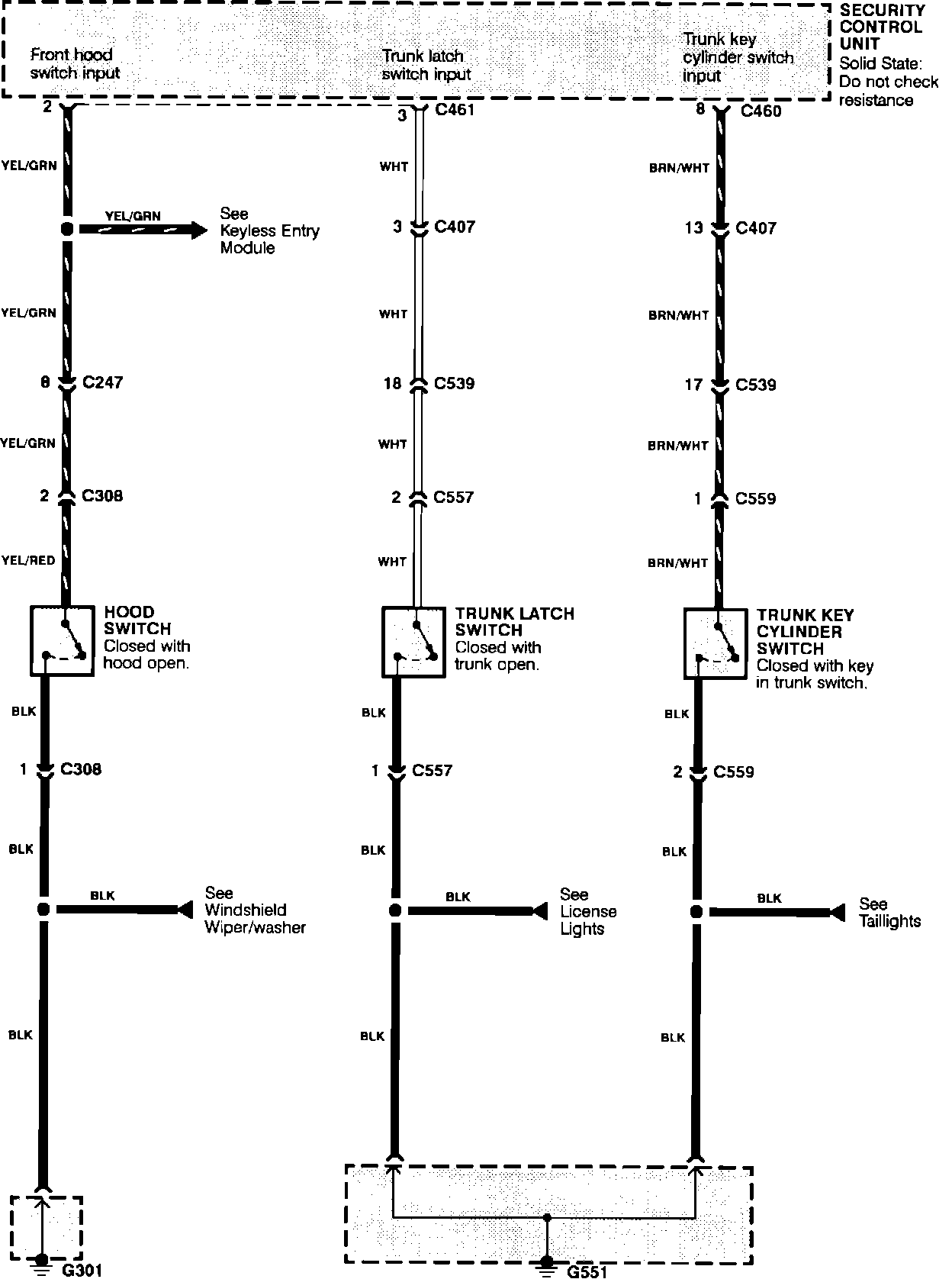

Security System: Hood And Trunk Exterior Switch Inputs:
