Console Lamp

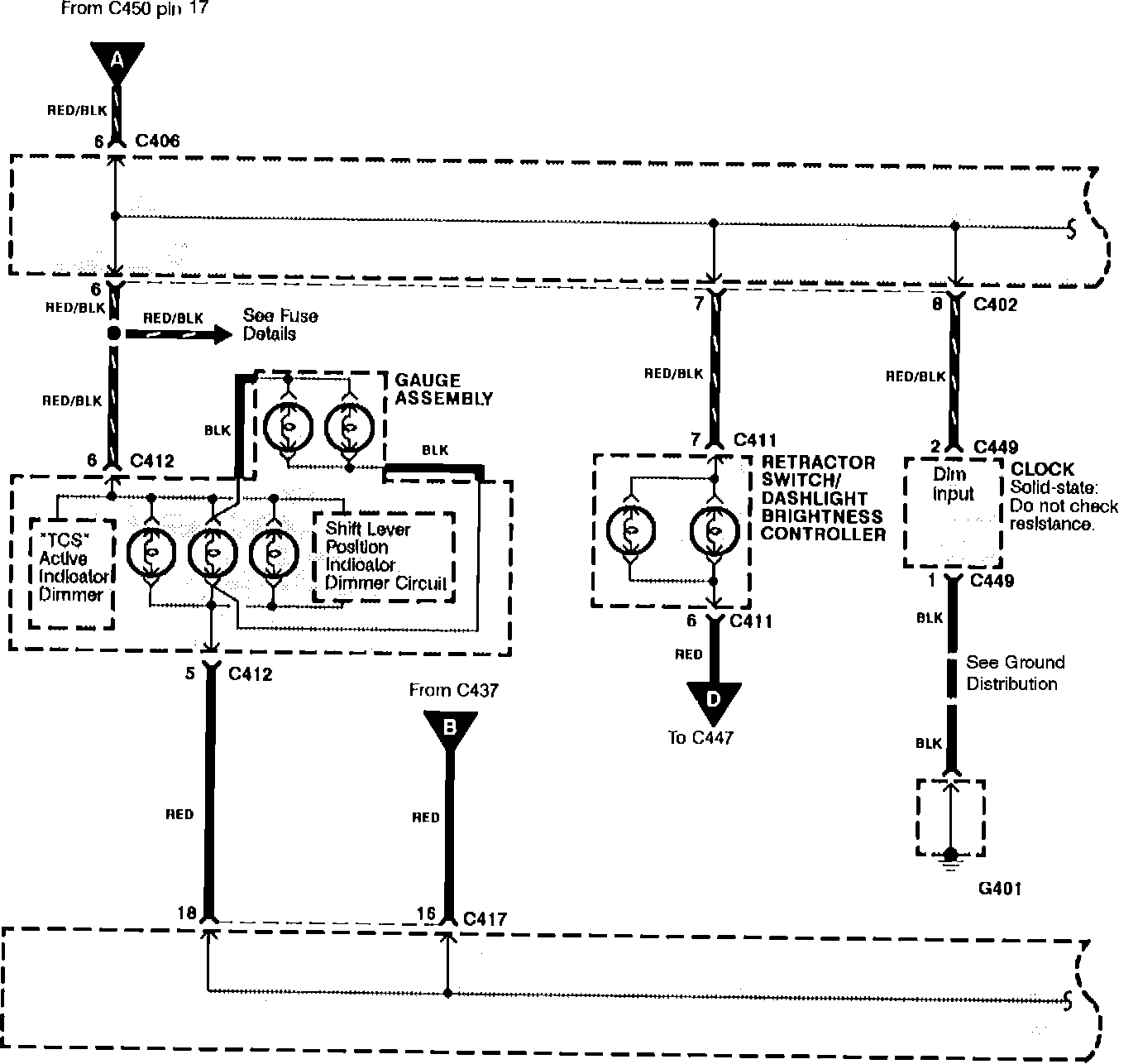

Dash And Console Lights:



Dash And Console Lights:



Dash And Console Lights:



Dash And Console Lights:
