Home >> Acura >> 1992 >> NSX V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> With Keyless Entry

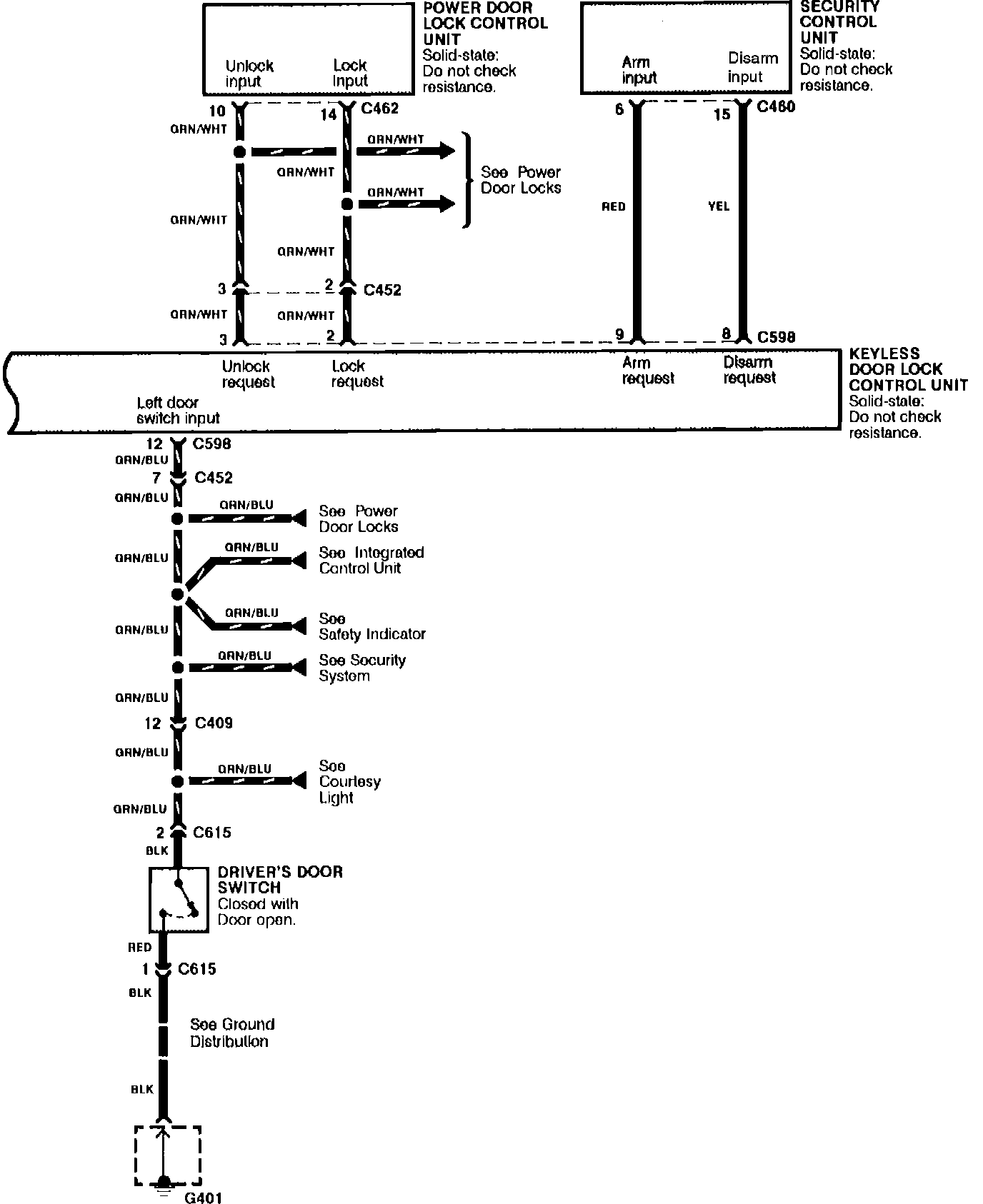

With Keyless Entry

Keyless Entry:



Keyless Entry:
