Hi-Beam Indicator Lamp

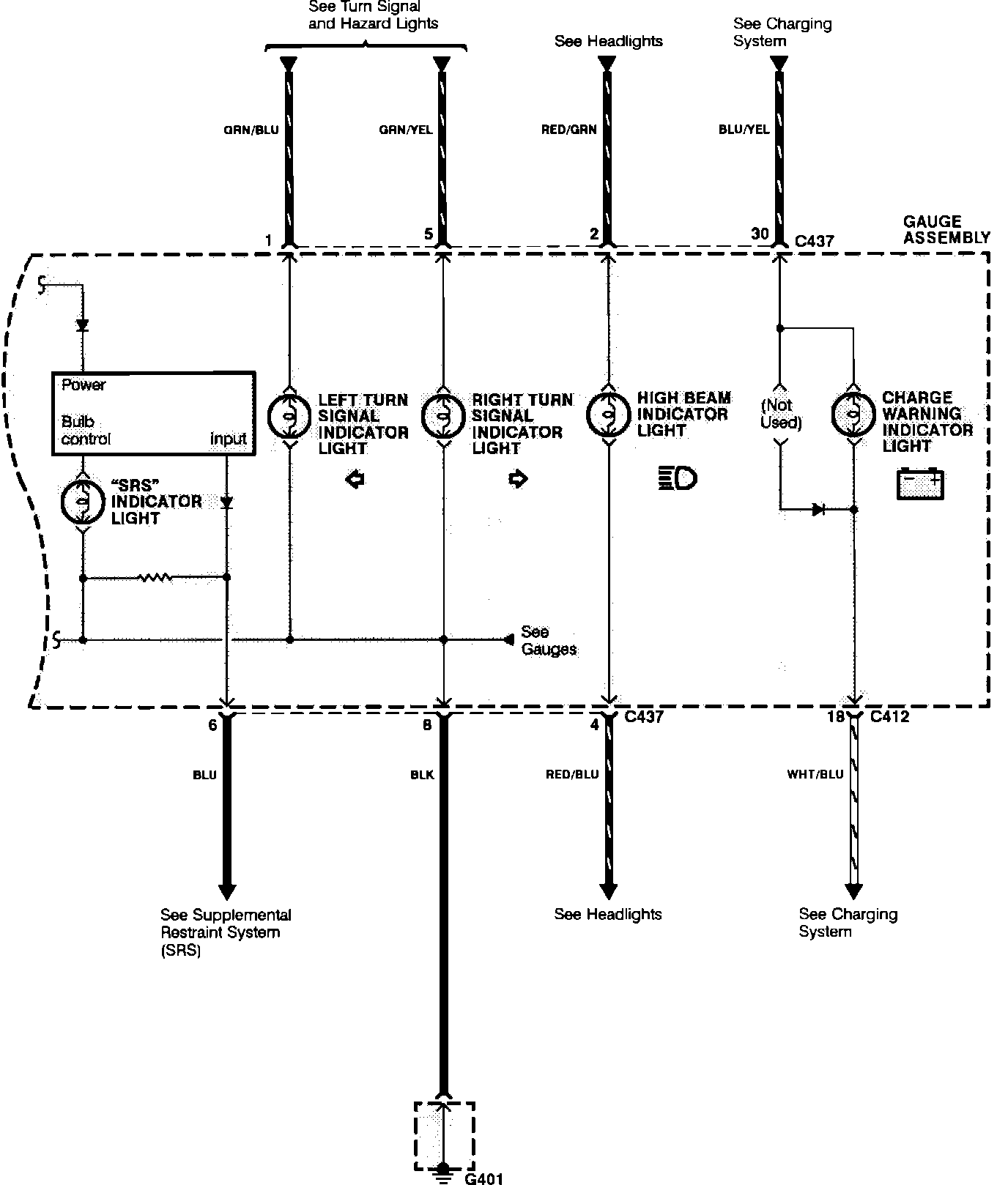

Instrument Panel Circuit Board Wiring:

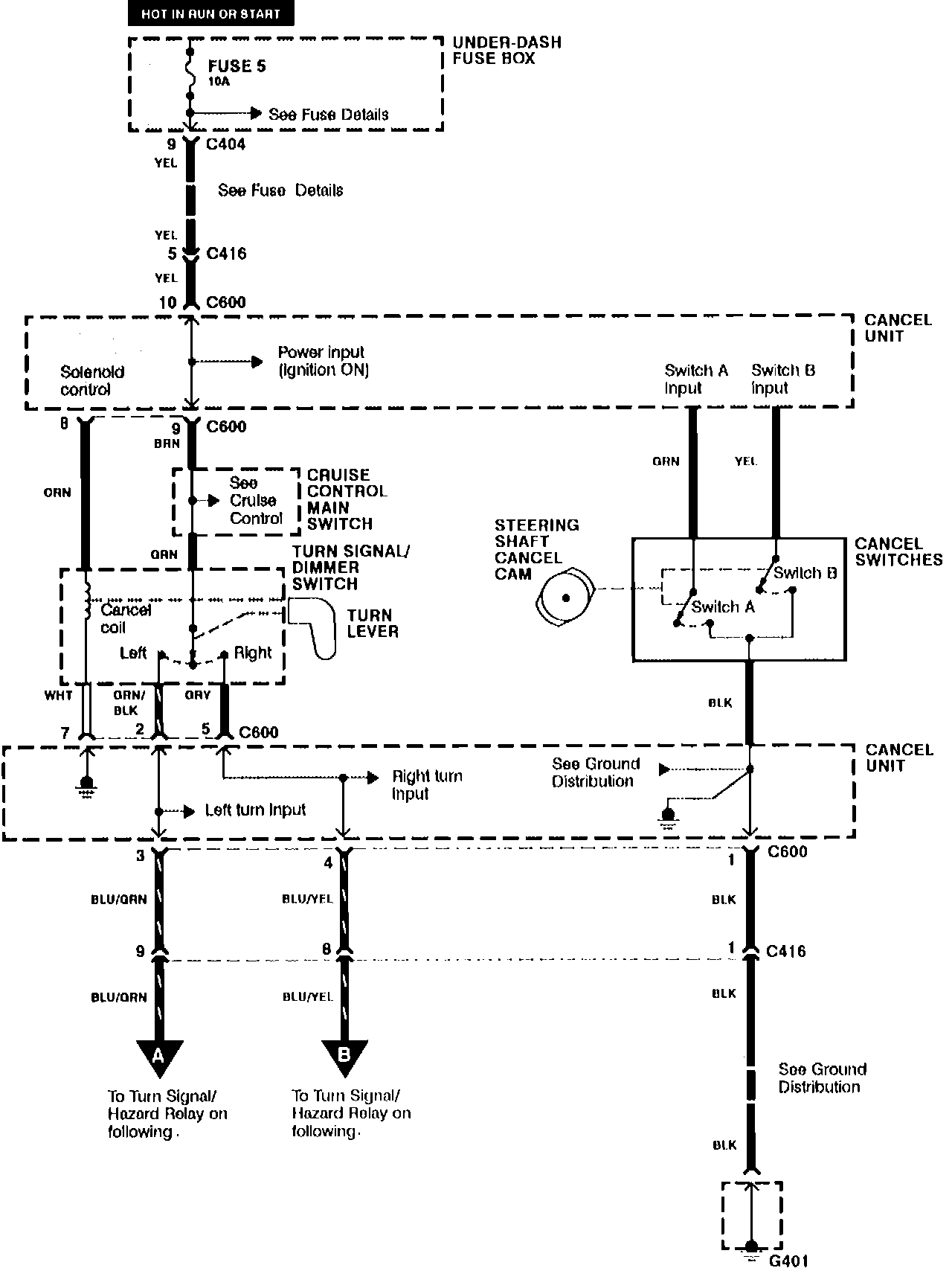

Turn Signal And Hazard Lights:



Turn Signal And Hazard Lights:



Turn Signal And Hazard Lights:
