Malfunction Indicator Lamp
Malfunction Indicator Lamp

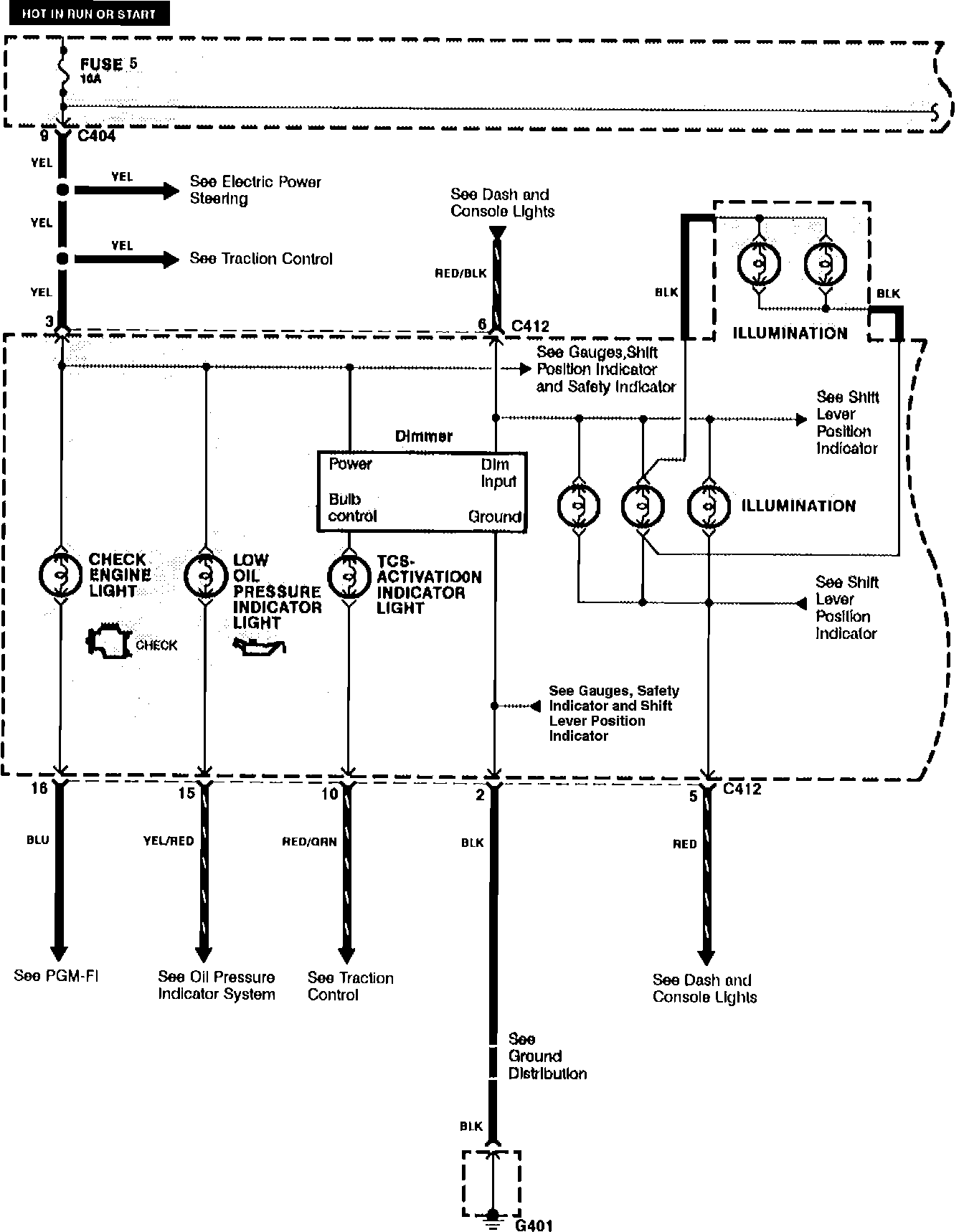

Indicators: Check Engine, Low Oil Pressure, And Traction Control System (TCS) Activation:
