Torque and Sequence

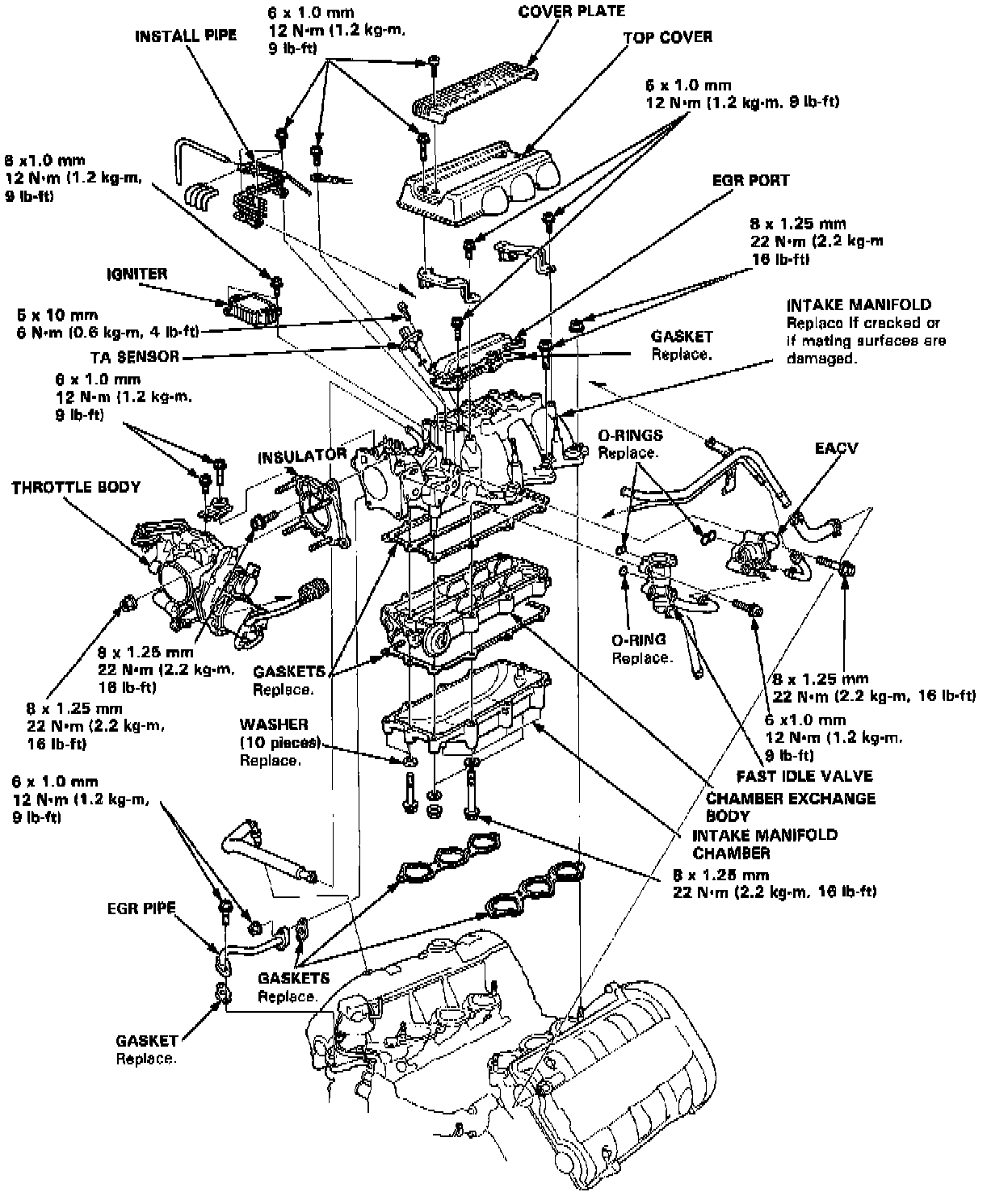

Intake:

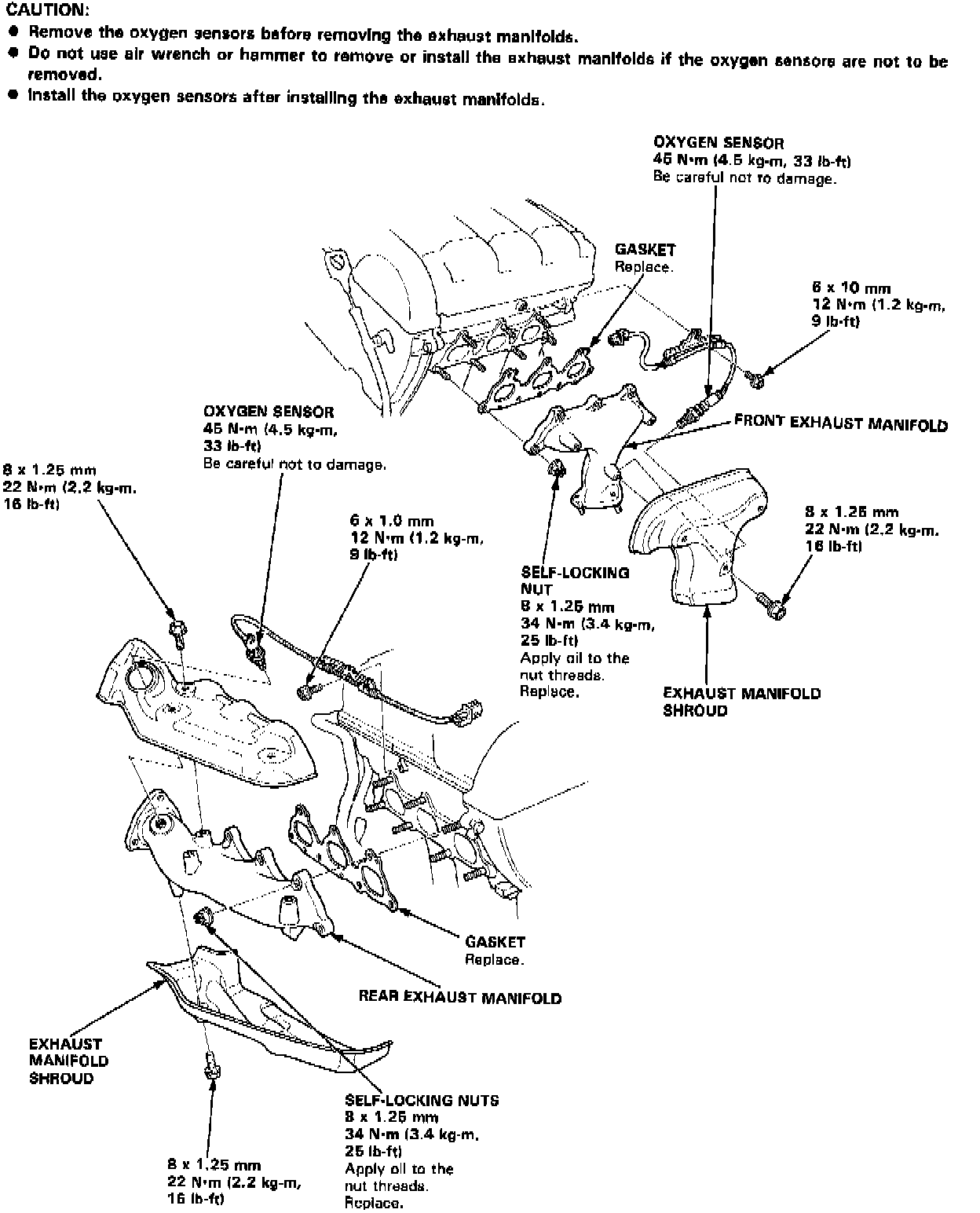

Exhaust Manifold:

Upper Engine:

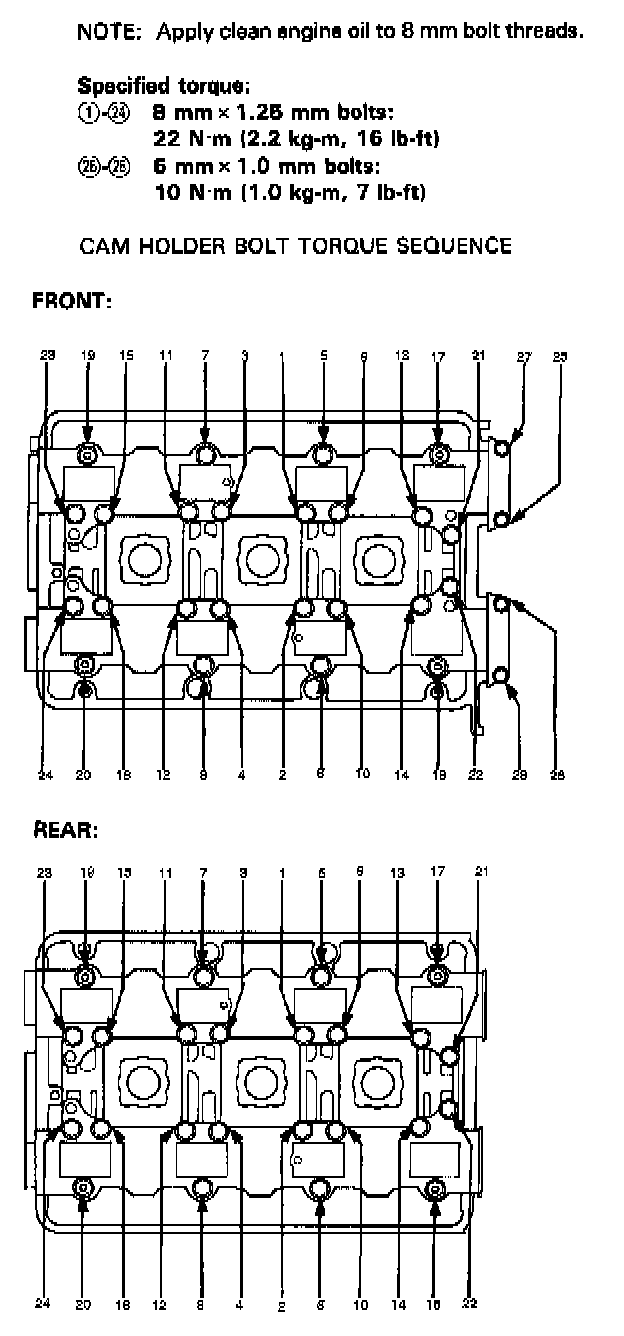

Cam Holder Torque/Sequence:

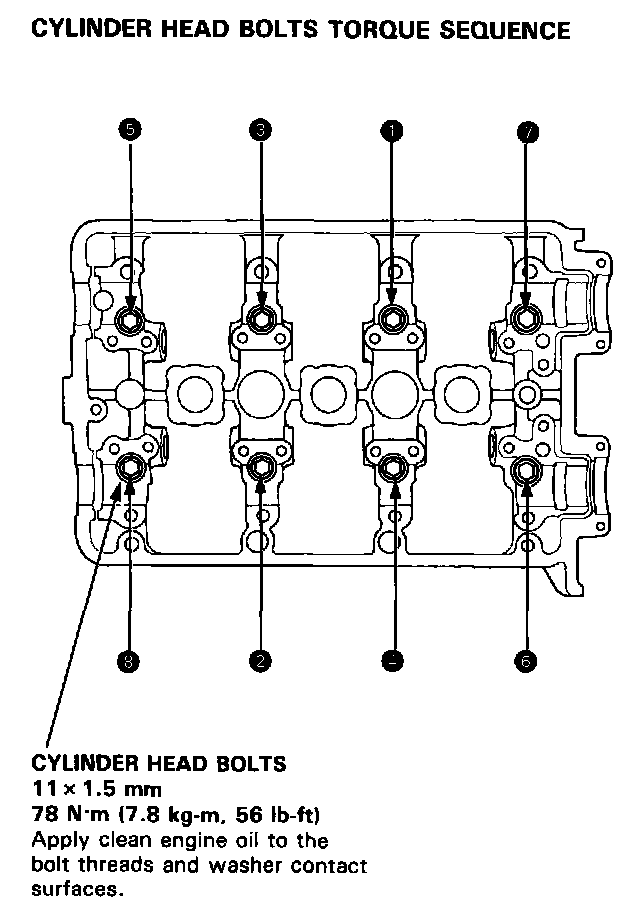

Head Bolt Torque/Sequence:

Tighten cylinder head bolts sequentially in two or three steps to 78 N.m (7.8 kg-m, 56 ft.lb)

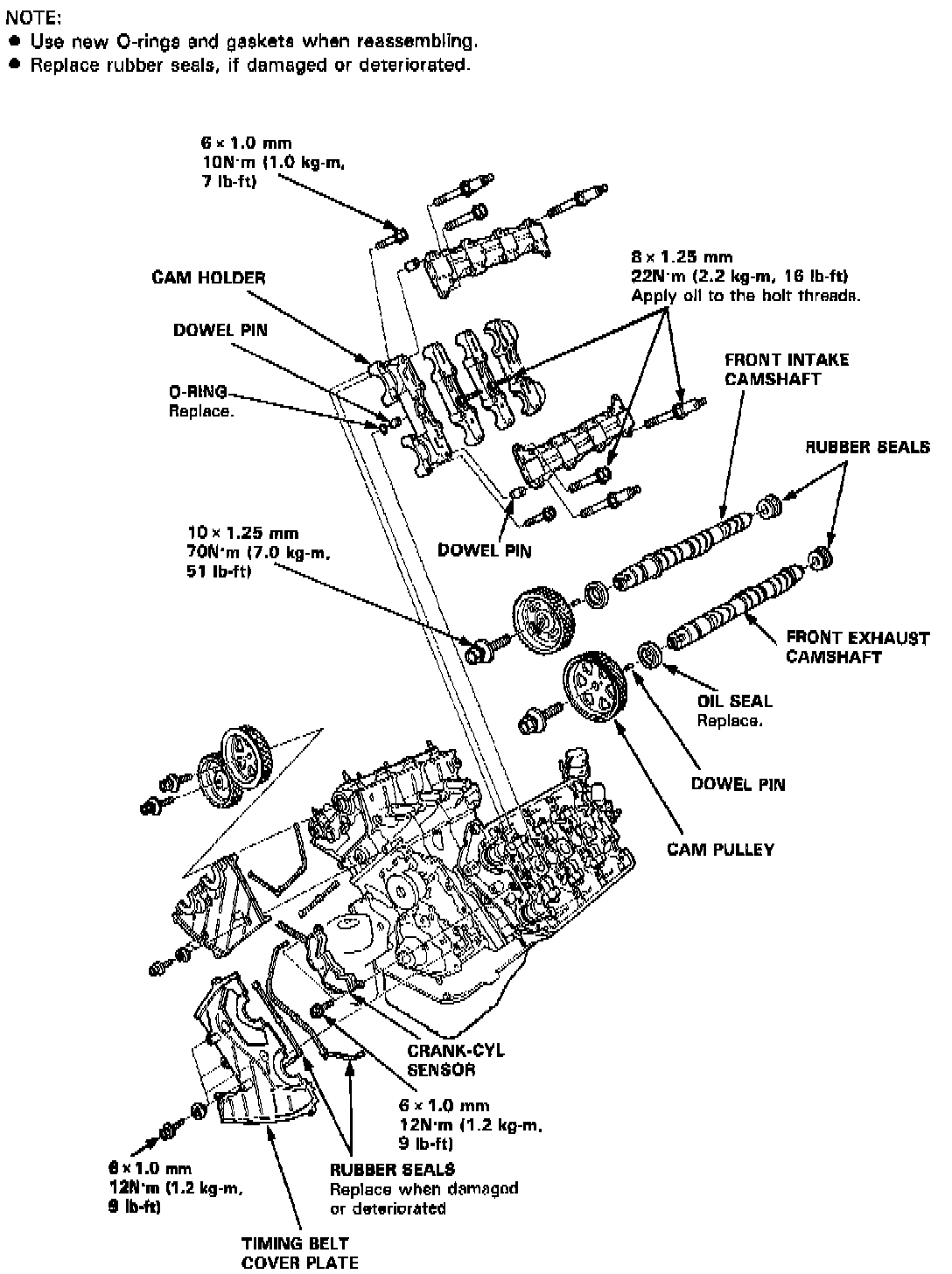

Timing Components:

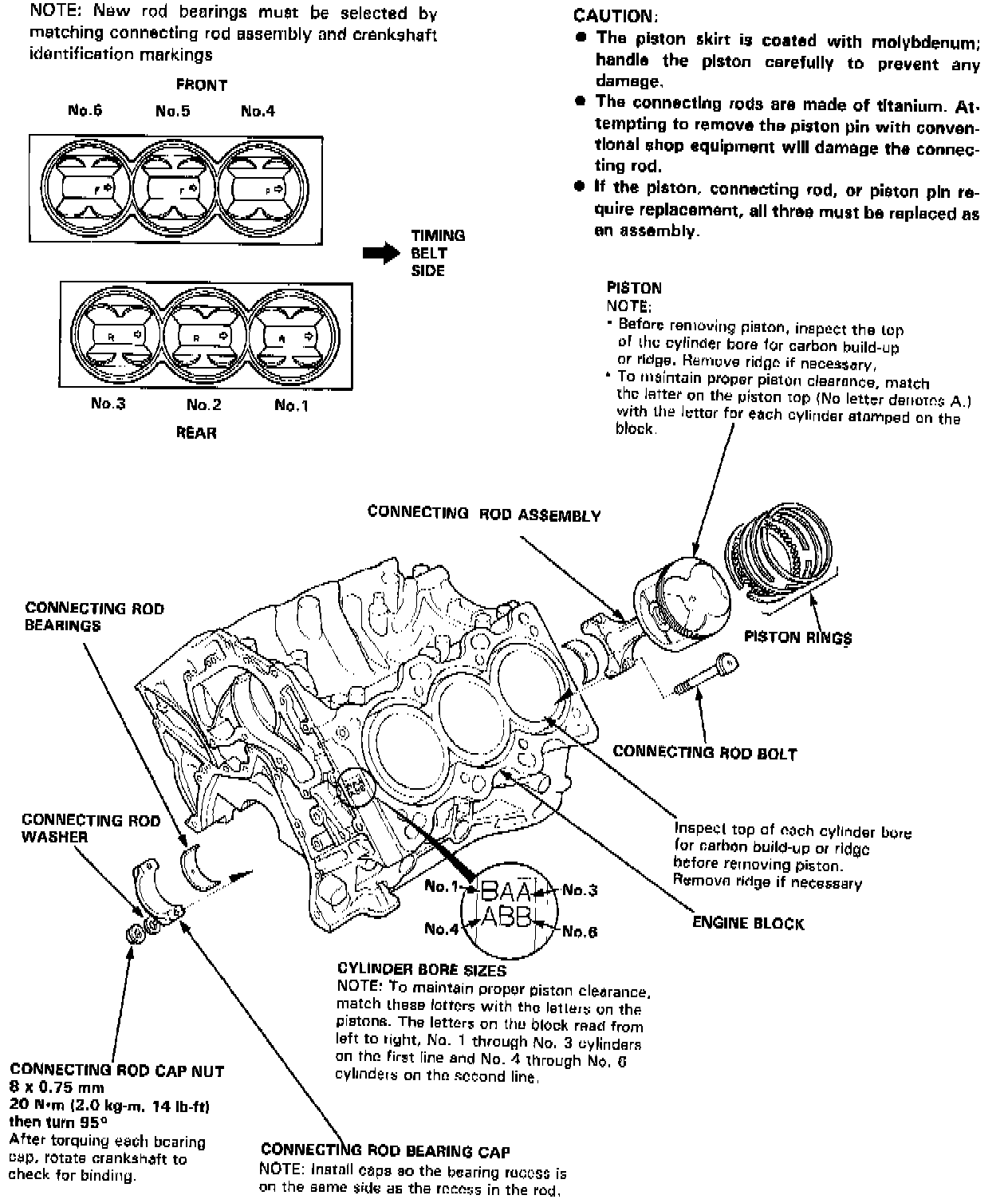

Lower Engine:

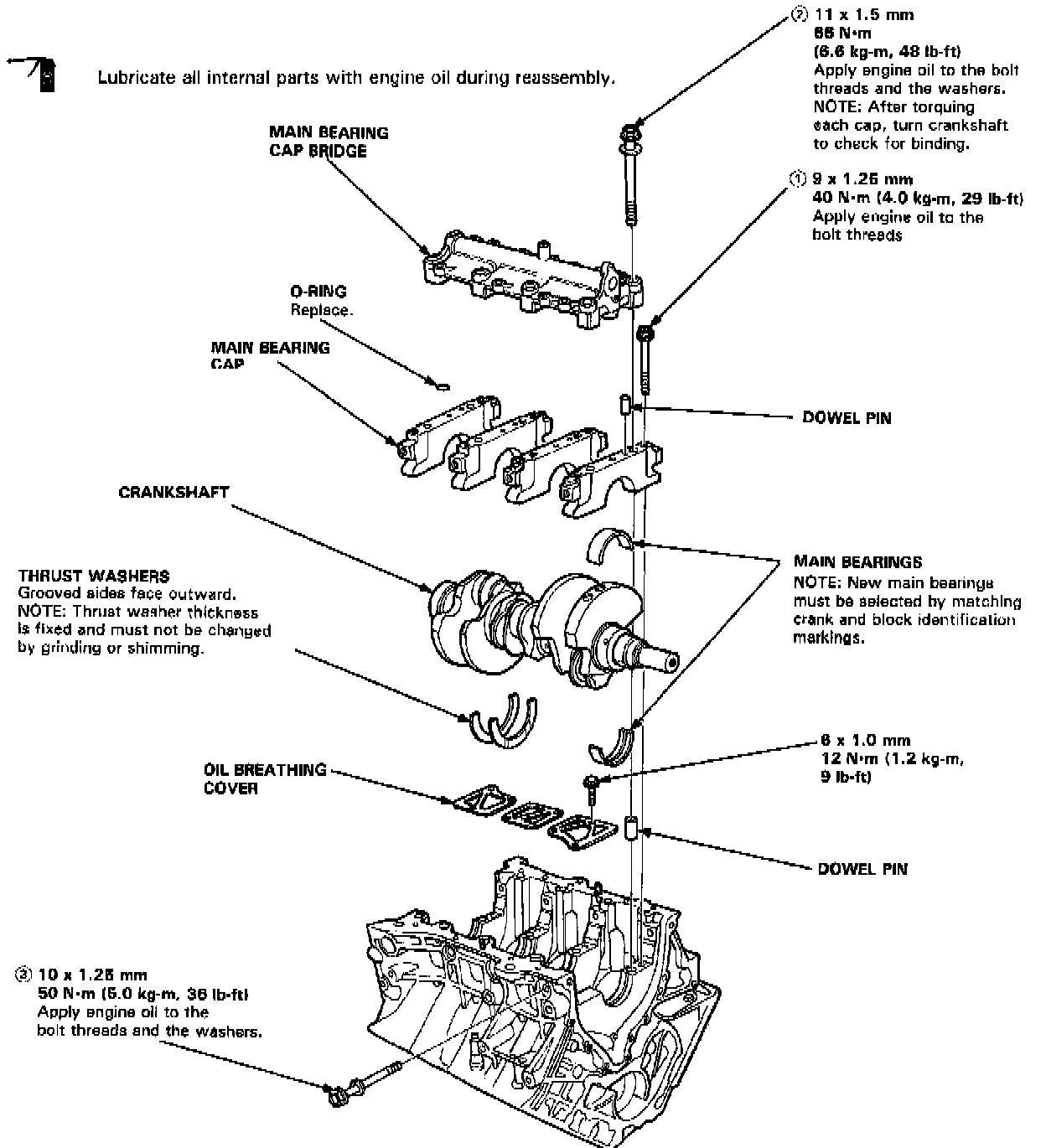

Main Torque Sequence:

Engine Lubrication:

Flywheel (M/T) Torque /Sequence:

Drive Plate (A/T) Torque/Sequence:
