A/C Compressor

A/C Compressor Clutch
First, check for blown fuses: No.21 (10 A), No.4 (15 A).

Part A:





Part B:

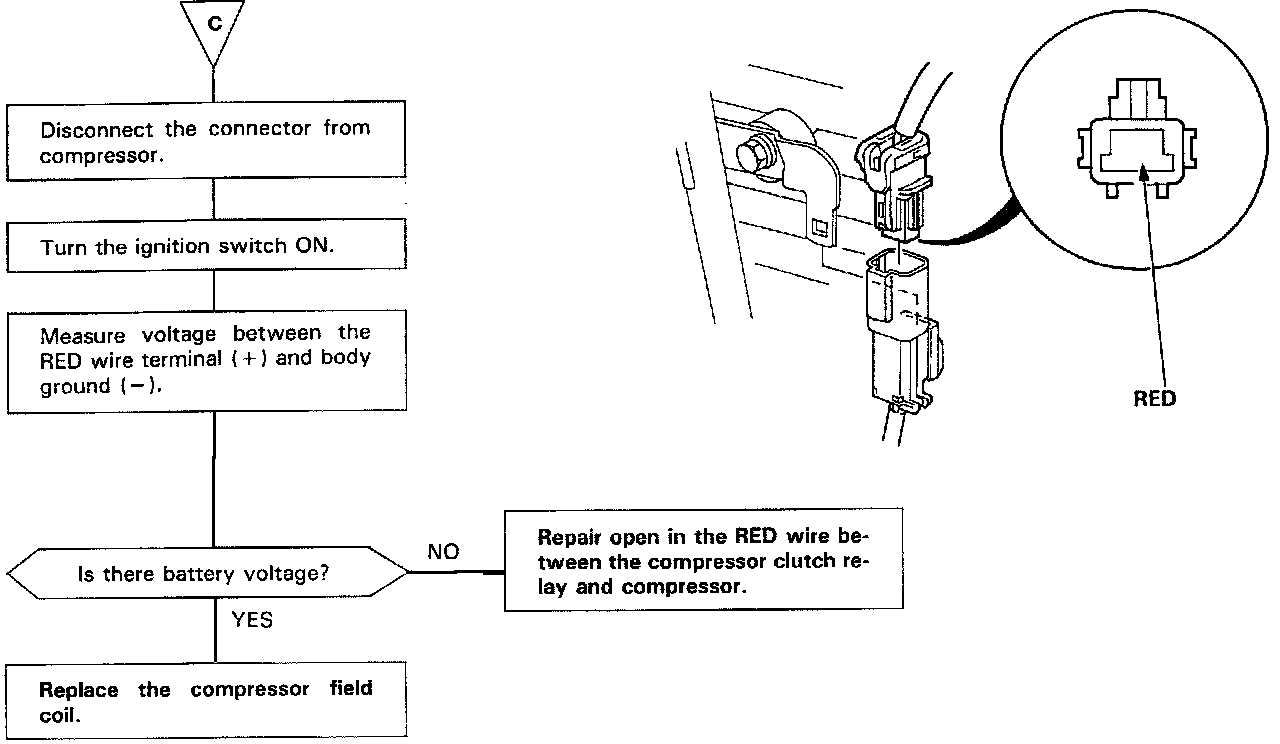

Part C:





Part D:





Part E:





Part F:
