Ambient Temperature Sensor

Ambient Temperature Sensor
Self-diagnosis indicator light B comes on: Indicates a problem in the ambient temperature sensor circuit. Use a digital multimeter (KS-AHM-32-003) to check it.

The ambient temperature sensor is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the temperature outside the car increases.

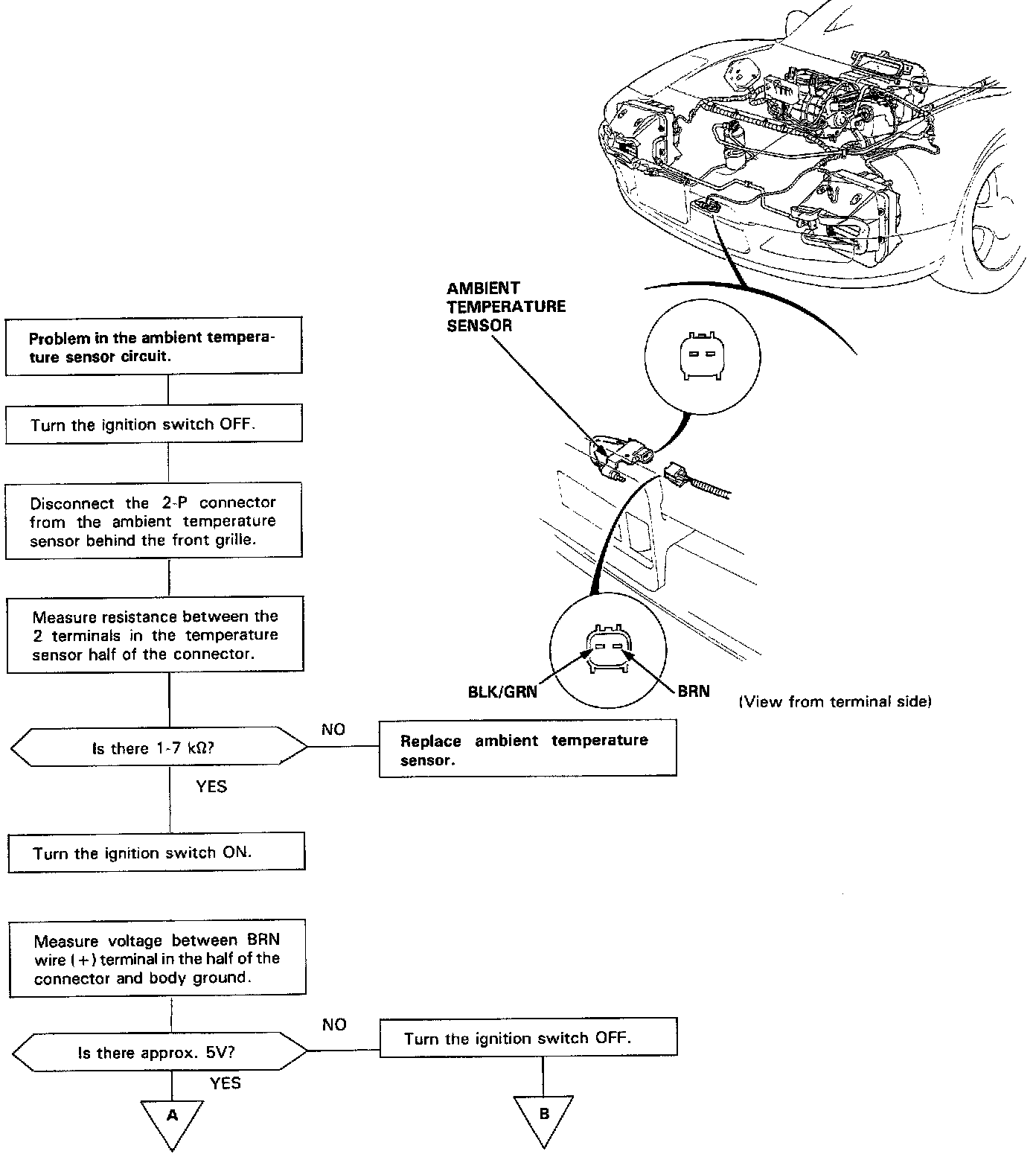

Part A:

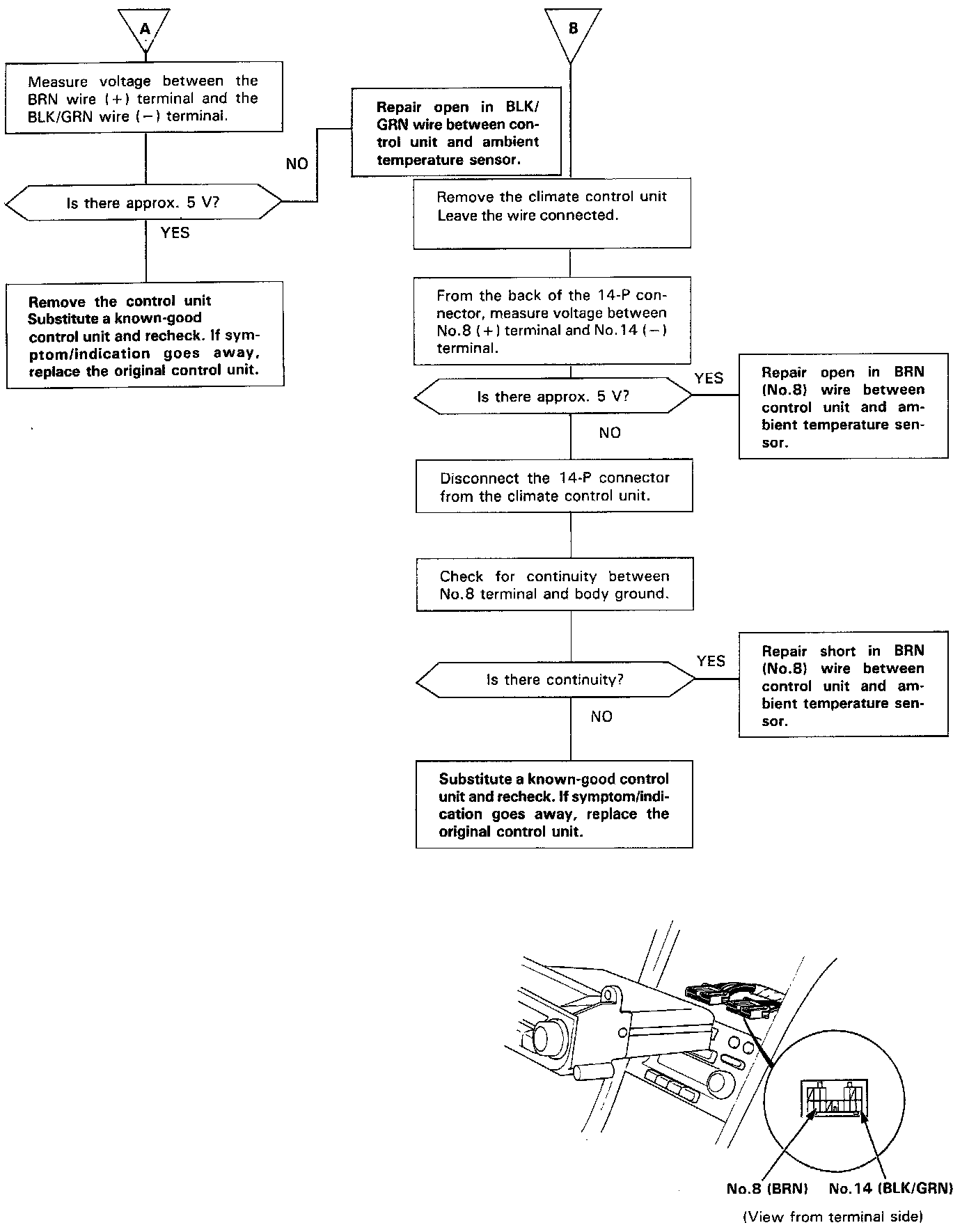

Part B:
