Coolant Temperature Sensor

Coolant Temperature Sensor
Self-diagnosis indicator light D comes on: Indicates a problem in the coolant temperature sensor circuit. Use a digital multimeter IKSAHM-32-003) to check it.

The coolant temperature sensor is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the coolant temperature increases.

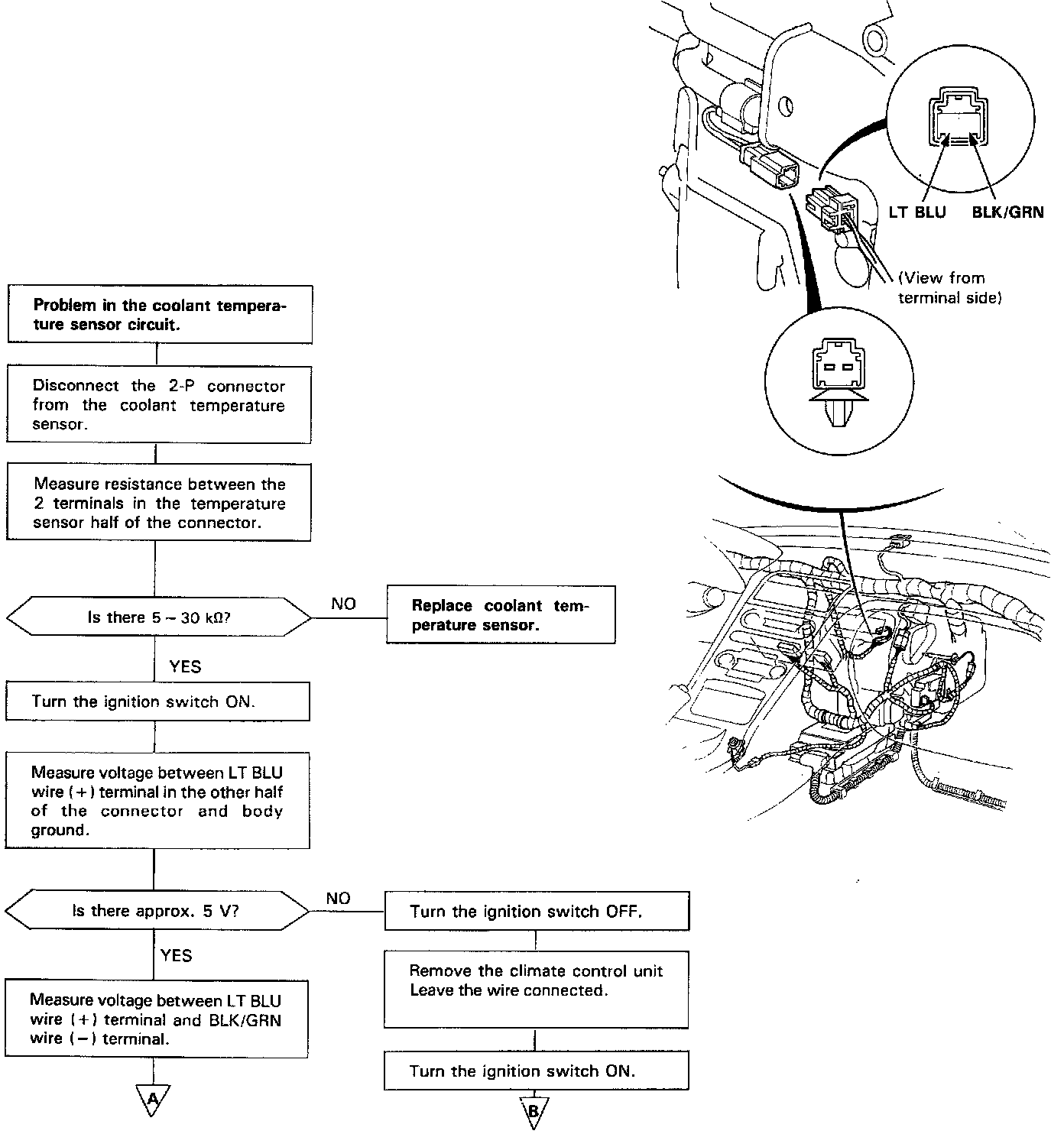

Part A:





Part B:
