Power Distribution

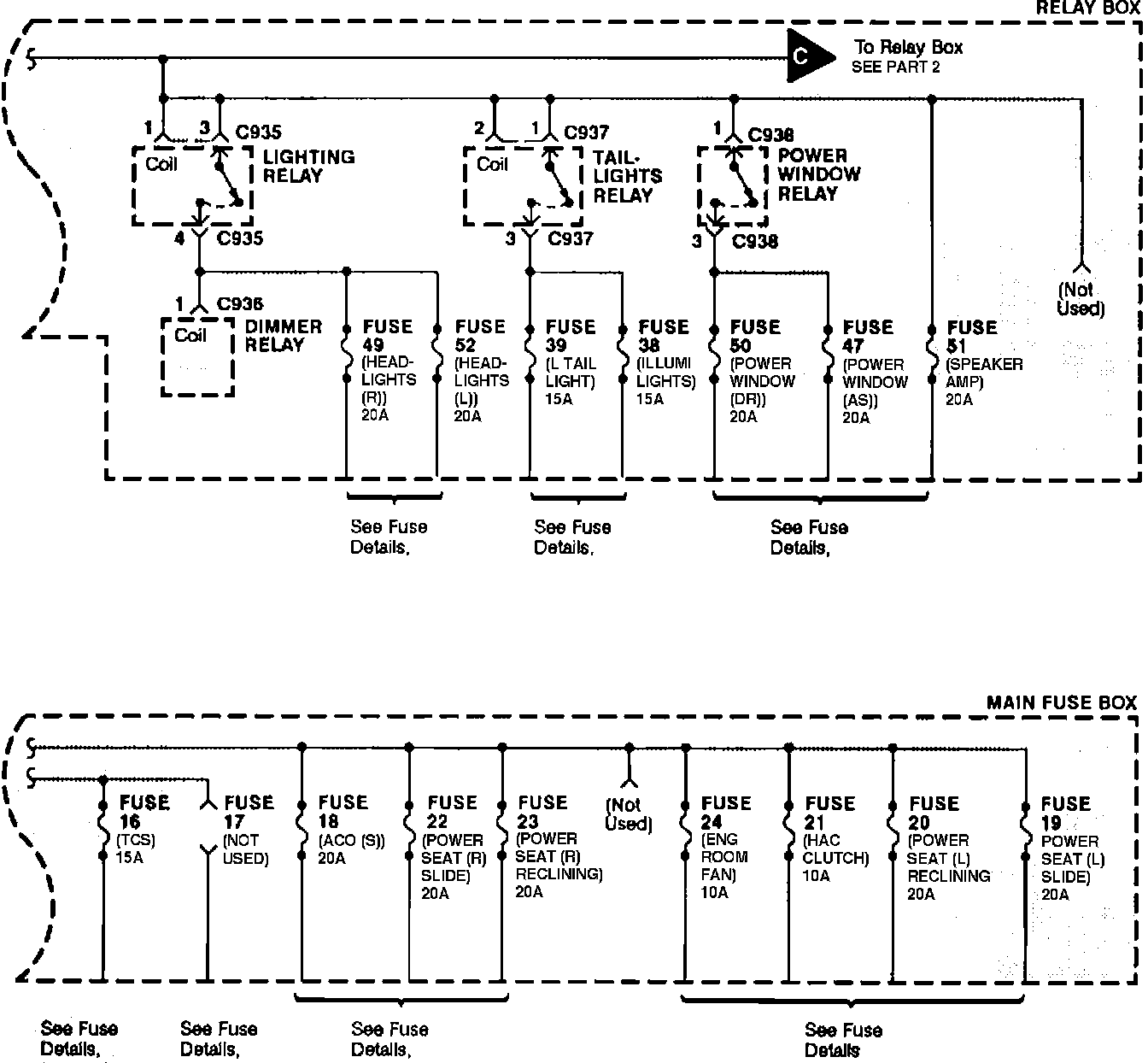

Power Distribution: Relay Box And Battery:

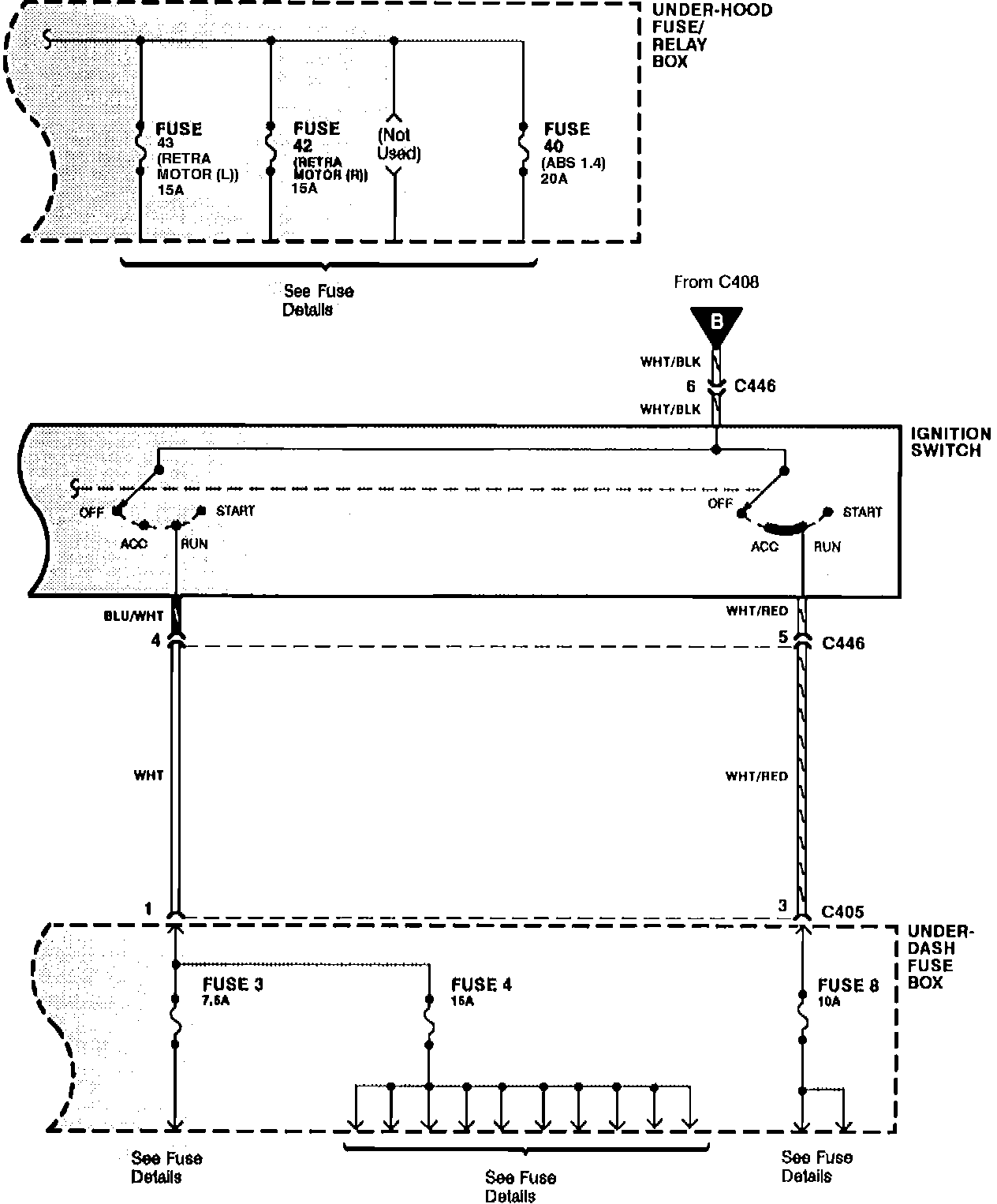

Power Distribution: Relay Box And Ignition Switch:

Power Distribution:

Power Distribution:
