Vacuum and Vapor Hose Diagrams

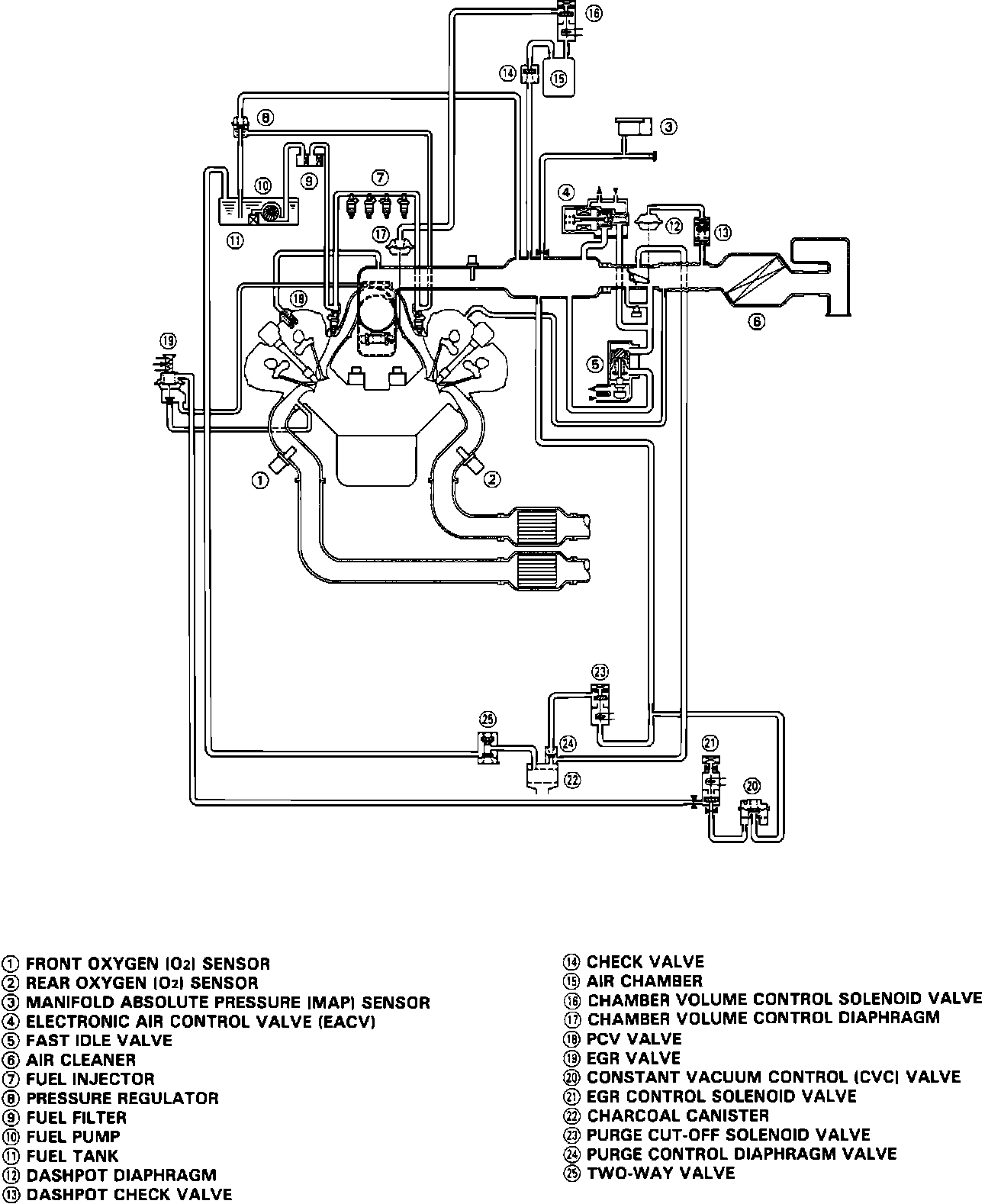

Vacuum Diagram:






VACUUM SCHEMATIC

Engine Vacuum Connections:






ENGINE VACUUM CONNECTIONS

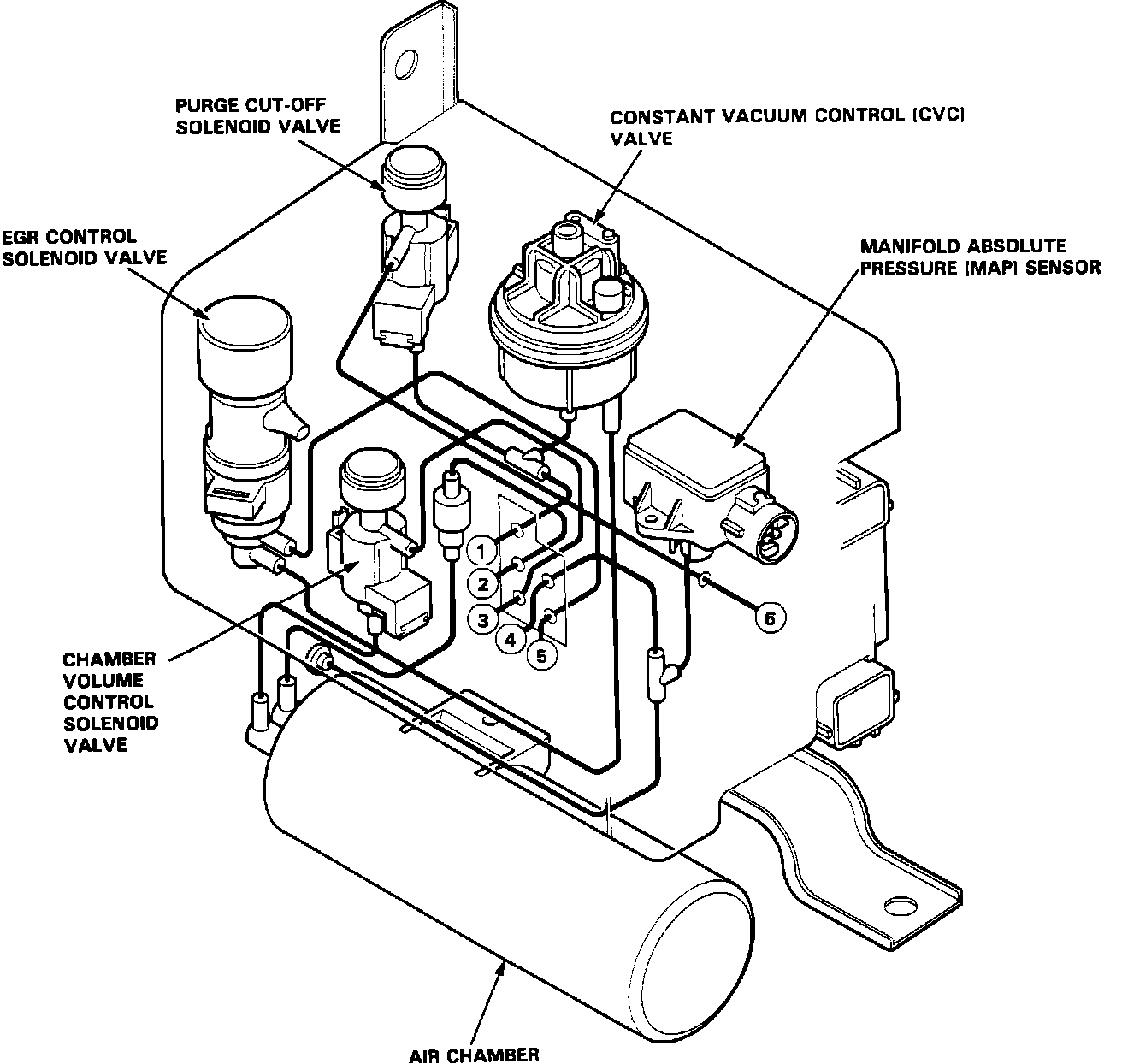

Vacuum Control Box:






VACUUM CONTROL BOX
