A/T Technical Data

MR9A 4-spd A/T, Line Pressure, Stall Speed & Valve Body:

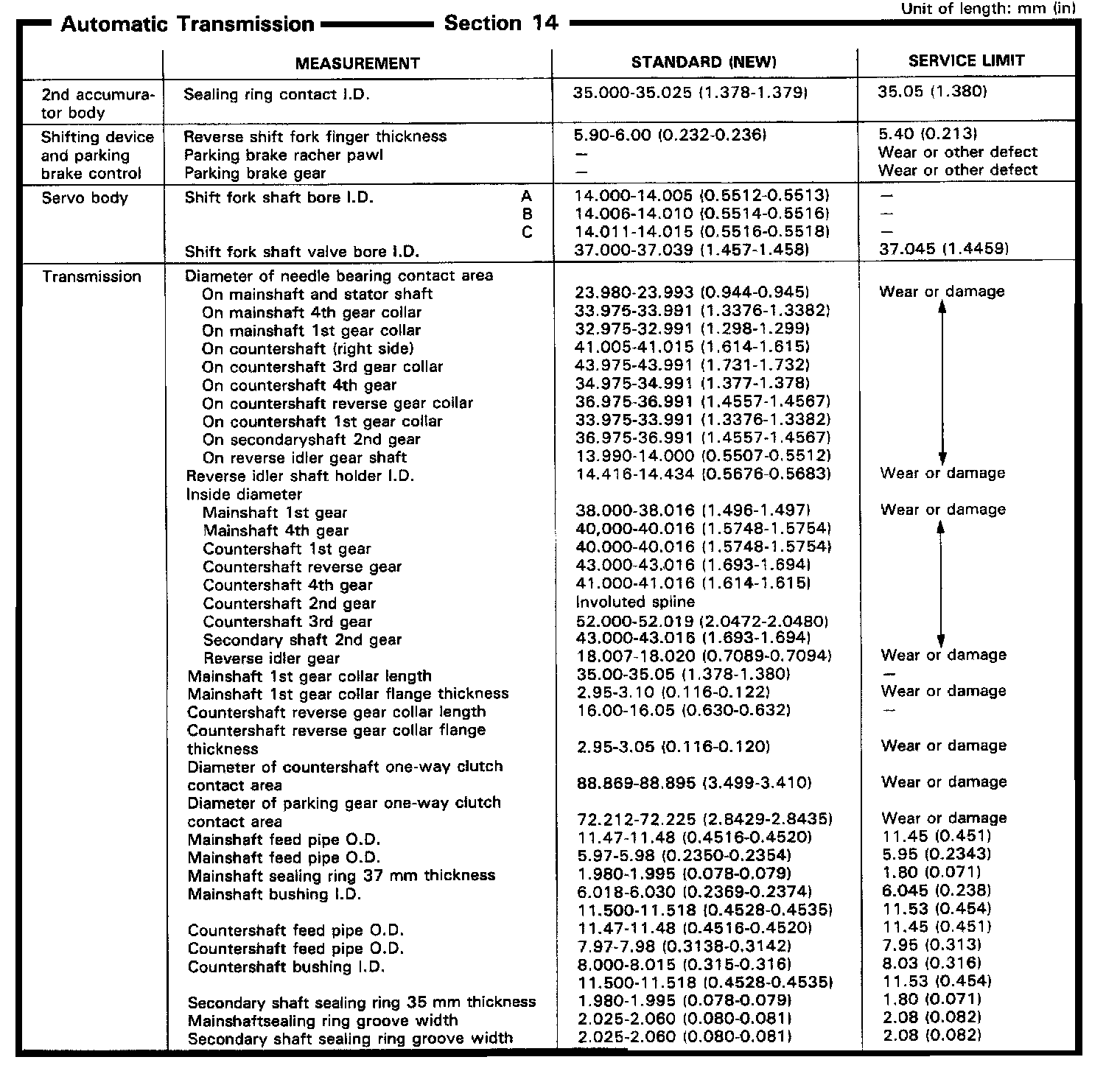

MR9A 4-spd A/T, Accumulator Body, Servo Body & Main/Countershaft:

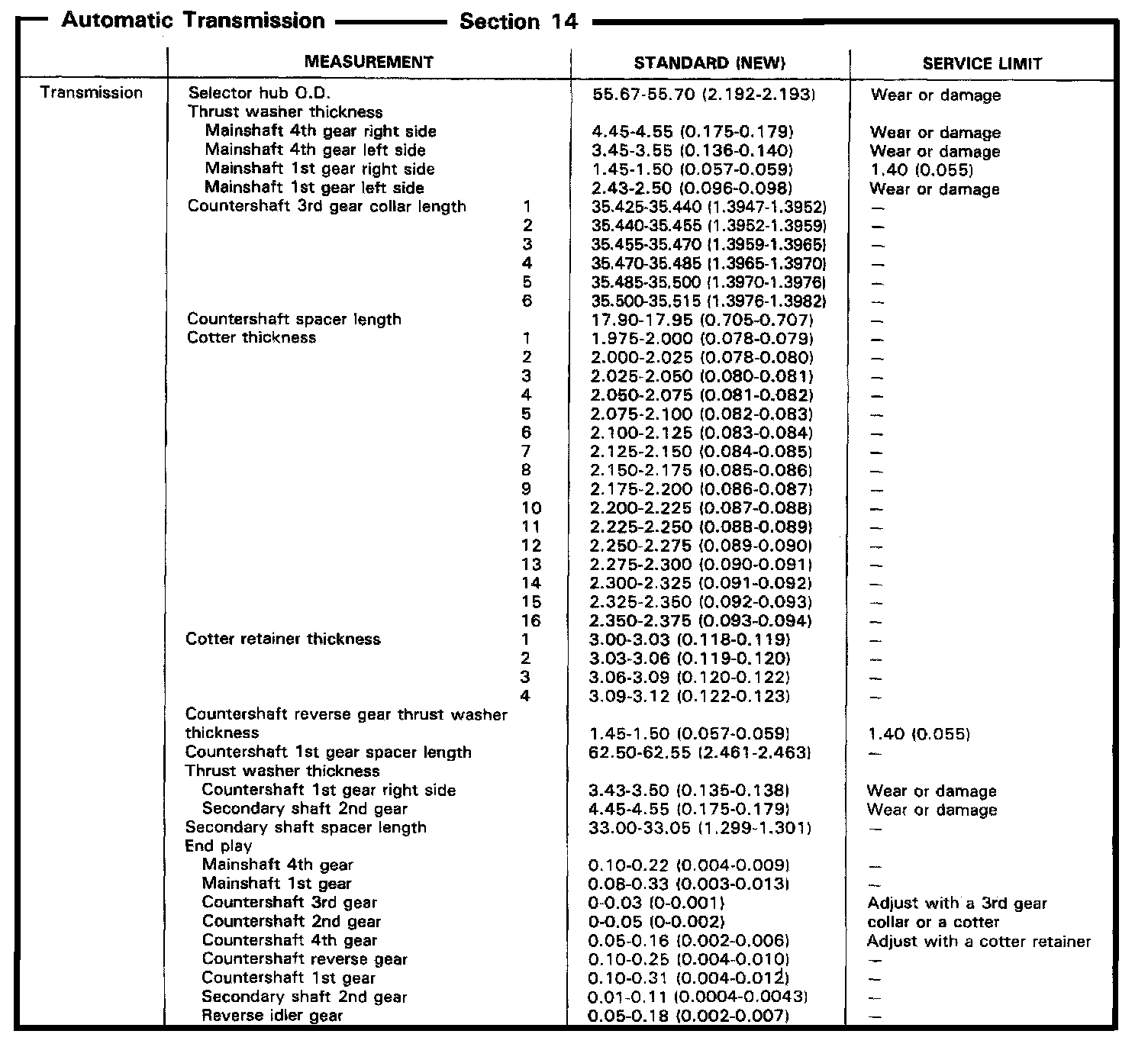

MR9A 4-spd A/T, Mainshaft/Countershaft Measurements:

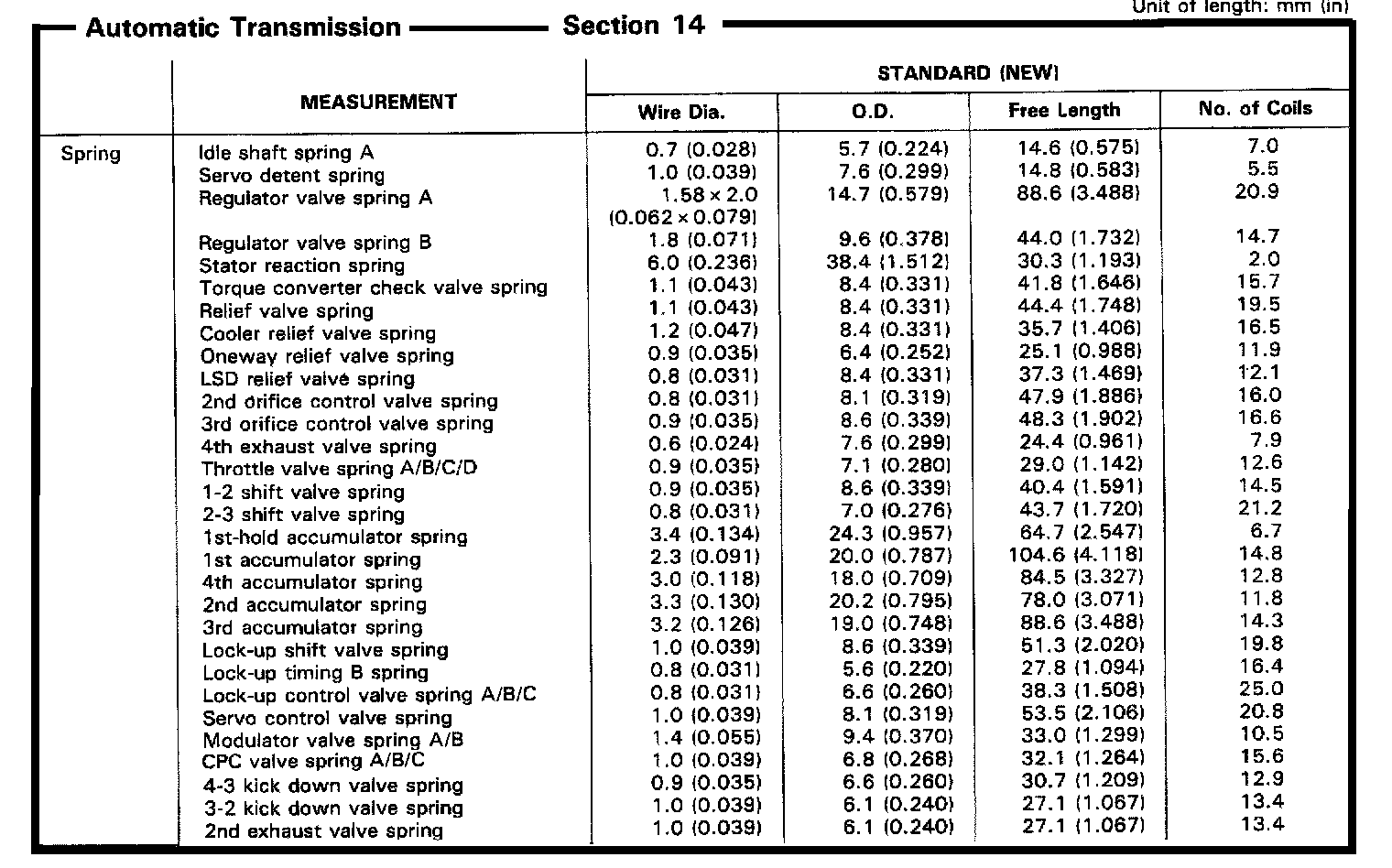

MR9A 4-spd A/T, Spring Measurements:
