Outside Mirror - Vibrations

DATE: May 2, 1995

YEAR: 1994-95

MODEL: INTEGRA 4-D00R

VIN APPLICATION: See VEHICLES AFFECTED

BULLETIN NO.: 95-009

SUBJECT: Outside Mirror Vibrates

PROBLEM: The outside mirror vibrates excessively.

VEHICLES AFFECTED

RS, LS:
1994 - All
1995 - Thru VIN JH4DB7. . .SS006568

GSR:
1994 - All
1995 - Thru VIN JH4DB8. . .SS001822

CORRECTIVE ACTION

Replace the outside mirror with the new assembly listed under PARTS INFORMATION.

1. Remove the inner door handle, armrest pocket, and door panel. Refer to section 20 of the service manual.

2. Disconnect the electrical connector for the mirror.

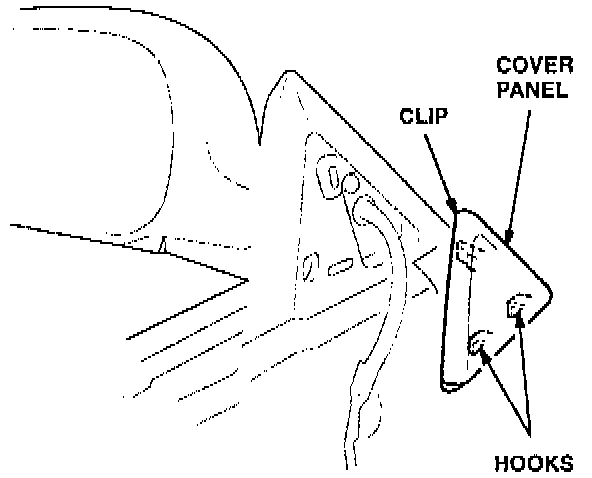

3. Use a small flat tip screwdriver to remove the mirror inner cover panel. Wrap the tip of the screwdriver with tape so you do not scratch the cover panel.




4. Disconnect the harness clip from the inner door panel. Remove the mounting screws, and remove the mirror.




5. Install the new mirror with the existing mounting screws.

6. Clip the harness to the inner door panel, and connect the electrical connector.

7. Reinstall the inner cover panel, door panel, armrest pocket, and inner door handle.

8. Test the mirror's operation.

PARTS INFORMATION



Outside mirror

WARRANTY CLAIM INFORMATION
In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Technical Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 820100 - replace one mirror
A - replace both mirrors

Flat rate time: 0.3 hour per side

Failed P/N: Use the P/N of the new mirror, with the last number changed from a 2 to a 1. For example, if the new mirror's P/N is 76250-STB-A22ZE, the failed P/N is 76250-ST8-A21ZE.

Defect code: 045

Contention code: B02
