Cellular Phone
Cellular Phone

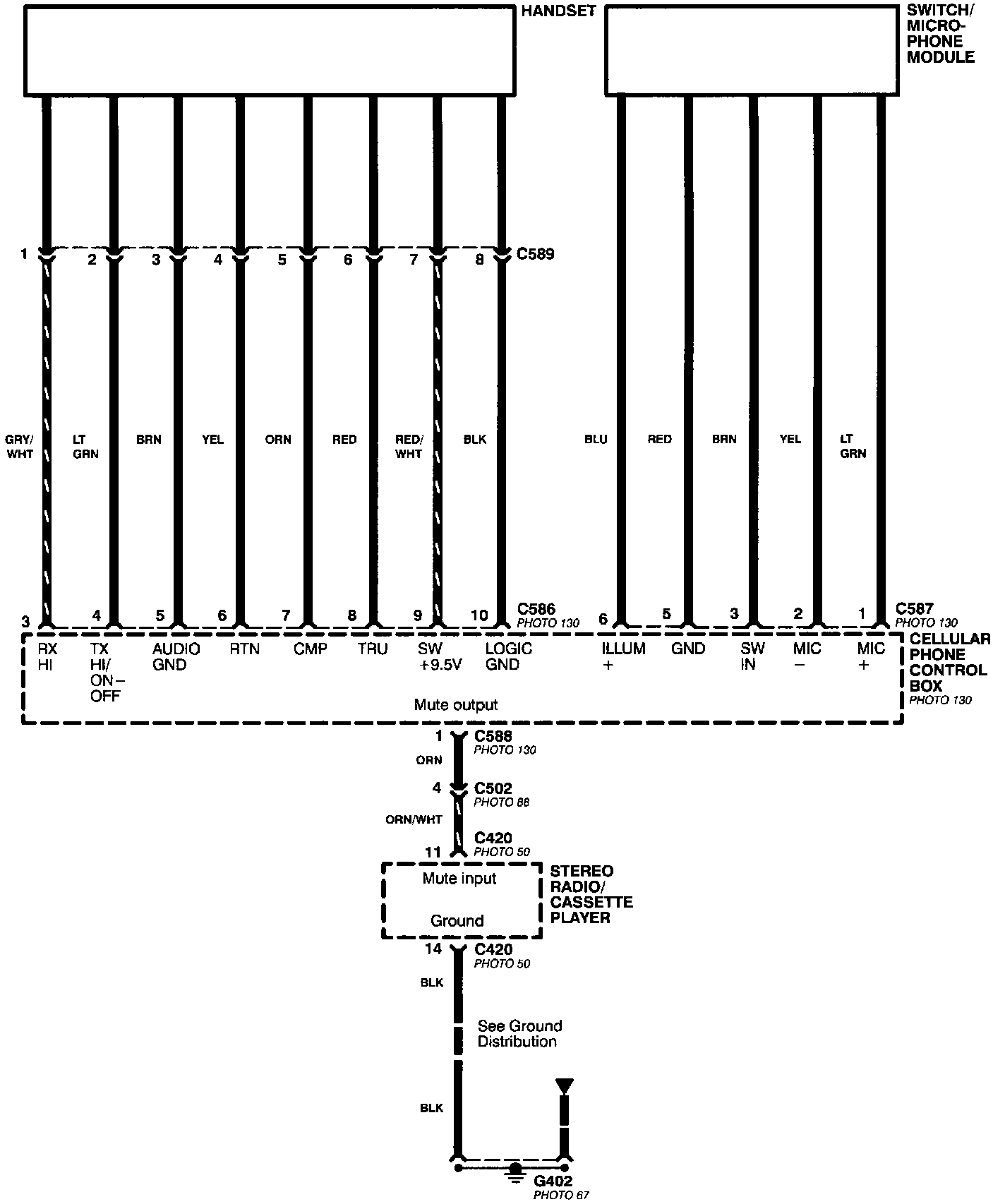

Cellular Phone (Part 1 Of 5):

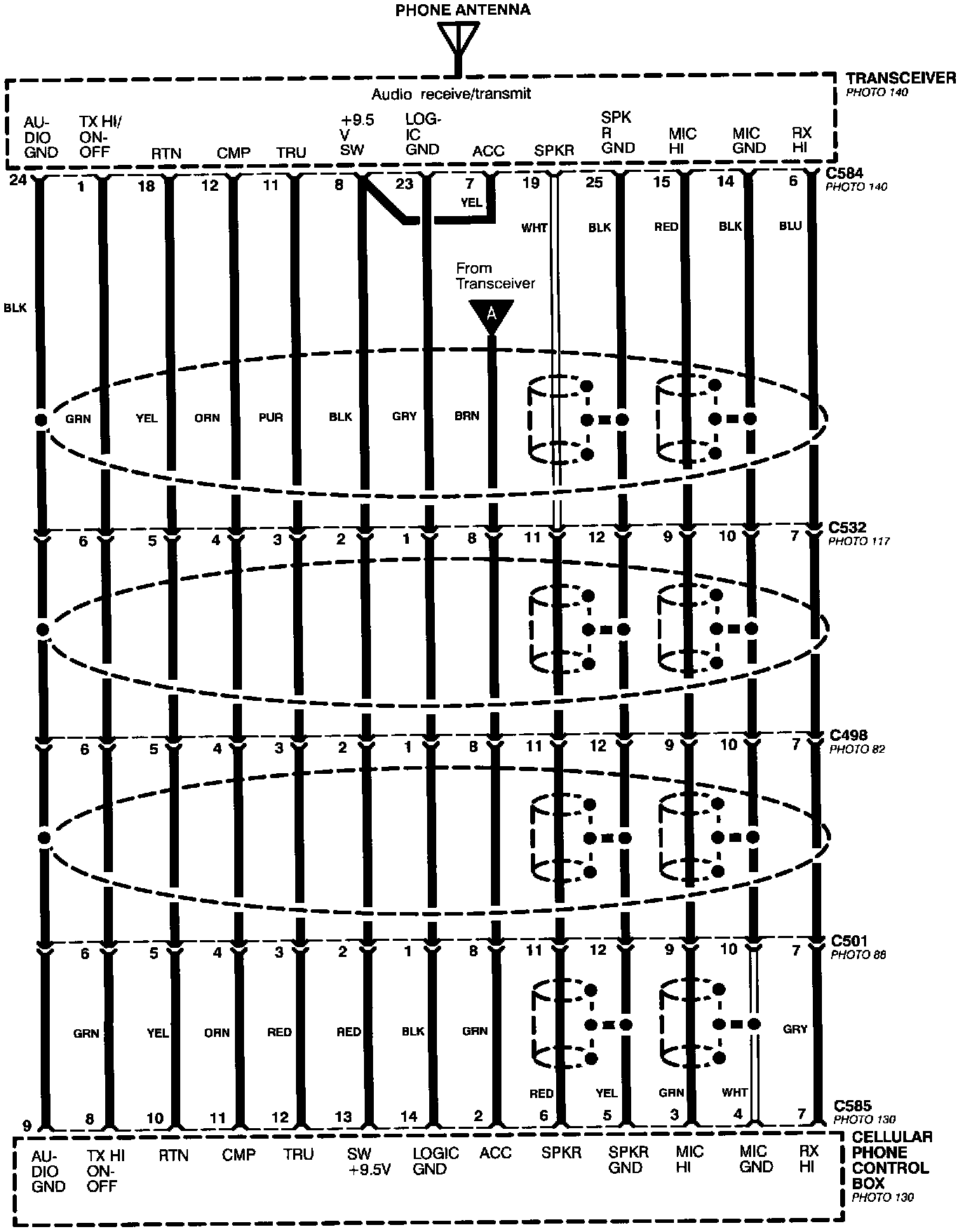

Cellular Phone (Part 2 Of 5):
Cellular Phone (Part 3 Of 5):
Cellular Phone (Part 4 Of 5):
Cellular Phone (Part 5 Of 5):
