Variable Induction System: Description and Operation

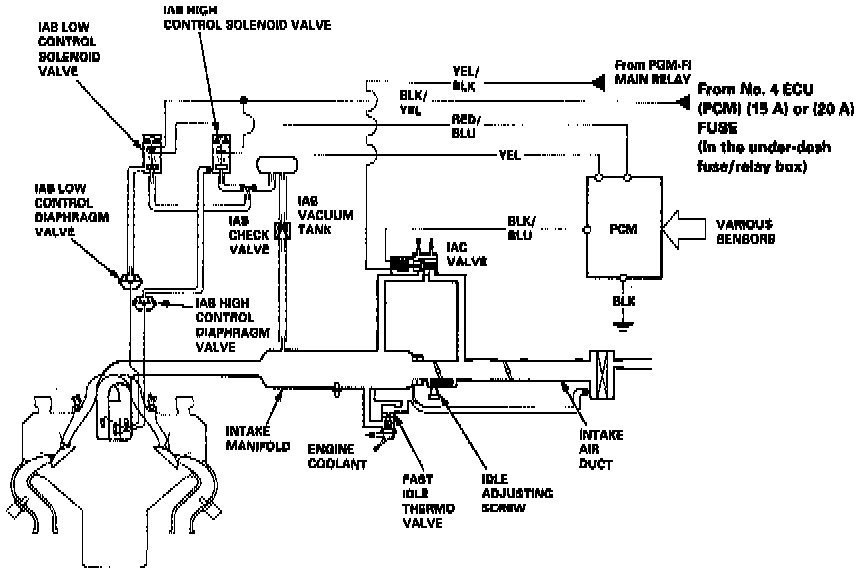

Intake Air Bypass (IAB) Control System

Description

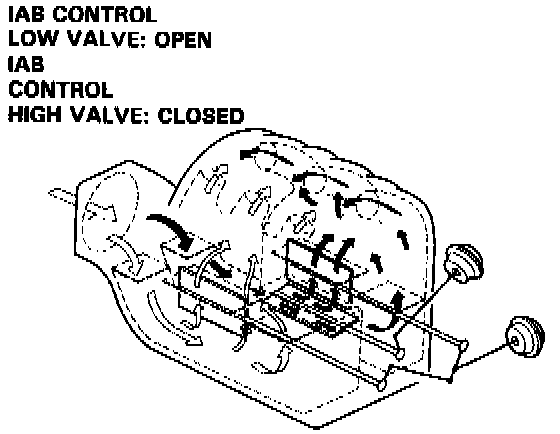

Satisfactory power performance is achieved by closing and opening the intake air bypass (IAB) control valves. High torque at low rpm is achieved when the valves are closed, whereas high power at high rpm is achieved when the valves are opened.
