Sedan

Interior Trim

Replacement

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

NOTE: Take care not to bend or scratch the trim and panels.

Sedan

Rear pillar trim panel/Rear shelf trim panel/Rear shelf removal;

1. Remove both seat-back side bolsters.

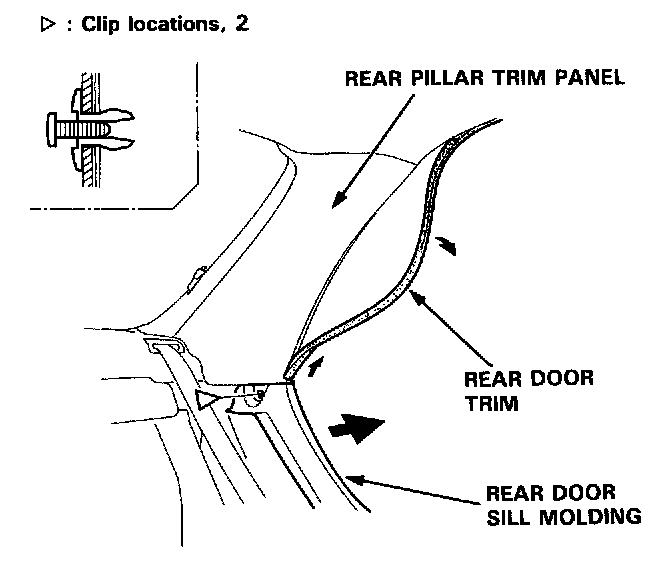

2. Remove the upper portion of the rear door sill molding, then pull the rear door trim away on each side.

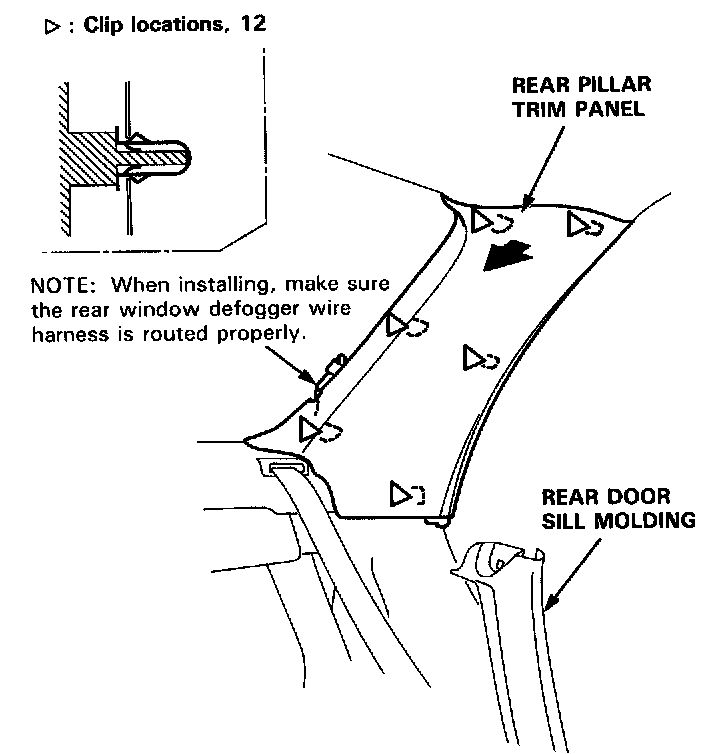

3. Remove both rear pillar trim panels.




4. Remove the rear shelf trim panel.

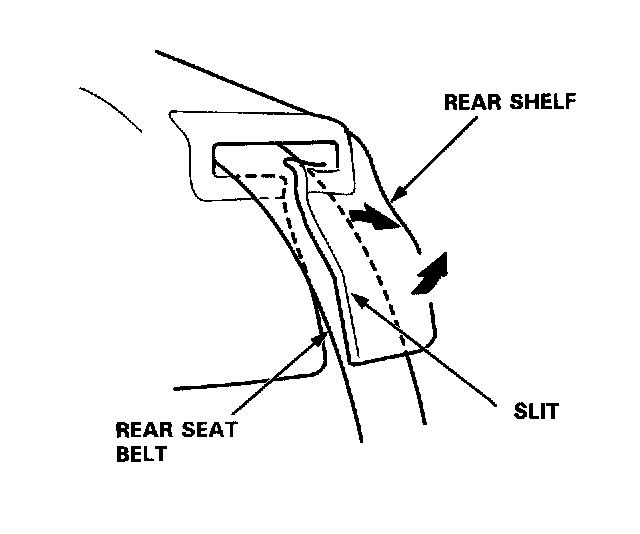

5. Slip the rear seat belt through the slit in the rear shelf.
6. Remove the seat lock cover and high mount brake light.

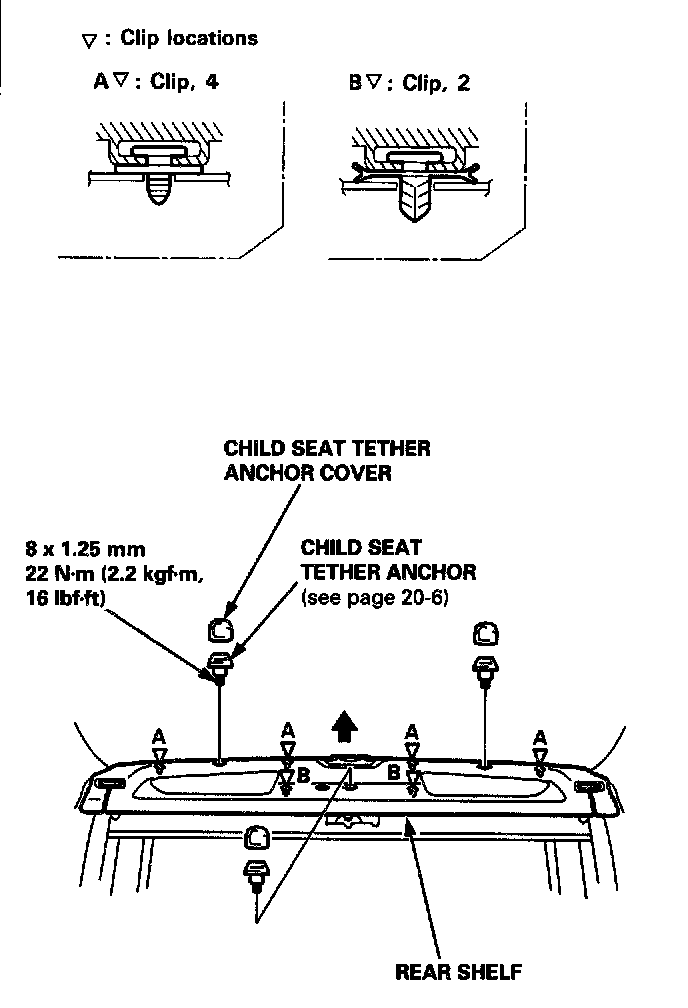

7. Remove the child seat tether anchors, and remove the rear shelf.

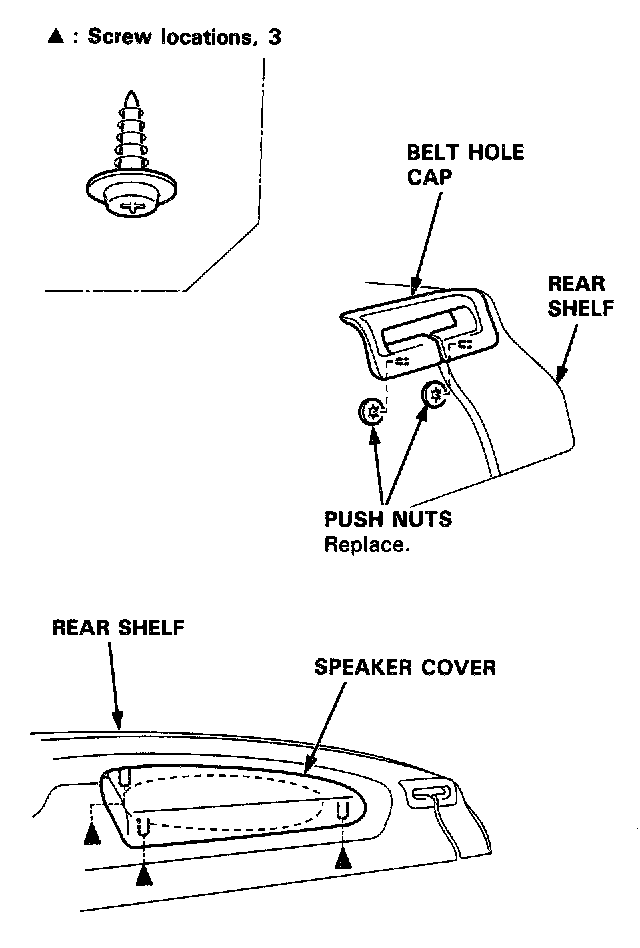

8. If necessary, remove the belt hole cap and speaker cover from the rear shelf.
9. Installation is the reverse of the removal procedure.

NOTE:
- If necessary, replace any damaged clips.
- When installing the rear shelf, make sure there are no twists or kinks in the rear seat belt.
- Make sure the child seat tether anchors are installed securely.
