A/T Removal and Installation

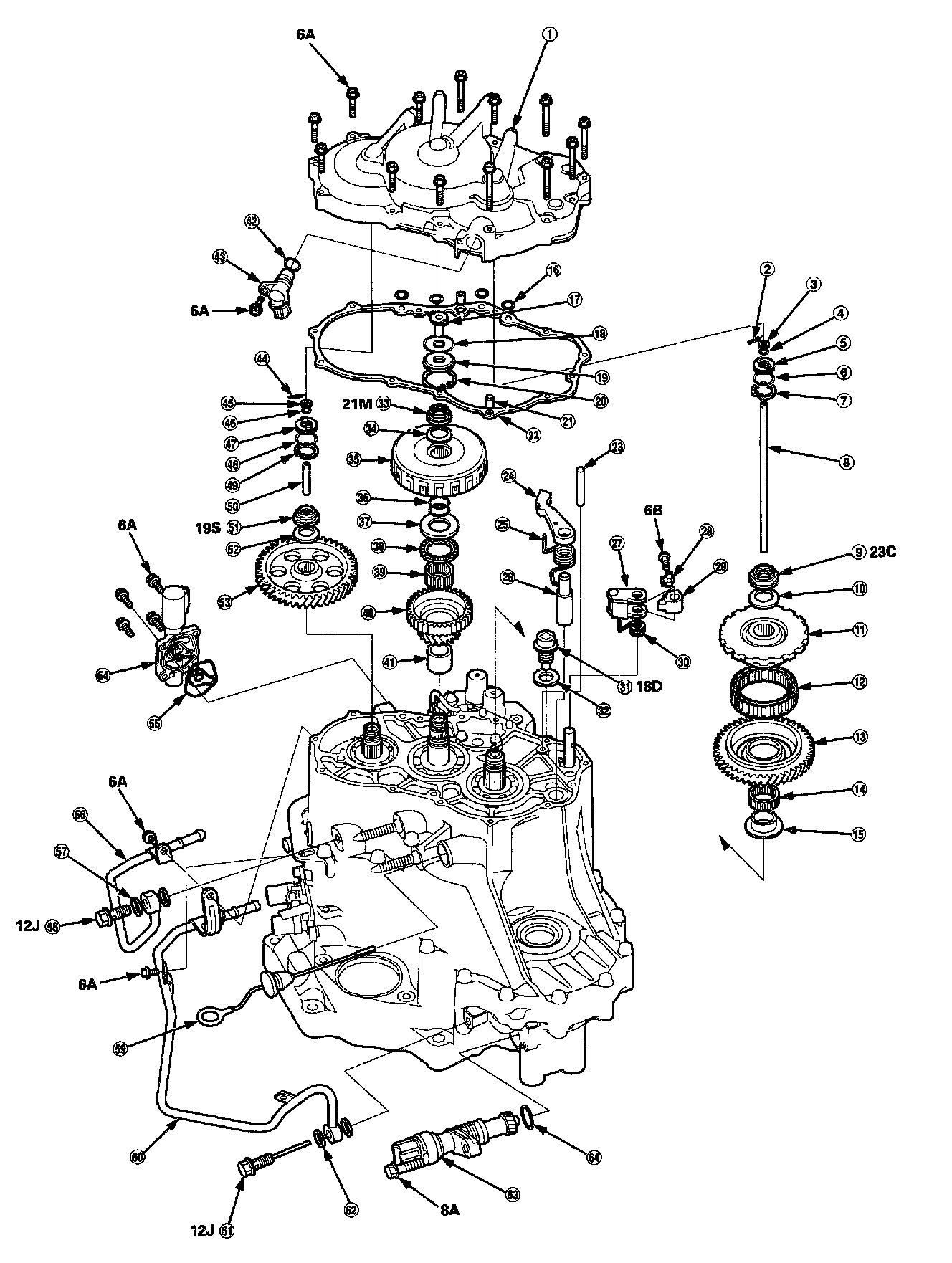

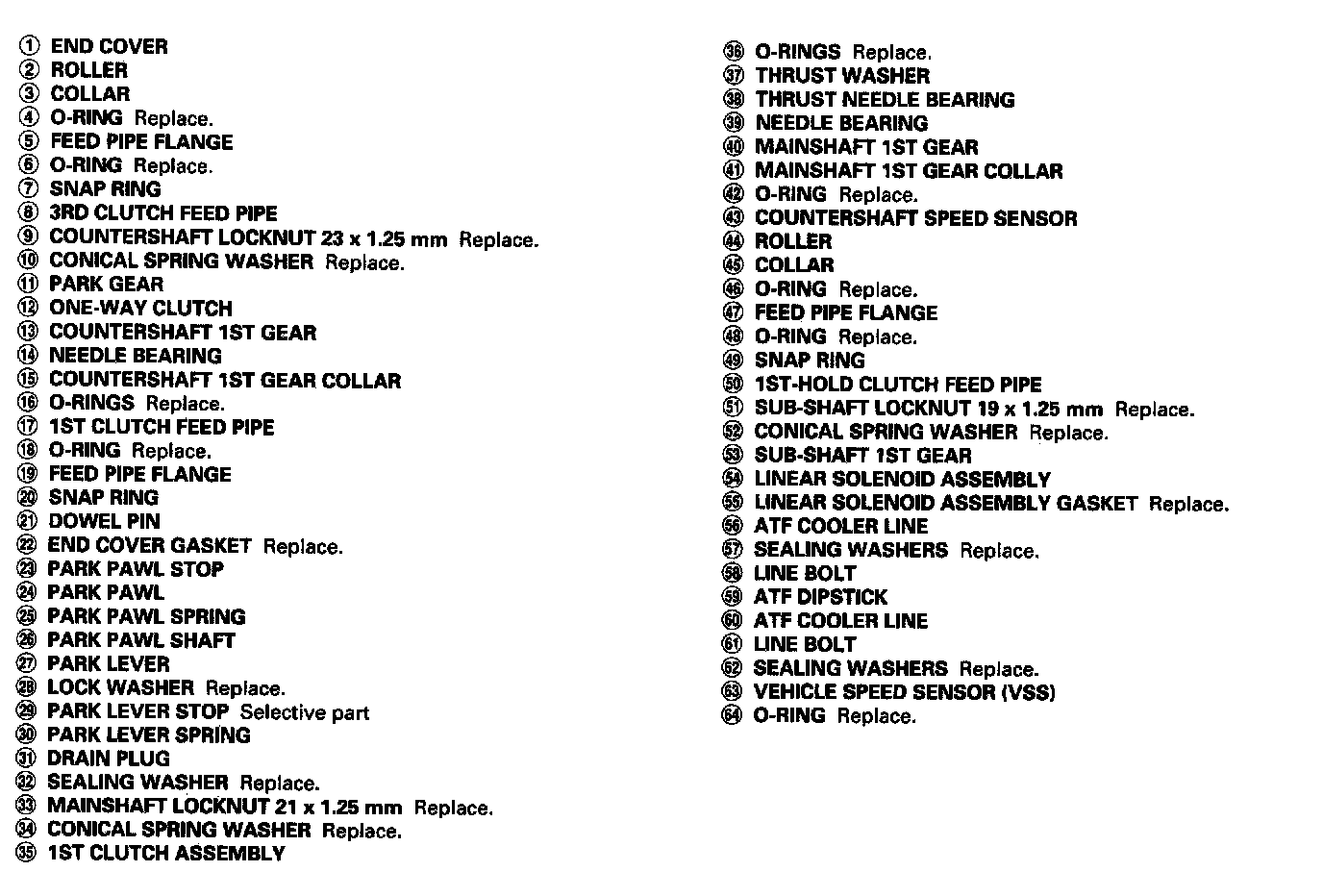

End Cover/Transmission





Part 1 of 2





Part 2 of 2





TORQUE SPECIFICATIONS

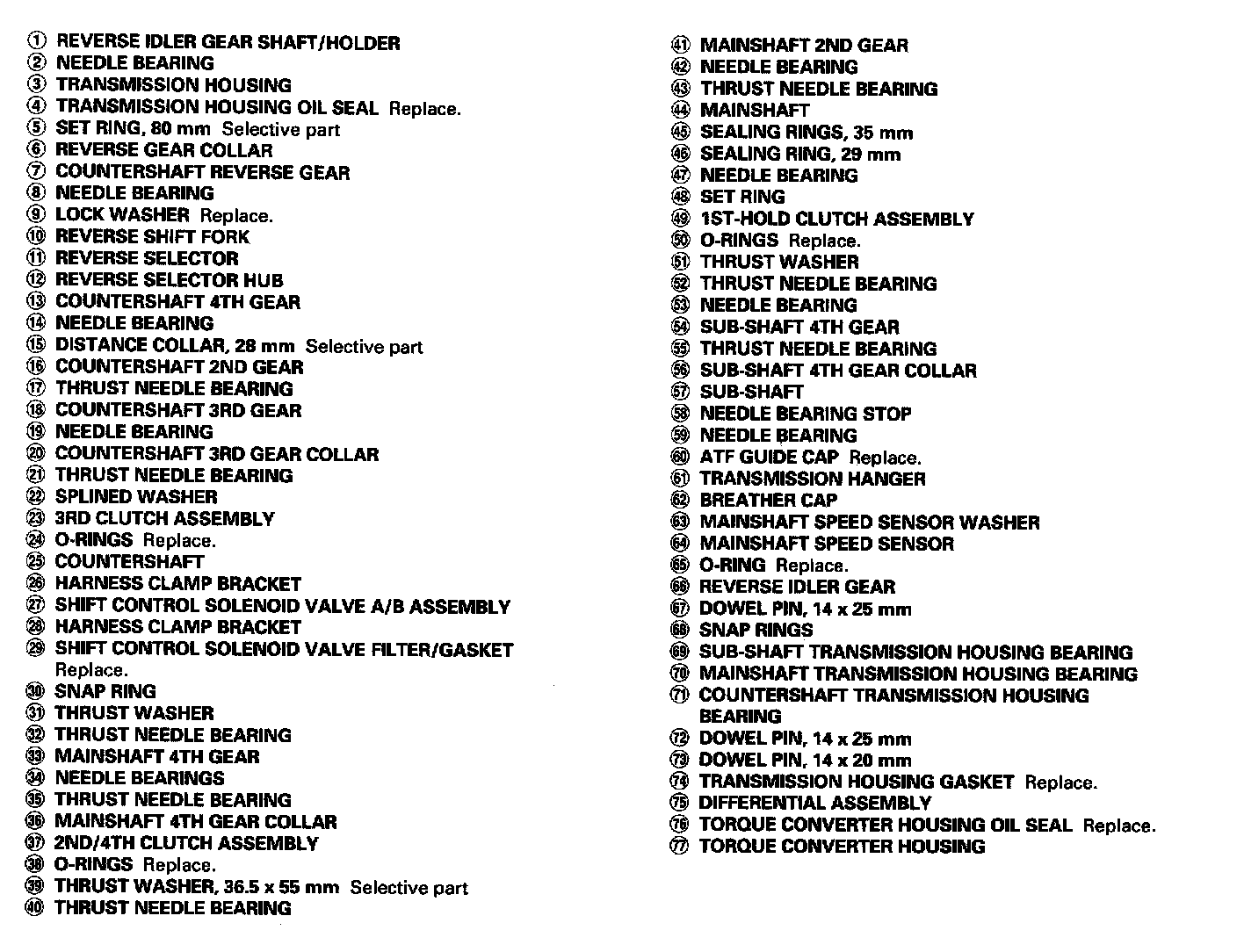

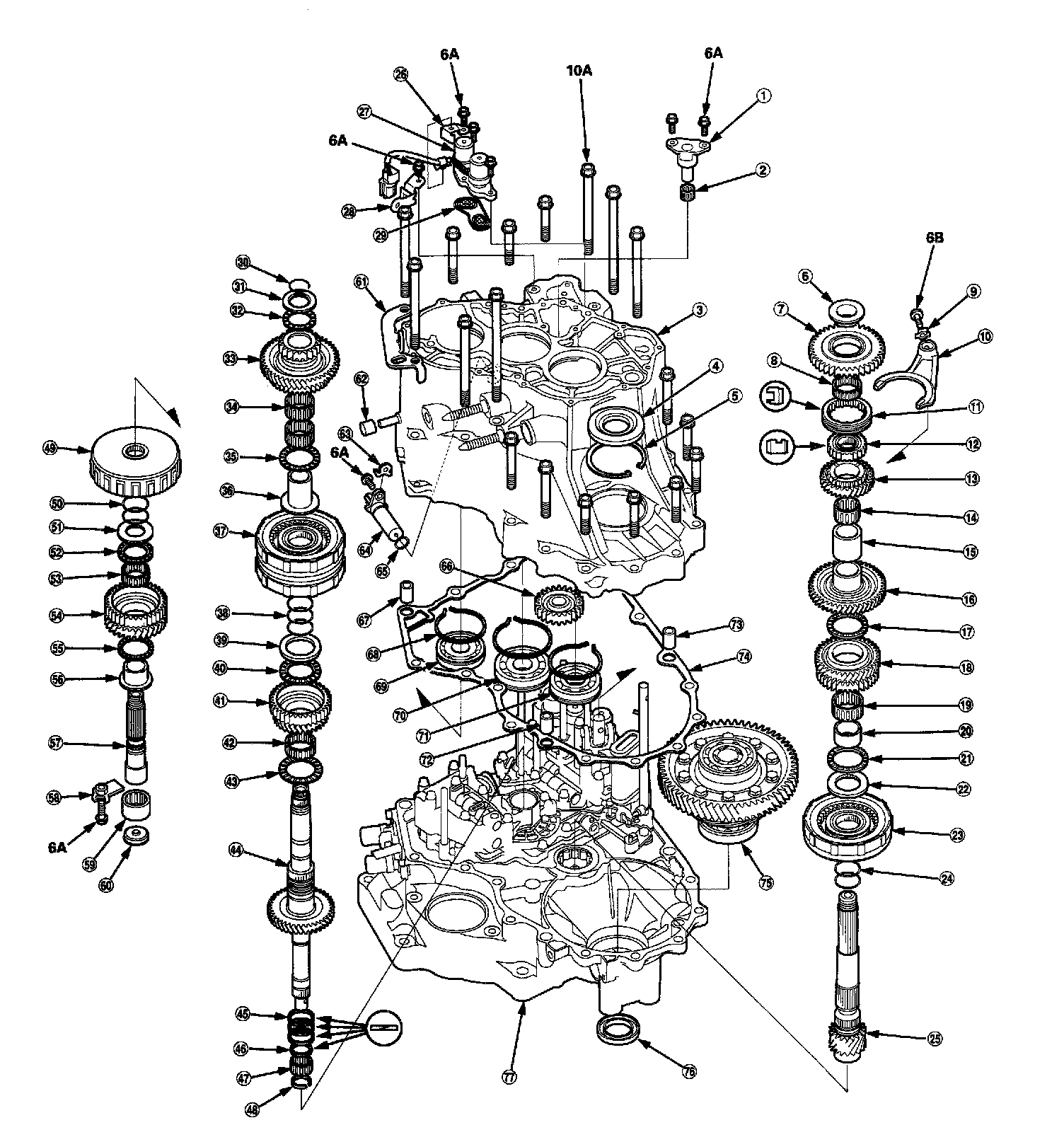

Transmission Housing





Part 1 of 2





Part 2 of 2





TORQUE SPECIFICATIONS

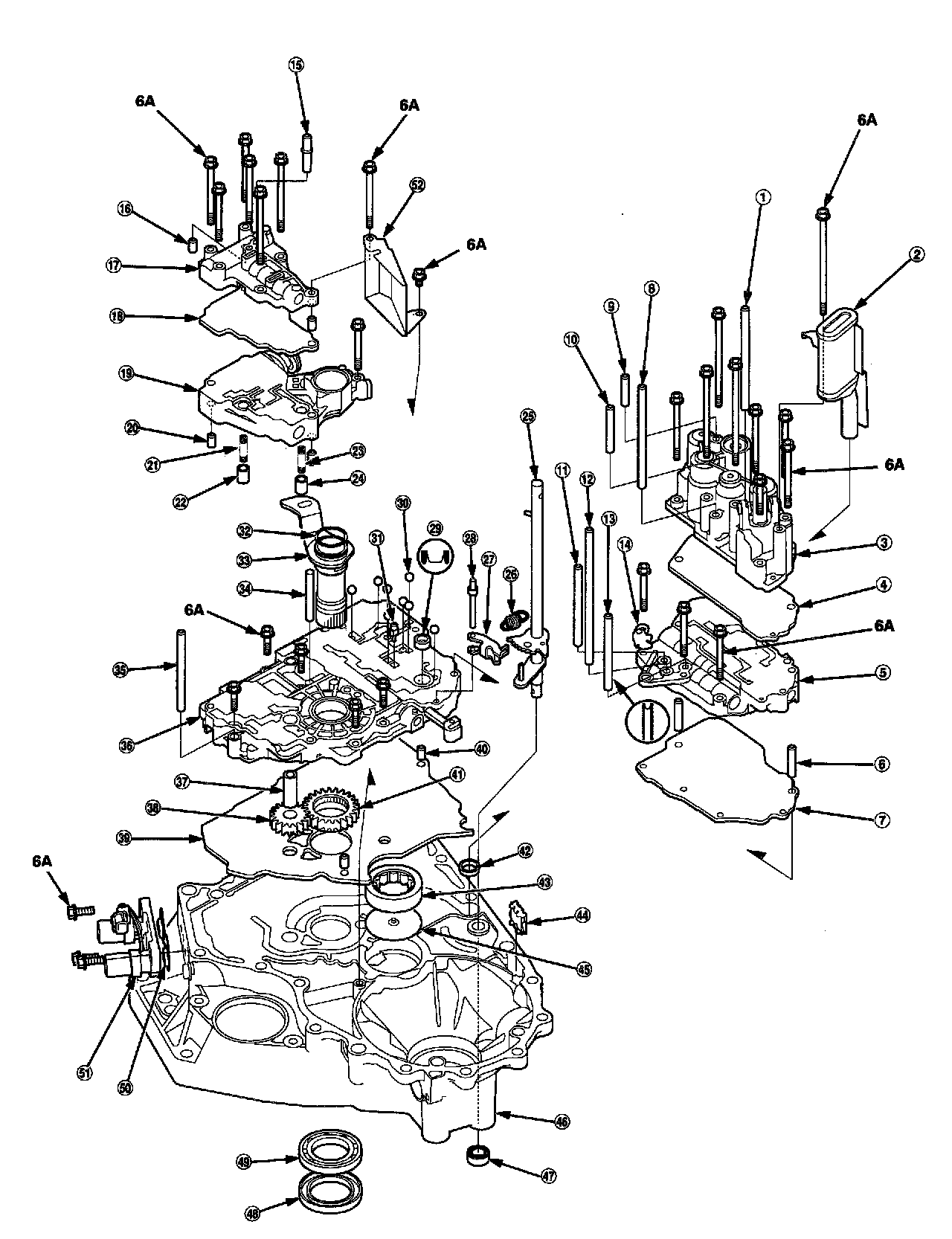

Torque Converter Housing/Valve Body





Part 1 of 2





Part 2 of 2





TORQUE SPECIFICATIONS
