Programmed Fuel Injection System (PGM-FI)

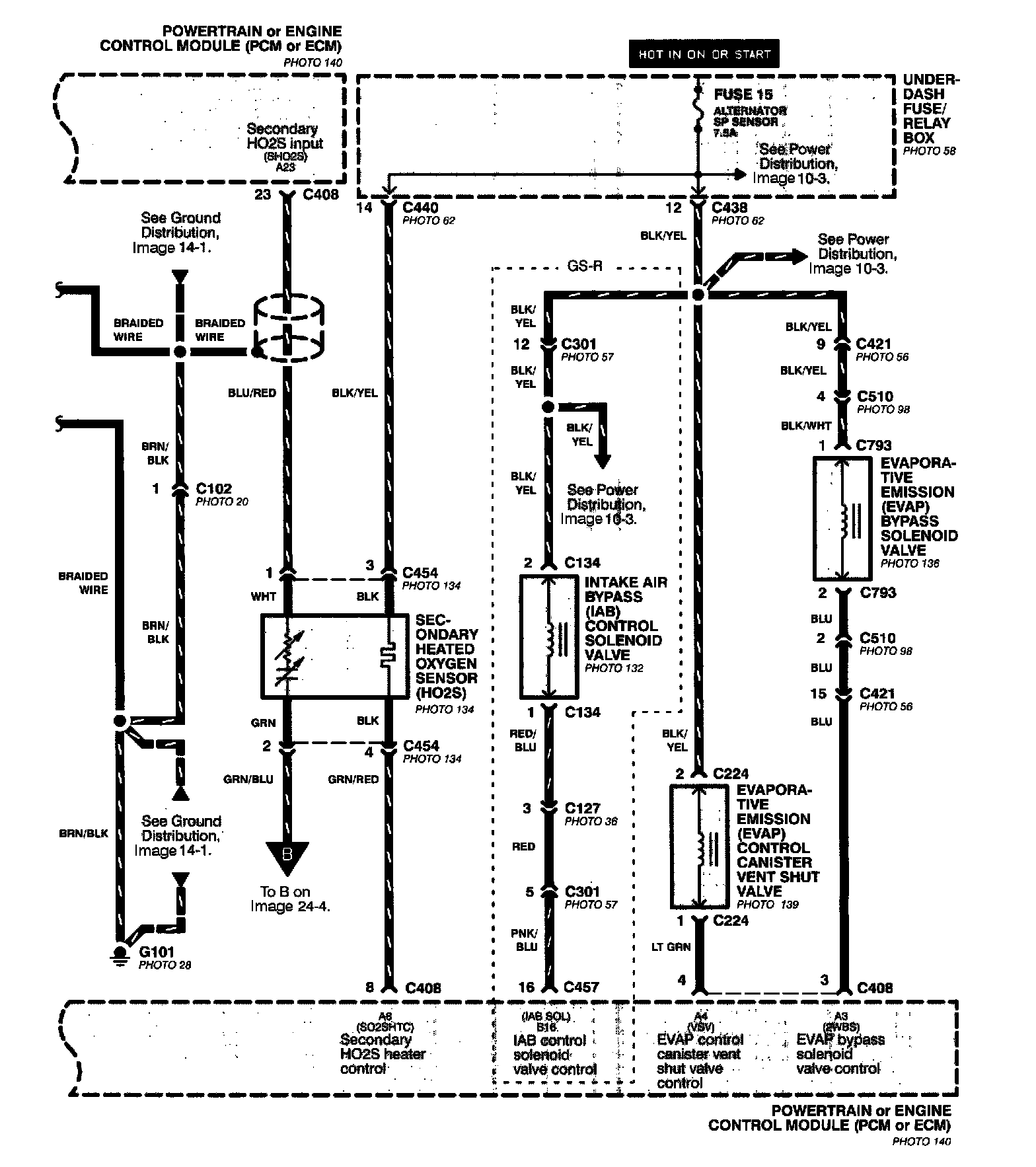

PGM-FI Image 24:

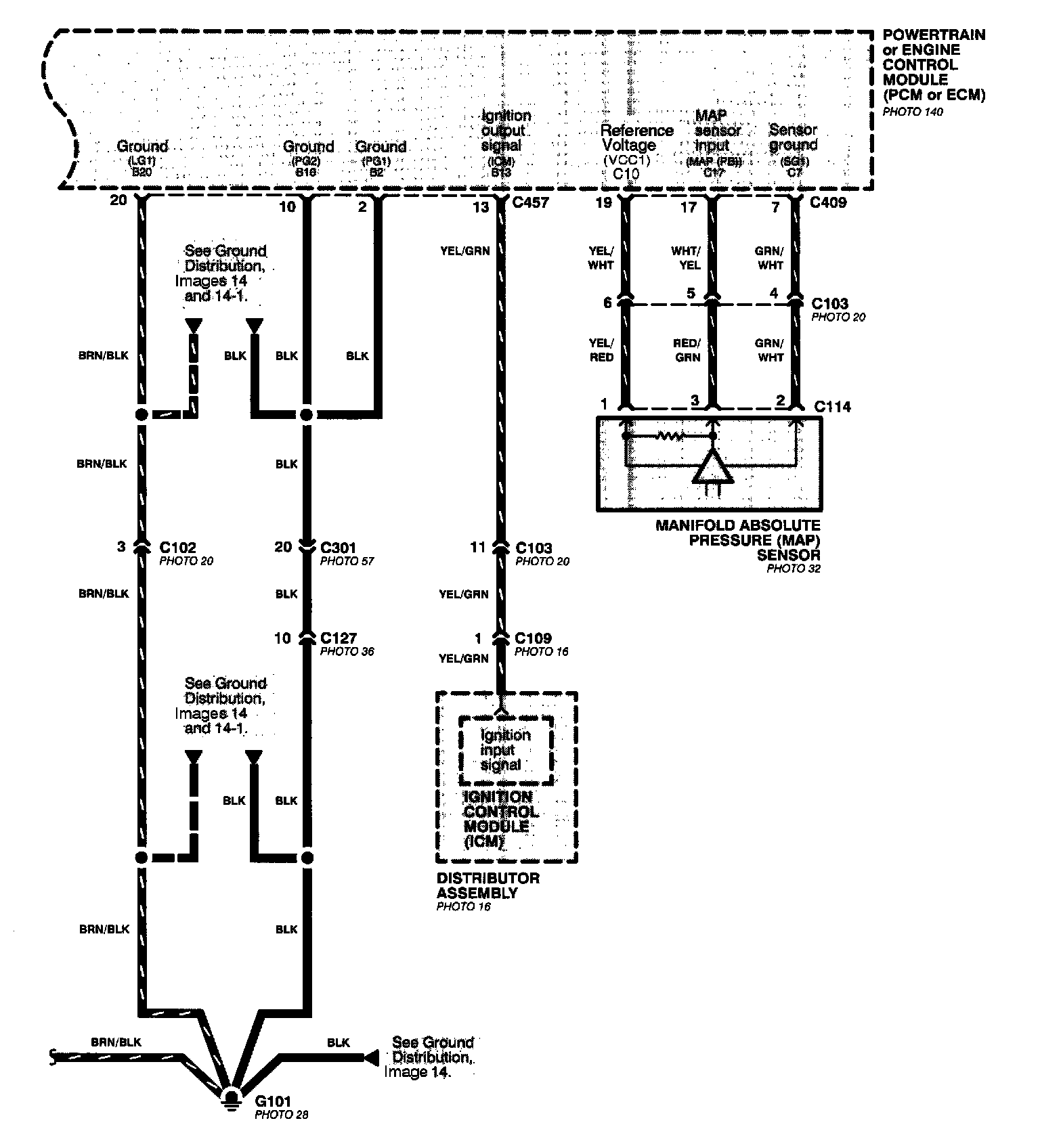

PGM-FI Image 24-1:

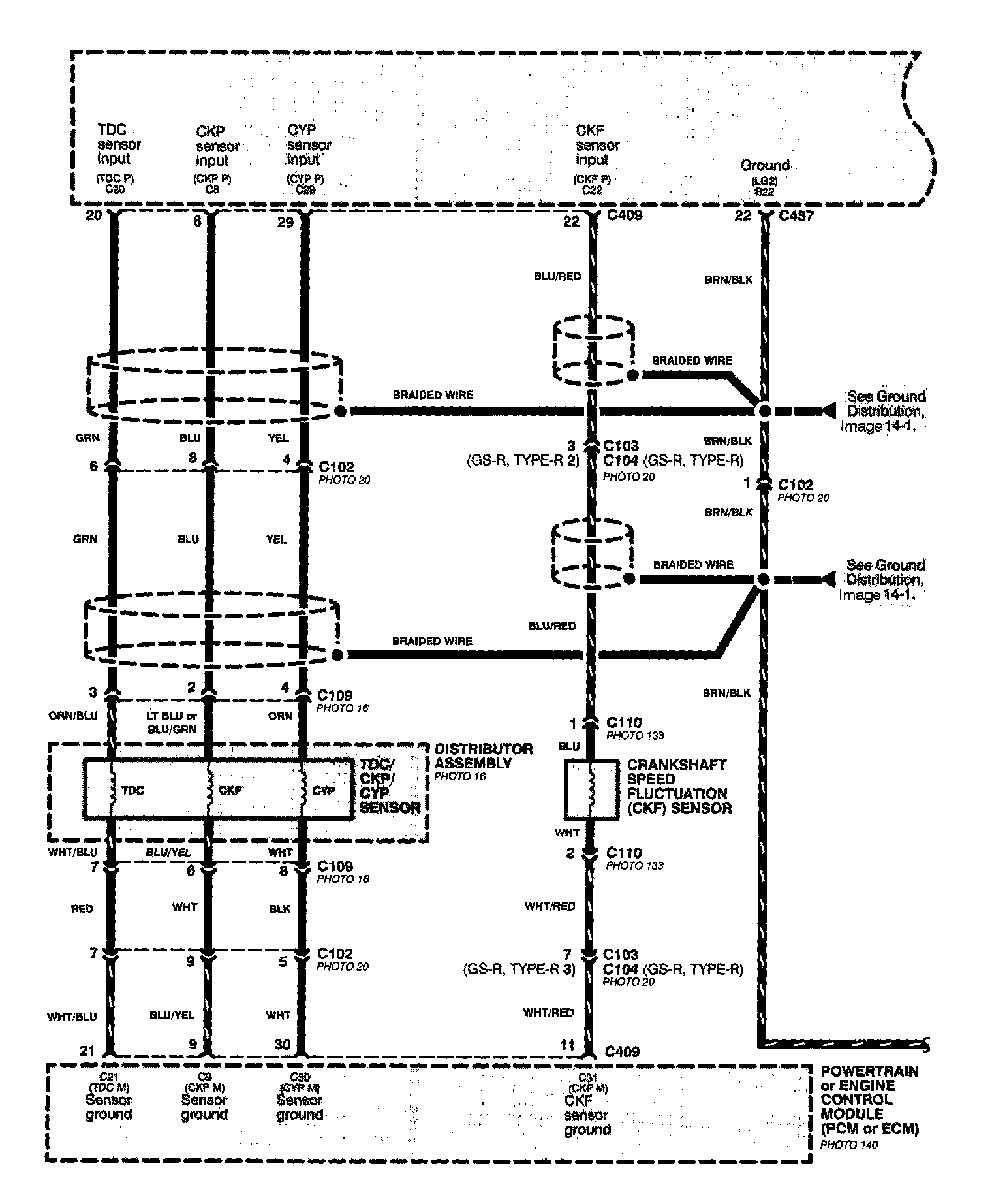

PGM-FI Image 24-2:




PGM-FI Image 24-3:




PGM-FI Image 24-4:




PGM-FI Image 24-5:




PGM-FI Image 24-6:




PGM-FI Image 24-7:
