Pinout Values and Diagnostic Parameters

A/T Control System

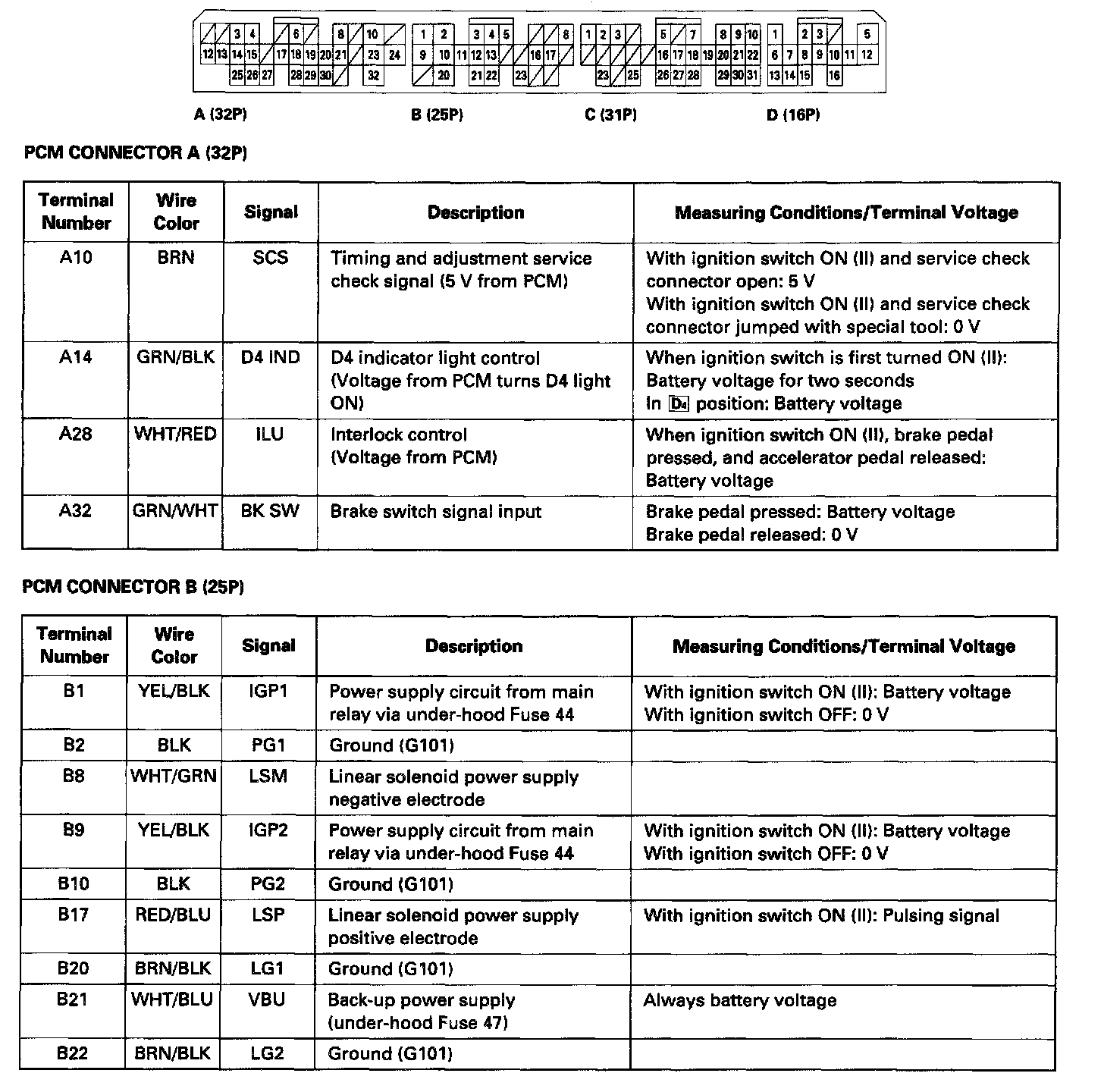

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system.





PCM CONNECTOR D (16P)
