Home >> Acura >> 2000 >> Integra LS Coupe L4-1834cc 1.8L DOHC MFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Application and ID

Transmission and Drivetrain: Application and ID

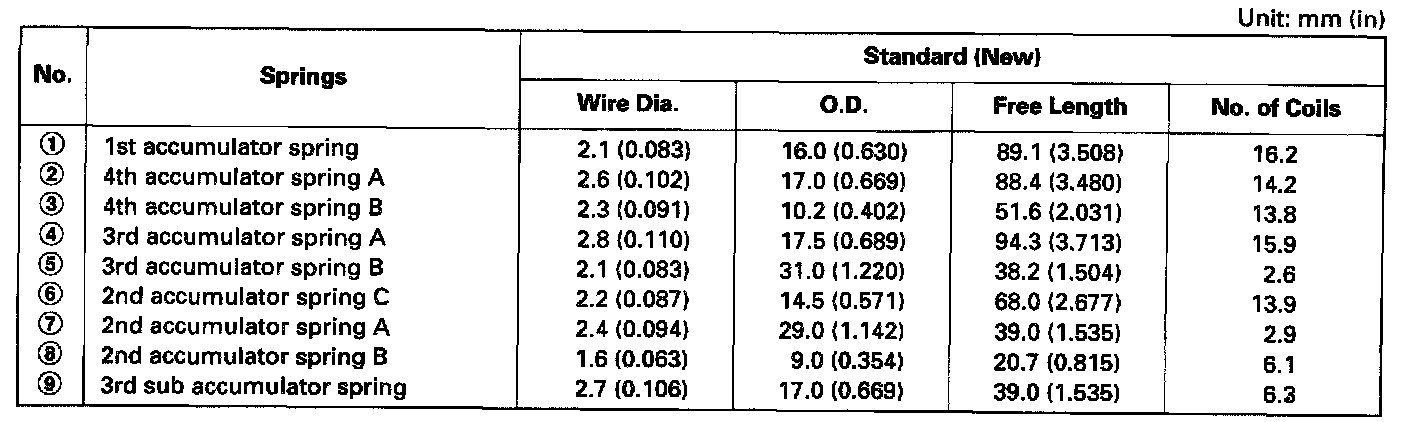

MAIN VALVE BODY

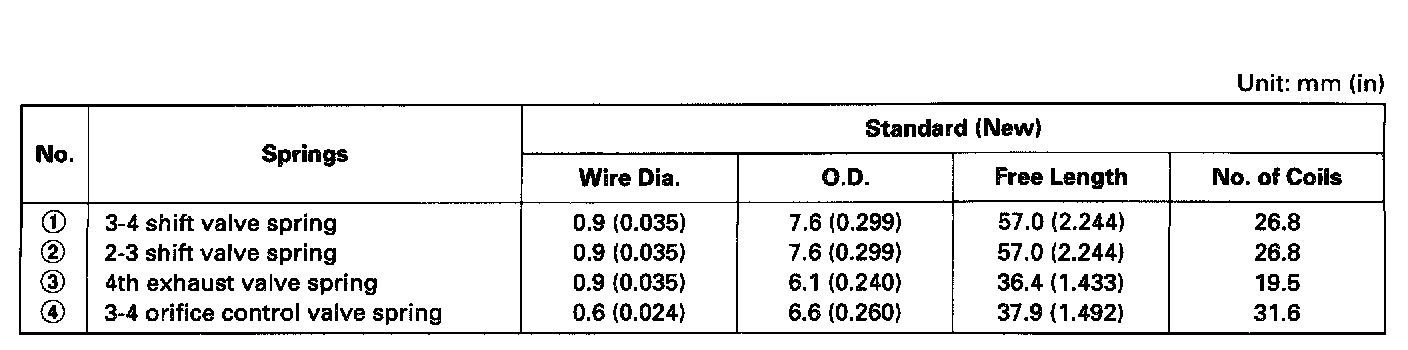

SECONDARY VALVE BODY

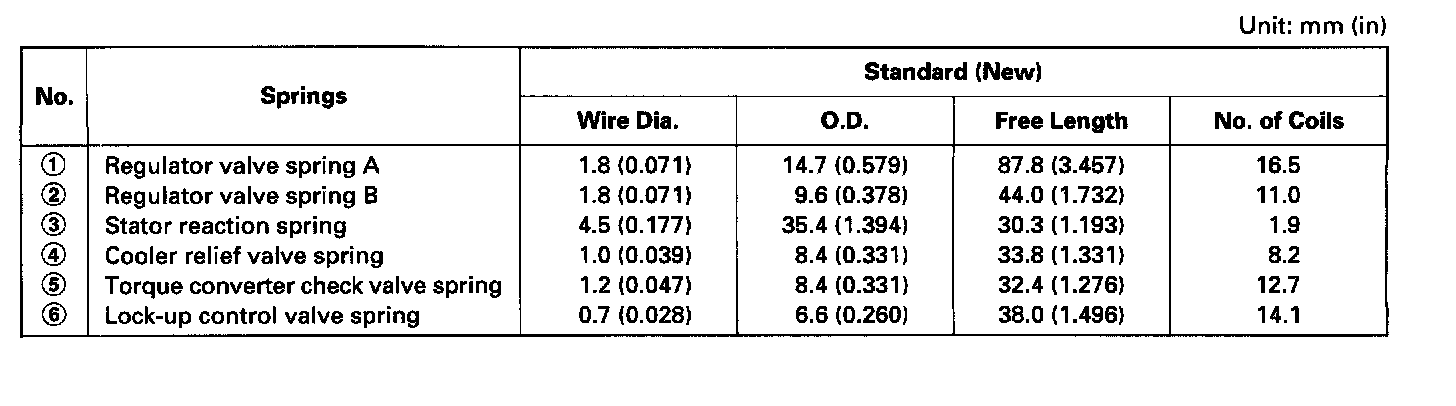

REGULATOR VALVE BODY

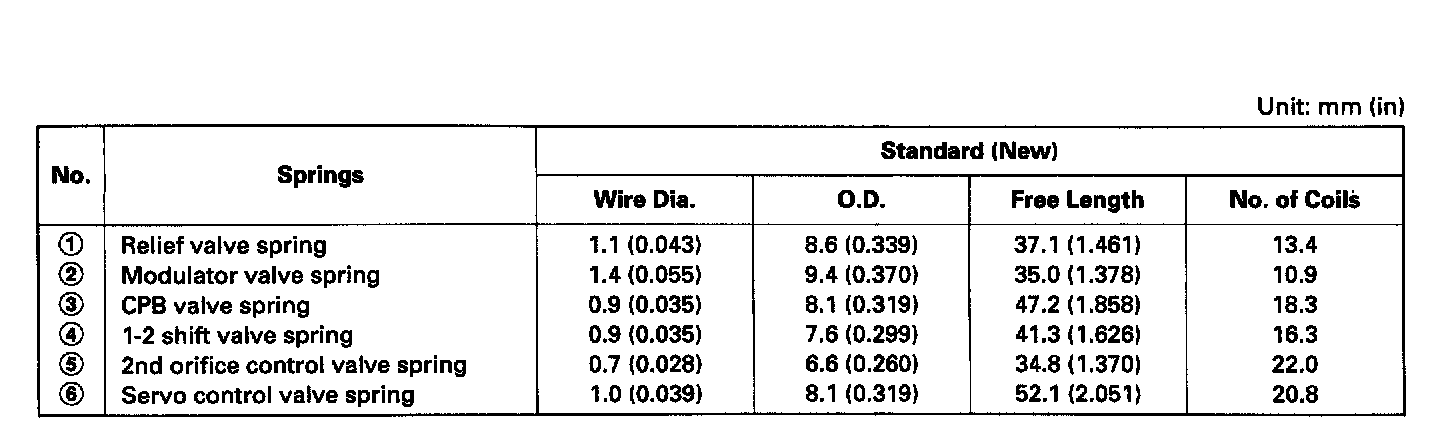

SERVO BODY

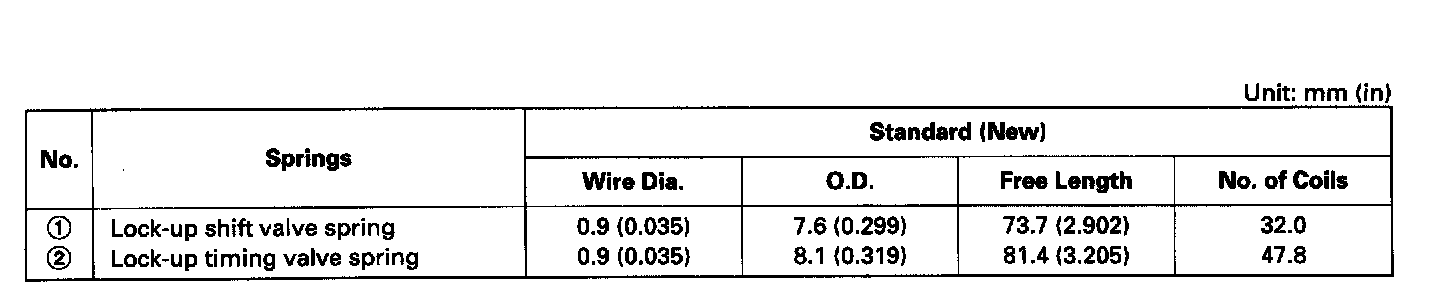

LOCK-UP VALVE BODY
