Front Passenger's Door Wire Harness
Front Passenger's Door Wire Harness

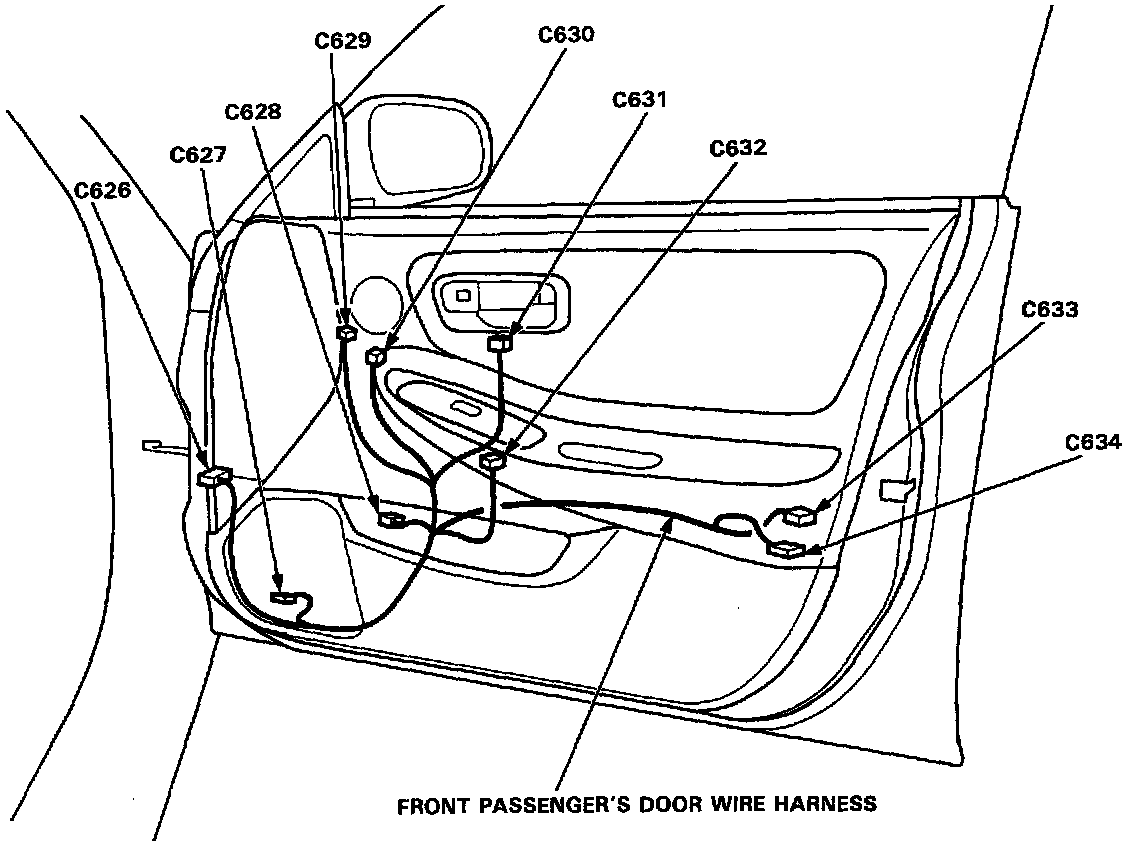

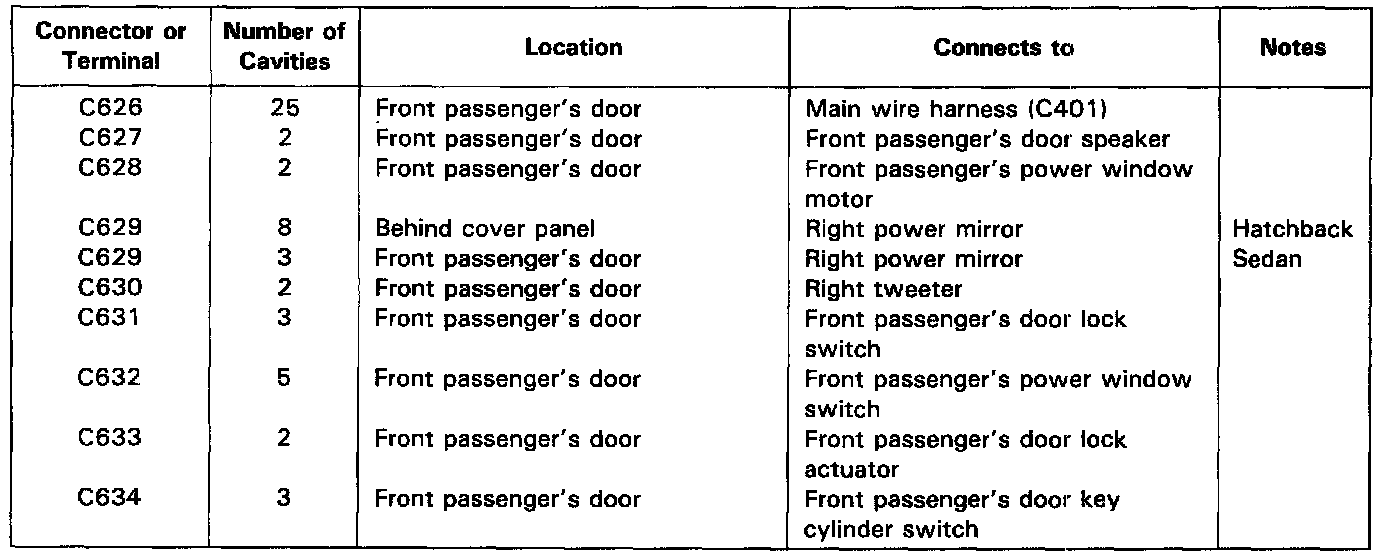

Front Passenger's Door Wire Harness:
Front Passenger's Door Wire Harness (Hatchback):
Front Passenger's Door Wire Harness (Sedan):
