Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER / REPLACEMENT







CAUTION:
All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.

Whenever the ignition switch is ON, or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.

For additional precautions, refer to SRS Service Precautions.

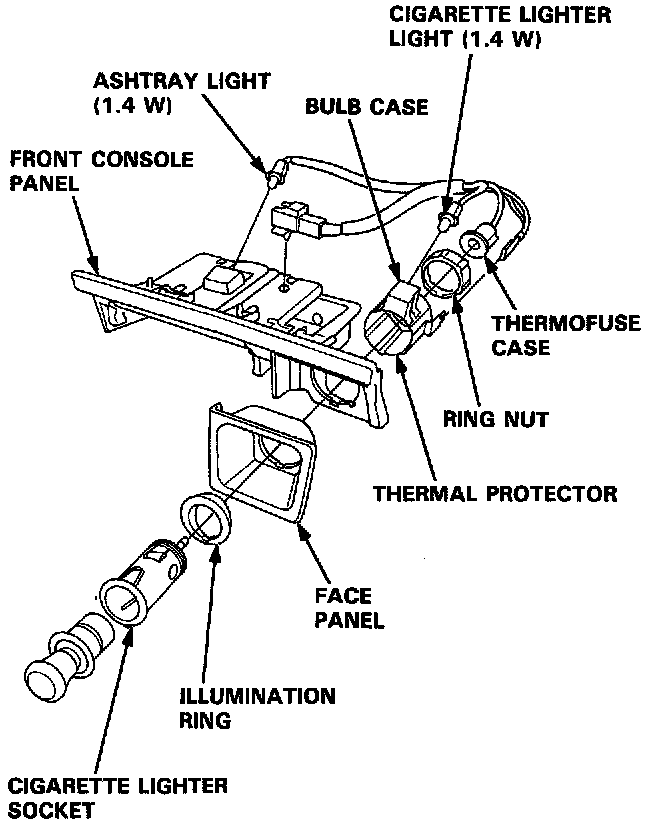

1. Remove the two ashtray mounting screws.
Then pull out the ashtray from the front console panel, and disconnect the 4-P connector.
2. Disconnect the thermofuse case from the socket end.







3. Remove the thermal protector, and pull out the cigarette lighter socket.
4. When installing the cigarette lighter, align each lug on the face panel, illumination ring, and cigarette lighter socket with the groove of the hole, then position the bulb housing on the thermal protector between the stops in the console panel.
5. Make sure that the ground wire, bulb socket, and thermofuse housing are seated to the cigarette lighter assembly.
