Clock: Service and Repair

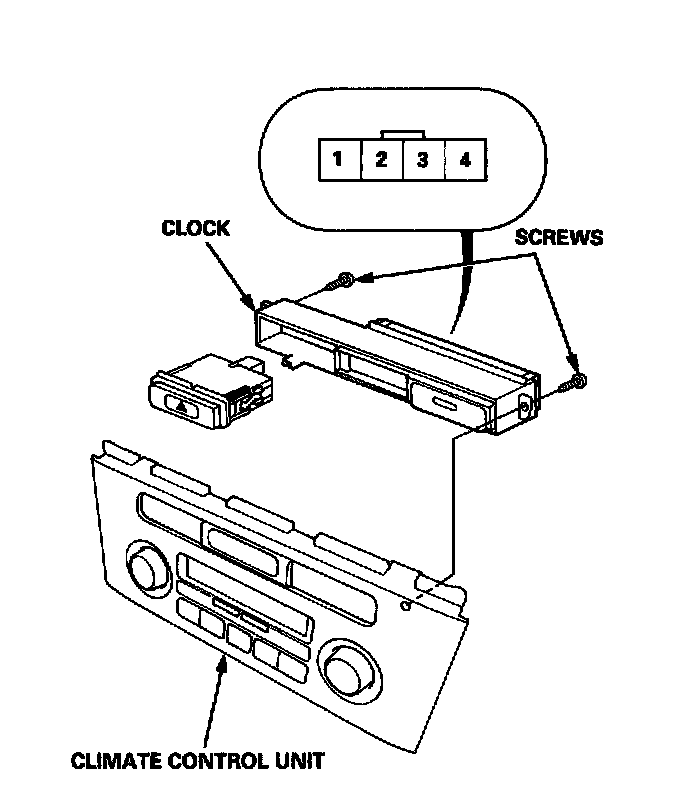

1. Remove the climate control unit.

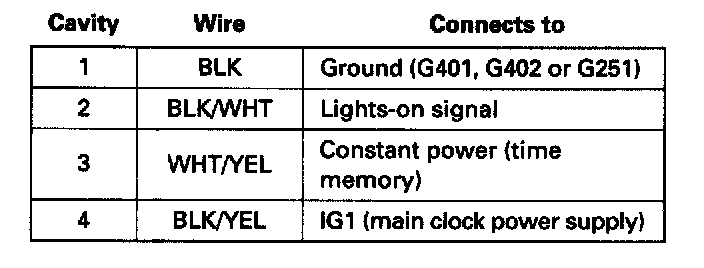

Terminals:




2. Remove the two screws, then remove the clock.
