Windshield Washer Reservoir: Service and Repair

Washer Reservoir

Removal

'00 - 04 models:

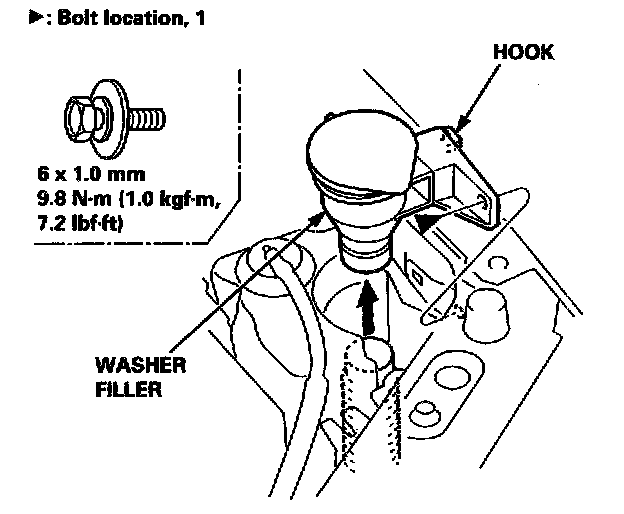

1. Remove the bolt, then pull out the washer filler.
2. Pull away the inner fender as necessary.




3. Disconnect the washer tube and washer motor connector.

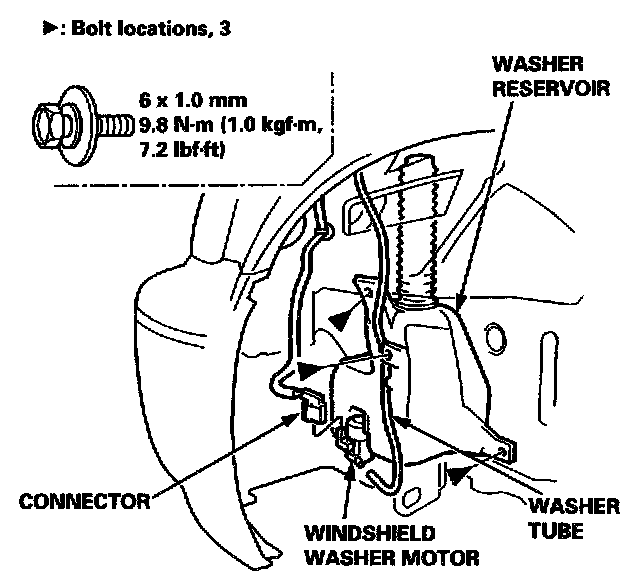

4. Remove the bolt, then remove the washer reservoir.
5. Installation is the reverse of the removal procedure.

NOTE:
- Make sure the washer motor connector and washer tube is connected properly.
- Check the washer motor operation.
