Audio Unit Removal/Installation

Audio Unit Removal/Installation

1. Make sure you have the anti-theft codes for the radio and navigation system, then write down the audio presets.
2. Remove the audio-HVAC display module assembly.

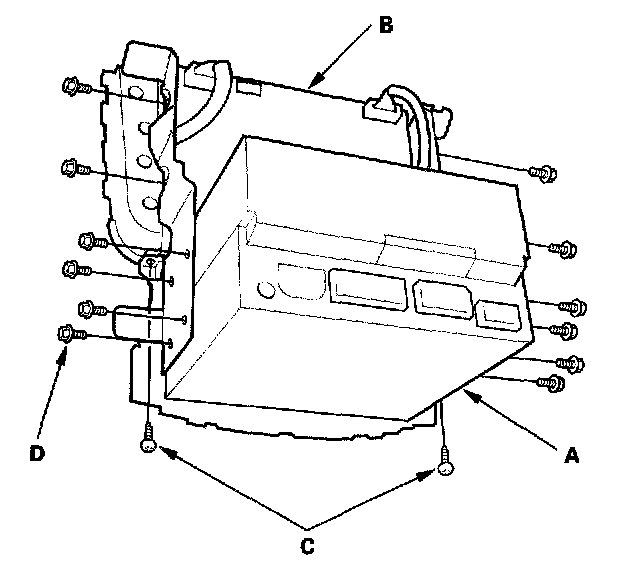

3. Remove the screws and bolts, then separate the audio unit (A) and display panel control unit (B).

NOTE: To avoid damage, remove the screws (C) first, then remove the bolts (D).

4. Install the audio unit to the display panel control unit in the reverse order of removal.
5. Enter the anti-theft codes for the radio and navigation system, then enter the audio presets.
