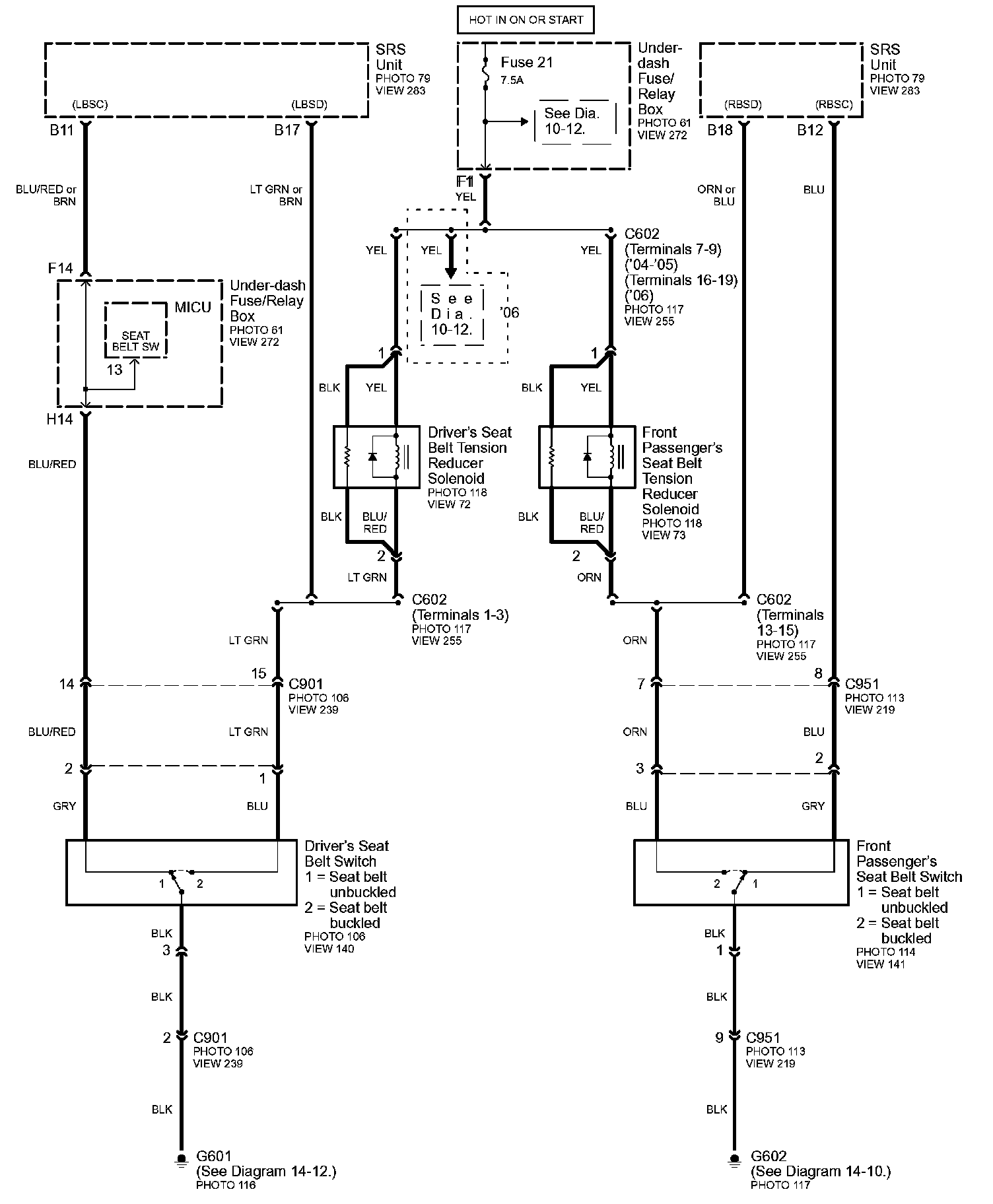

Diagram Set 145 (Seat Belt Tension Reducers)
Diagram Set 145 (Seat Belt Tension Reducers)
Diagram 145:
