Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

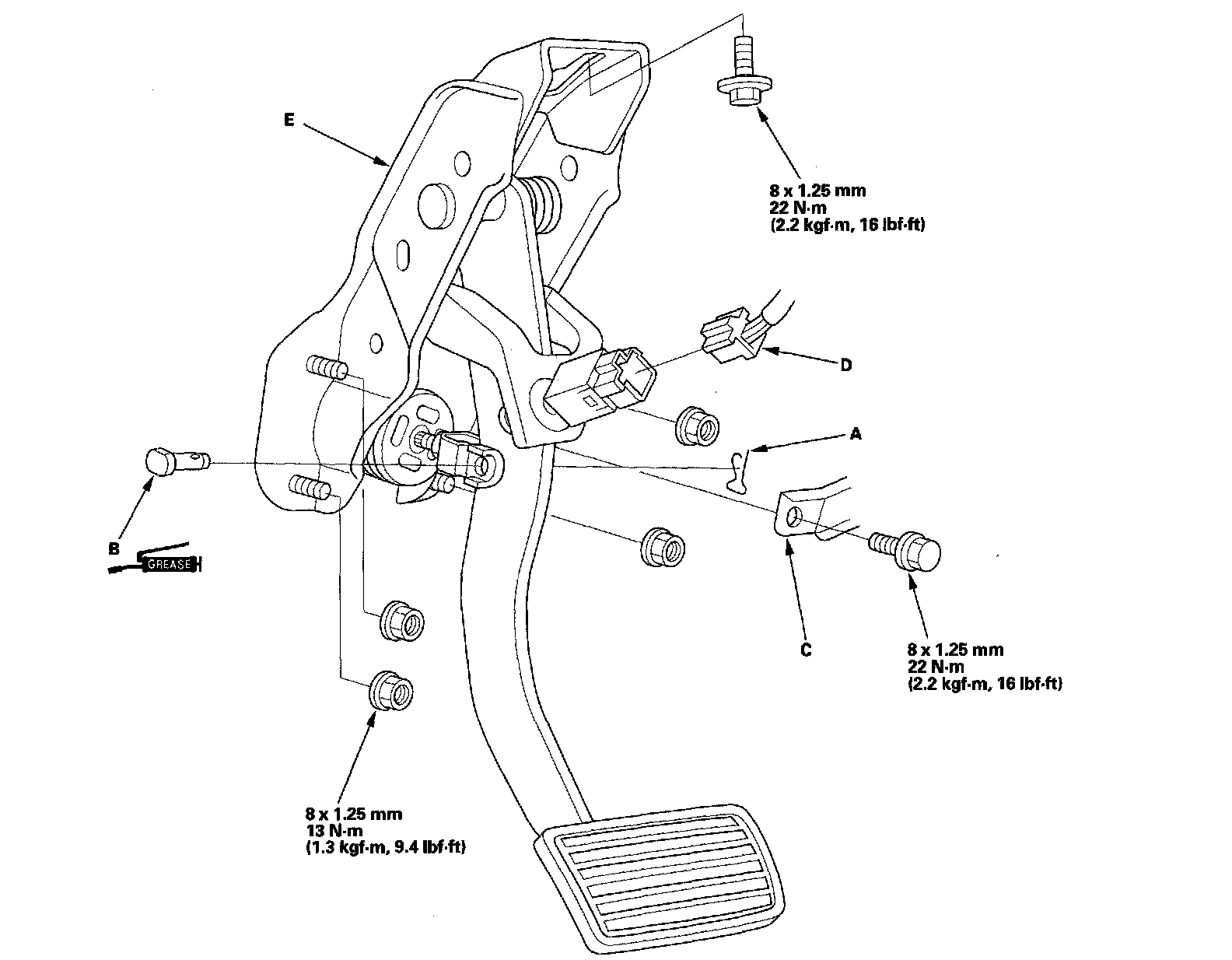

NOTE: The illustration shows standard TL model, Type S model is similar.

1. Remove the lock pin (A) and joint pin (B).





2. Remove the brake pedal bracket support member (C).
3. Disconnect brake pedal position switch connector (D).
4. Remove the brake pedal with bracket (E).
5. Install the brake pedal bracket in the reverse order of removal.
6. Do the brake pedal and brake pedal position switch adjustment.
