Cabin Noise Sensor
Cabin Noise Sensor

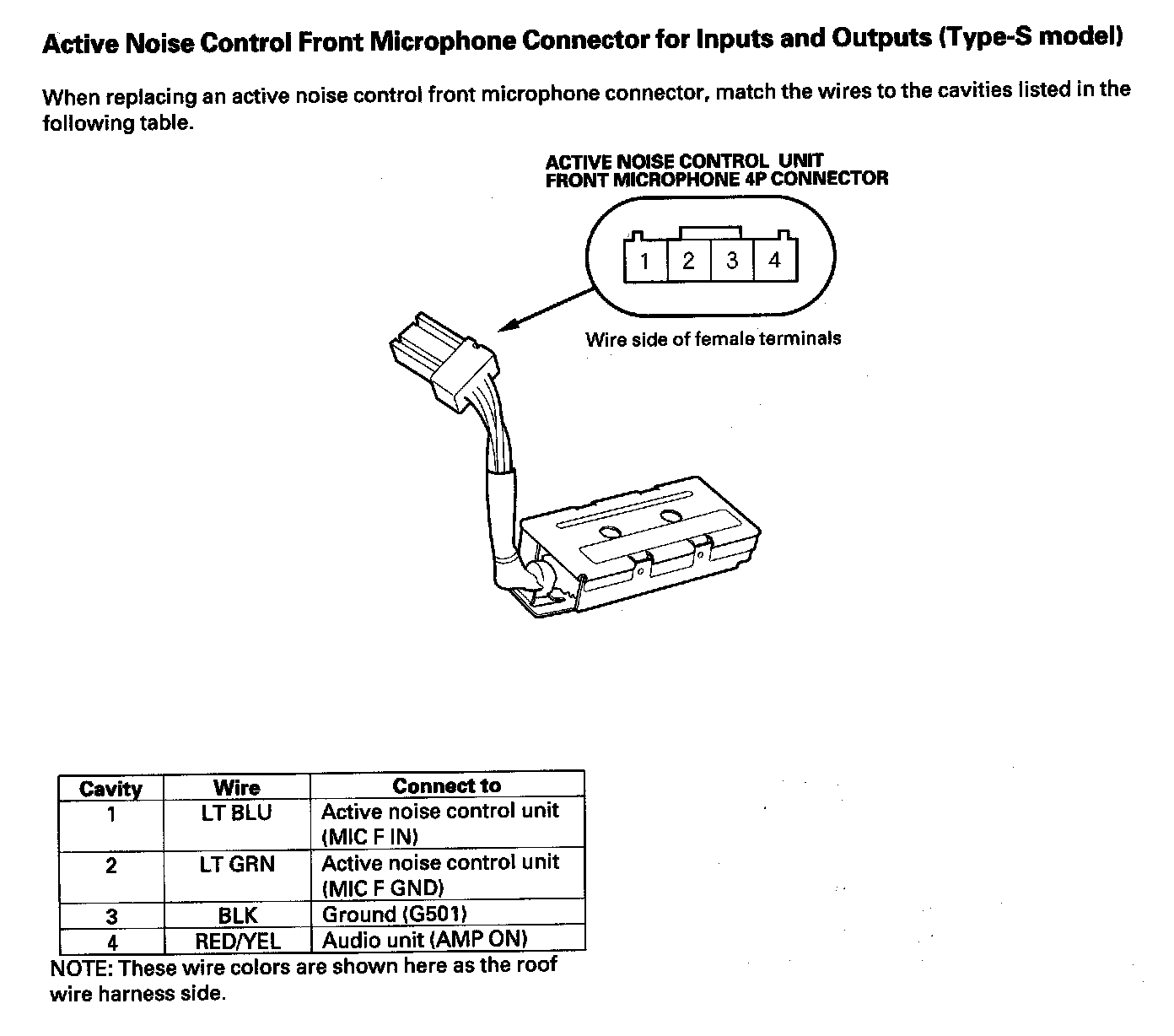

Active Noise Control Front Microphone Connector for Inputs and Outputs (Type-S model):

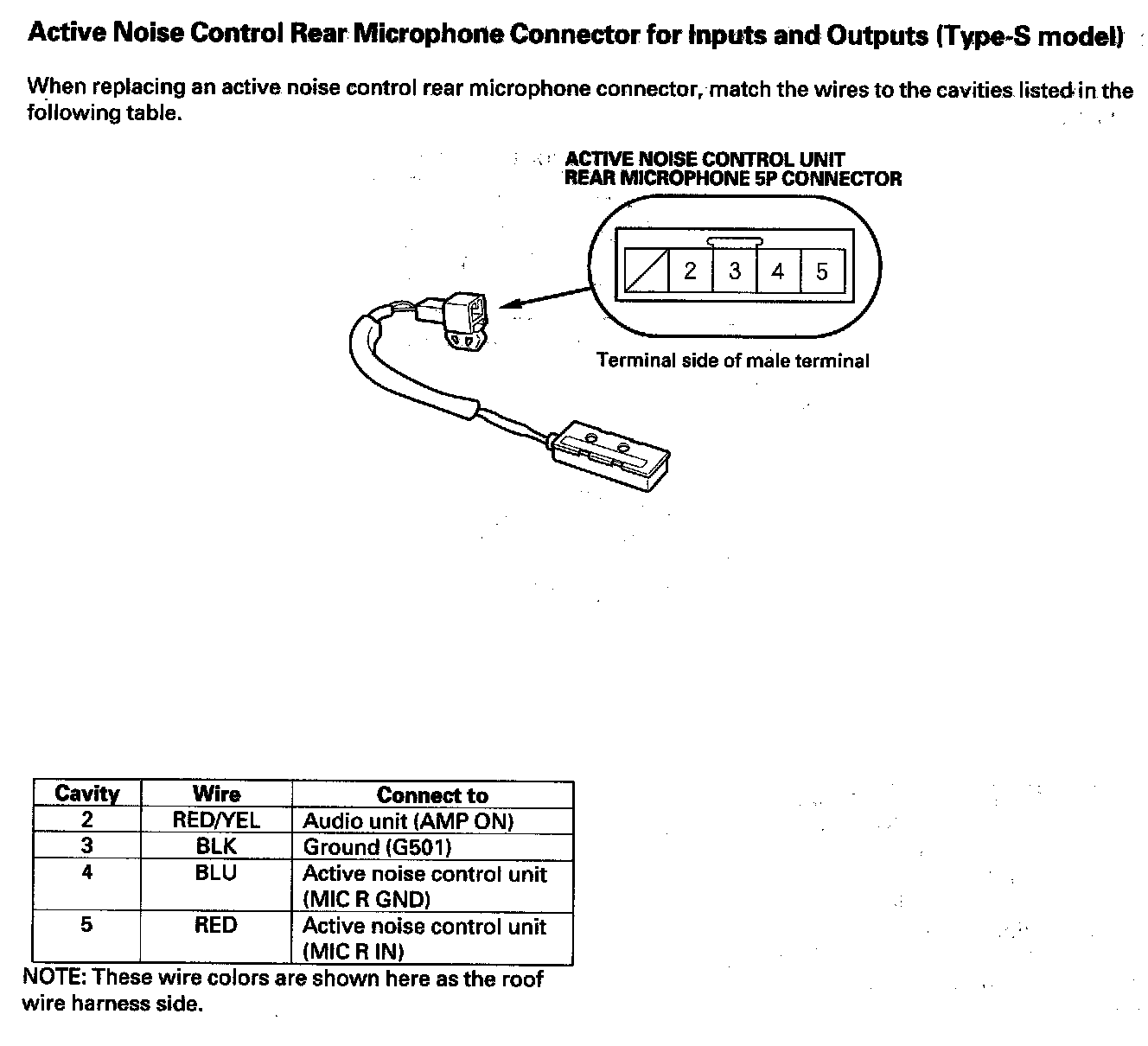

Active Noise Control Rear Microphone Connector for Inputs and Outputs (Type-S model):
