Rear Vision Camera
Rear Vision Camera

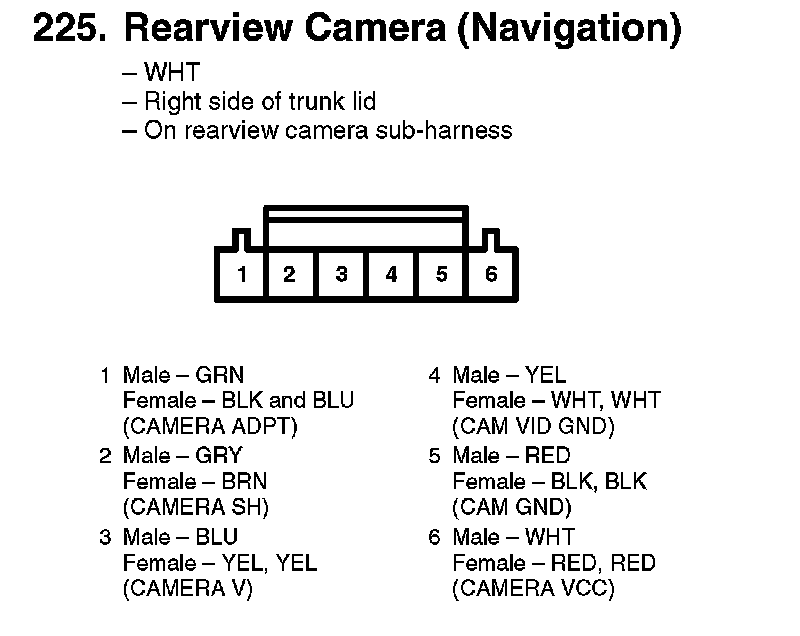

225. Rearview Camera (Navigation):

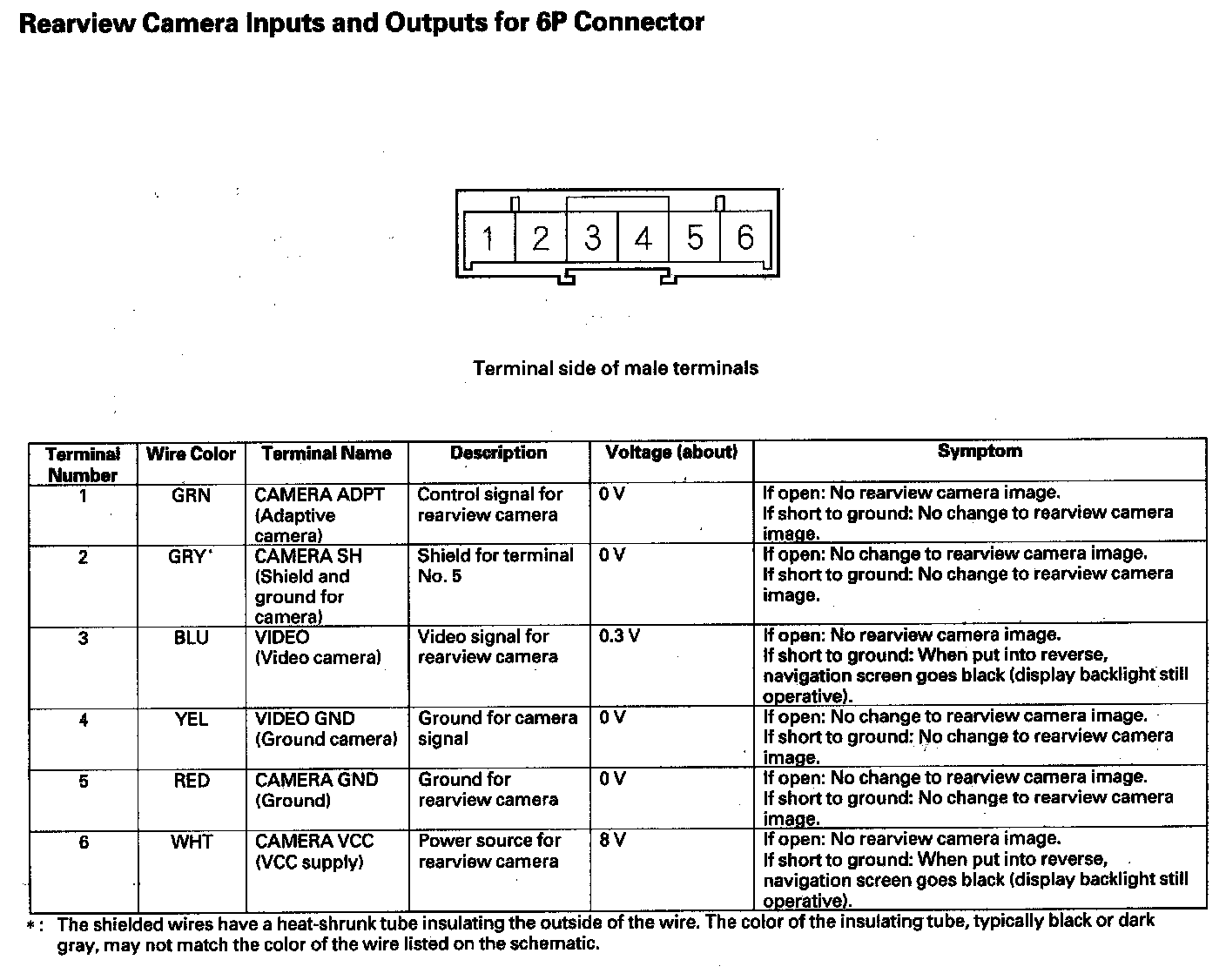

Rearview Camera Inputs And Outputs For 6P Connector:
