Keyless Access Control Unit Input Test

Keyless Access Control Unit Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control system first using B-CAN System Diagnosis Test Mode A. Troubleshooting - B-CAN System Diagnosis Test Mode A

1. Turn the ignition switch to LOCK (0).

2. Remove the driver's dashboard undercover, Driver's Dashboard Undercover Removal/Installation and the driver's dashboard lower cover. Driver's Dashboard Lower Cover Removal/Installation

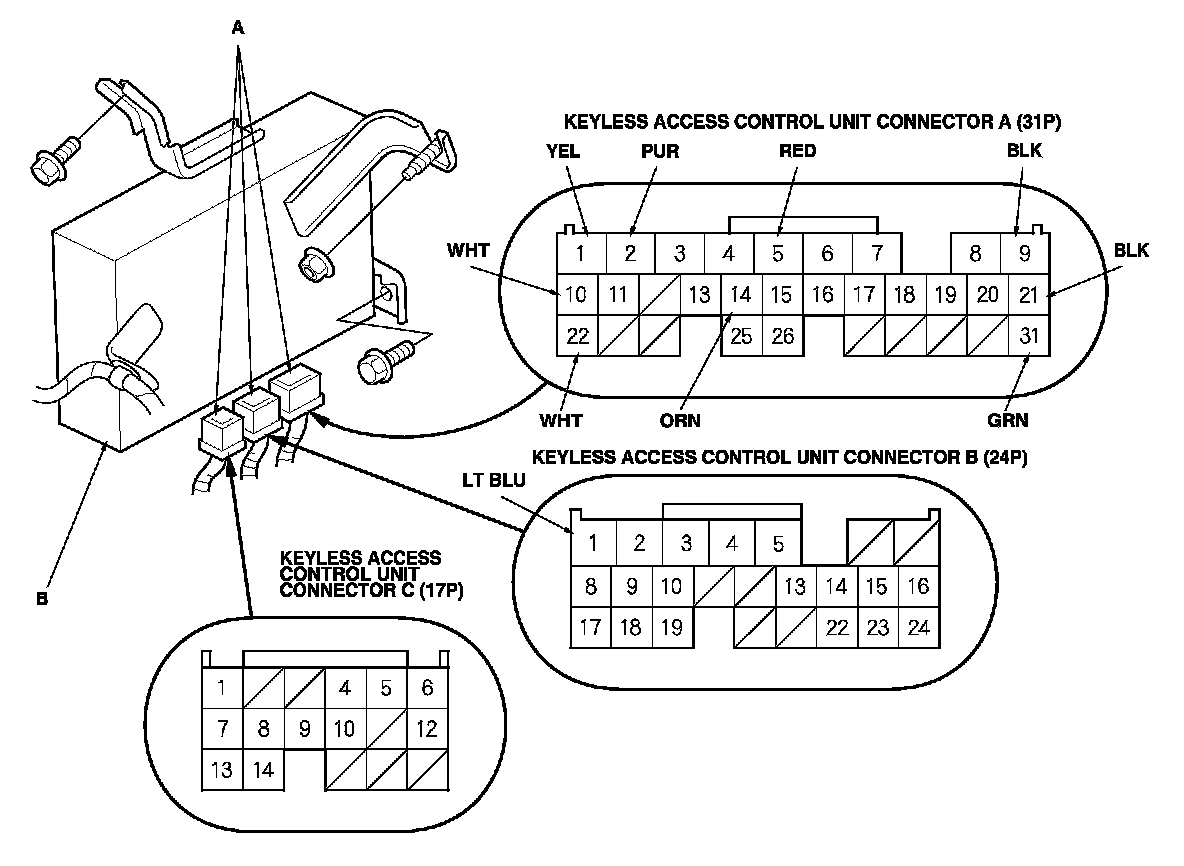

3. Disconnect the connectors (A) from the keyless access control unit (B).
NOTE: All connector views are wire side of female terminals.

4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, go to step 5.

5. With the connectors still disconnected, do these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.





6. Reconnect the connectors to the keyless access control unit, and do these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the control unit must be faulty; replace it.
