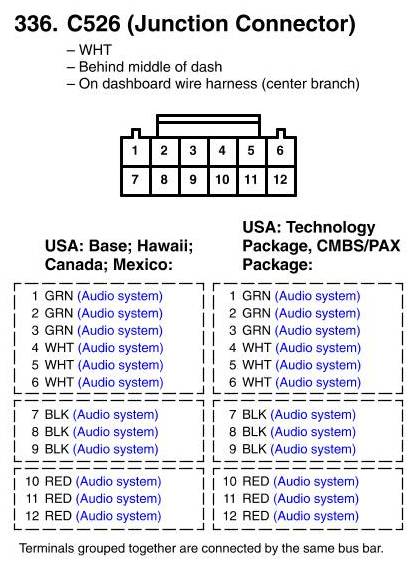

View 336 - C526 (Junction Connector) Connector View
View 336 - C526 (Junction Connector) Connector View
