Oil Pump: Service and Repair

Engine Oil Pump Overhaul

Exploded View





Special Tools Required

- Oil seal driver, 64 mm 070AD-RCAA100
- 2008 V6 Attachment arm SIL02C000033*
- Engine support hanger, A and Reds AAR-T1256*
- Engine hanger balance bar VSB02C000019*
*: Available through the Acura Tool and Equipment program.

Removal

1. Remove the right upper fender trim, the battery trim, the left upper fender trim, the upper grille cover, Upper Grille Cover Replacement and the cowl cover. Service and Repair

2. Remove the under-hood fuse/relay box, the connector, and the transfer breather hose from the strut brace, then remove the strut brace. Engine Removal

3. Remove the connector bracket from the front cylinder head; use the bracket bolt hole to attach the engine balance bar front arm. Engine Removal

4. Remove the engine mount control solenoid valve bracket from the rear cylinder head; use the bracket bolt hole to attach the 2008 V6 attachment arm. Engine Removal

5. Lift and support the engine with the engine support hanger and engine balance bar Attach the front arm to the front cylinder head with a spacer and the 10 x 1.25 mm bolt. Remove the rear arm from the balance bar, and install the 2008 V6 attachment arm, then attach the 2008 V6 attachment arm to the rear cylinder head with the 8 x 1.25 mm bolt .. Engine Removal

6. Remove the timing belt. Timing Belt Removal

7. Remove the crankshaft position (CKP) sensor. Service and Repair

8. Remove the rocker arm oil control solenoid/oil filter assembly. Crankshaft and Piston Removal

9. Remove the oil pan. Engine Oil Pan Removal

10. Remove the oil screen (A), then remove the oil pump (B).






Inspection

1. Remove the screws from the pump housing, then separate the housing and cover.

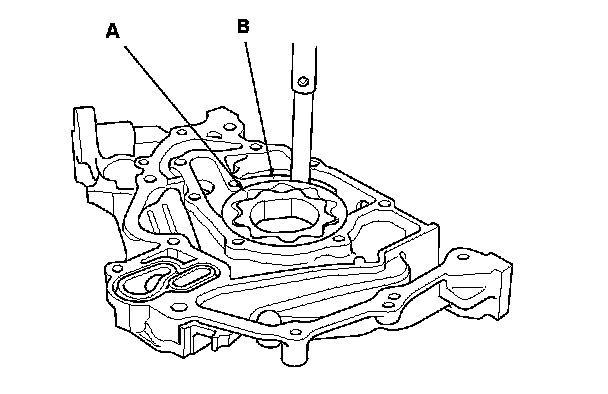

2. Check the inner-to-outer rotor radial clearance between the inner rotor (A) and the outer rotor (B). If the inner-to-outer rotor clearance exceeds the service limit, replace the oil pump assembly.

Inner Rotor-to-Outer Rotor Radial Clearance










3. Check the housing-to-rotor axial clearance between the rotors (A) and the pump housing (B). If the housing-to-rotor axial clearance exceeds the service limit, replace the oil pump assembly.

Housing-to-Rotor Axial Clearance










4. Check the housing-to-outer rotor radial clearance between the outer rotor (A) and the pump housing (B). If the housing-to-outer rotor radial clearance exceeds the service limit, replace the oil pump assembly.

Housing-to-Outer Rotor Radial Clearance





5. Inspect both rotors and the pump housing for scoring or other damage. Replace the parts, if necessary.

6. Apply liquid thread lock to the pump housing screws, then install the oil pump cover.

7. Make sure the oil pump turns freely.






Installation

1. Remove the old oil seal from the oil pump.

2. Gently tap in the new oil seal until the oil seal driver bottoms on the pump.

3. Remove all of the old liquid gasket from the oil pump mating surfaces, the bolts, and the bolt holes.

4. Clean and dry the oil pump mating surfaces.






5. Apply liquid gasket, (P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009) to the engine block mating surface of the oil pump and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.
NOTE:

- Apply liquid gasket about 2.5 mm (0.098 in.) diameter bead along the broken line (A).

- If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.

- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.





6. Grease the lip of the oil seal, and apply oil to the new O-ring (A).

7. Install the dowel pins (B), then align the inner rotor with the crankshaft, and install the oil pump (C).

8. Clean the excess grease off the crankshaft, and check the seal for distortion.

9. Install the oil screen (D) with a new O-ring (E).

10. Install the rocker arm oil control solenoid/oil filter assembly, with a new rocker arm oil control solenoid filter. Crankshaft and Piston Installation

11. Install the oil pan. Engine Oil Pan Installation

12. Install the CKP sensor. Service and Repair

13. Install the timing belt. Timing Belt Installation

14. Remove the engine balance bar and hanger.

15. Install the connector bracket to the front cylinder head. Engine Installation

16. Install the engine mount control solenoid valve bracket to the rear cylinder head. Engine Installation

17. Install the strut brace, then install the under-hood fuse/relay box, the connector, and the transfer breather hose. Engine Installation

18. Install the cowl cover, the upper grille cover, the left upper fender trim, the battery trim, and the right upper fender trim.
