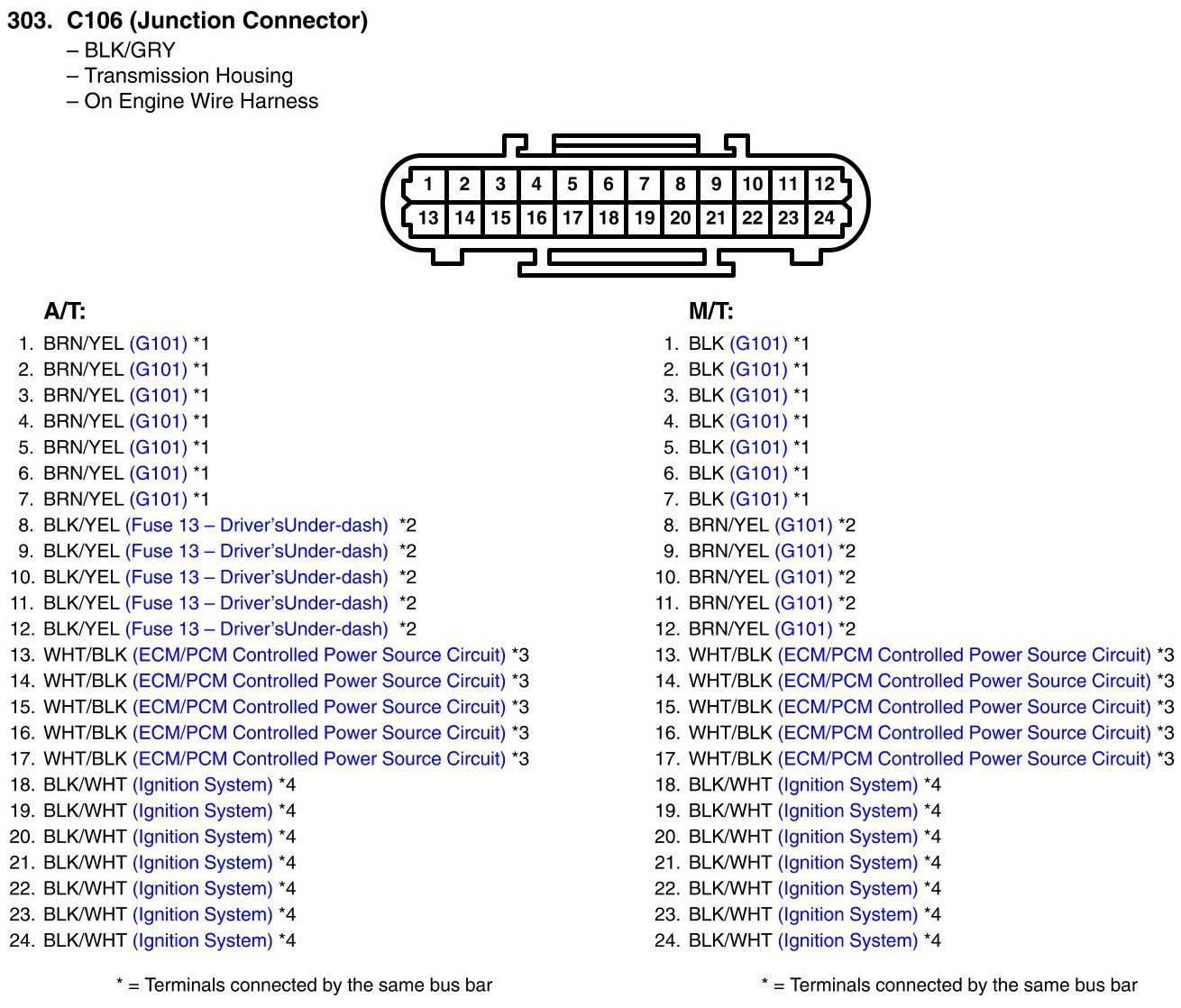

View 303 - C106 (Junction Connector) Connector View
View 303 - C106 (Junction Connector) Connector View
