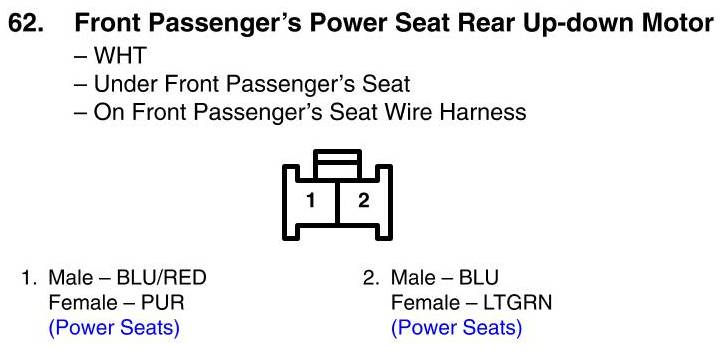

View 62 - Front Passenger's Power Seat Rear Up-Down Motor Connector View
View 62 - Front Passenger's Power Seat Rear Up-Down Motor Connector View
