Home
>>
Acura
>>
2009
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Voice Activation Switch
>>

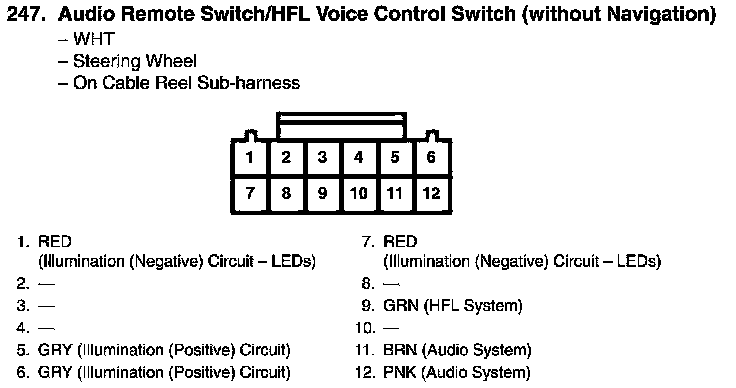

Audio Remote Switch/HFL Voice Control Switch Connector View (Without Navigation)
Audio Remote Switch/HFL Voice Control Switch Connector View (Without Navigation)
