Connector or Terminal

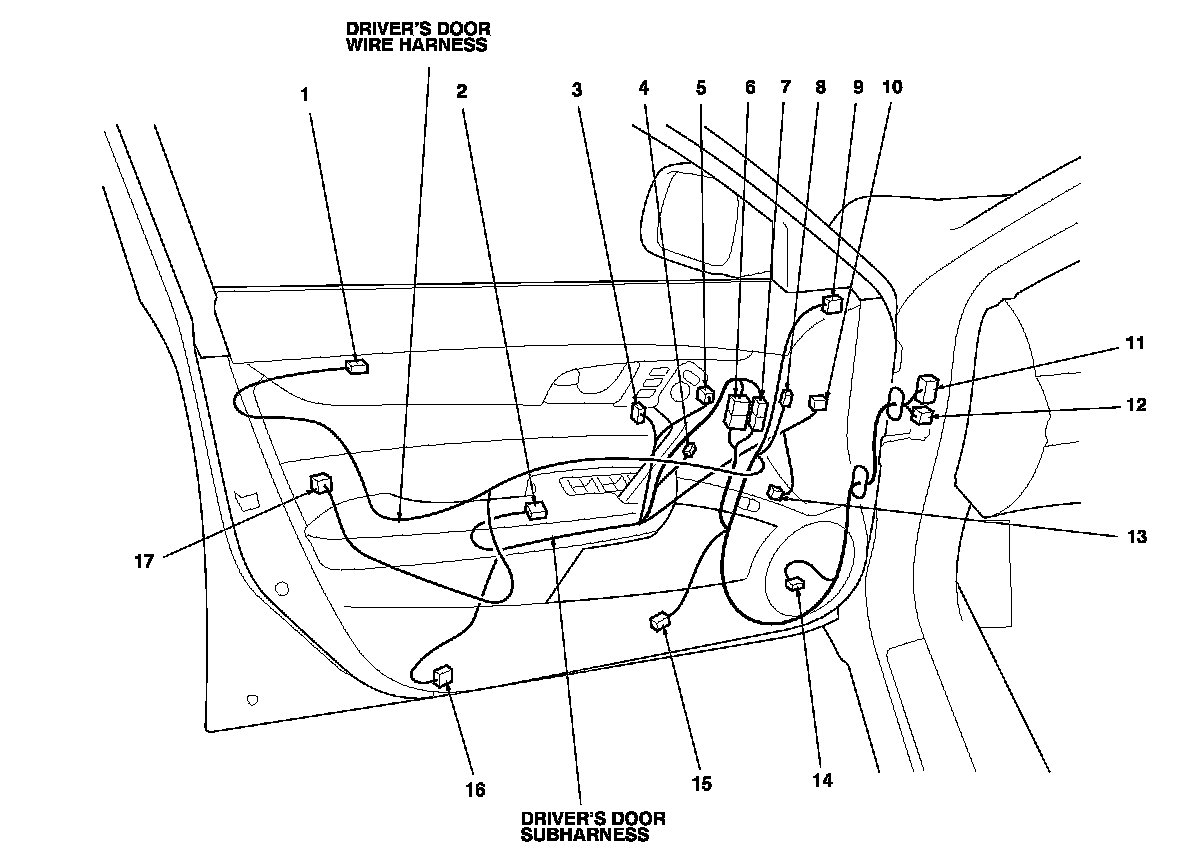

Driver's Door Wire Harnesses and Driver's Door Subharness Connector and Harness Locations

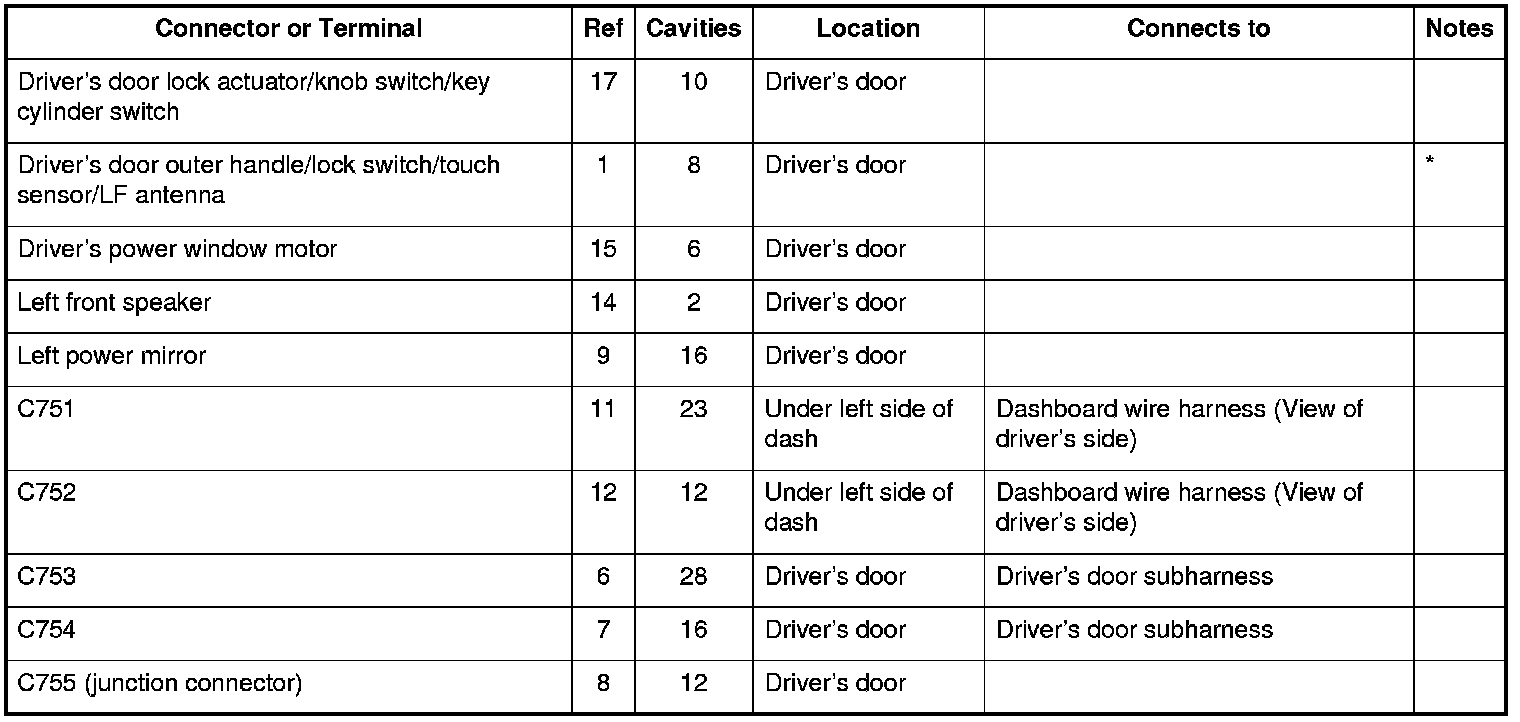

Driver's Door Wire Harness





*: With keyless access system

Driver's Door Subharness
