EPS Subharness Connector And Harness Locations
>>

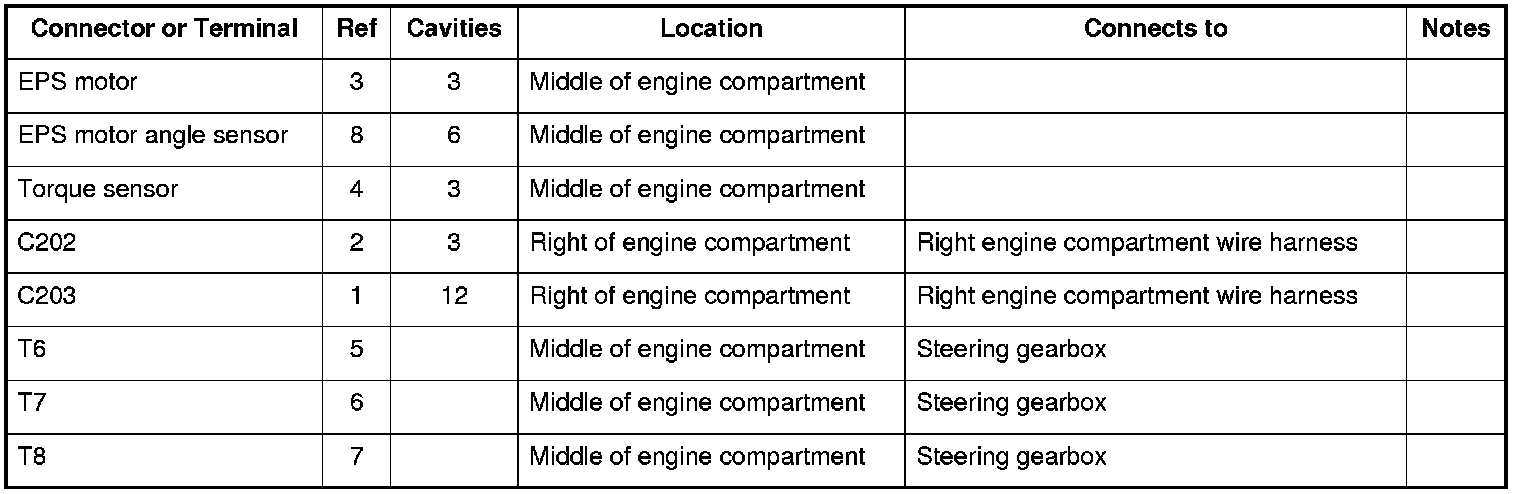

Connector or Terminal
Connector or Terminal

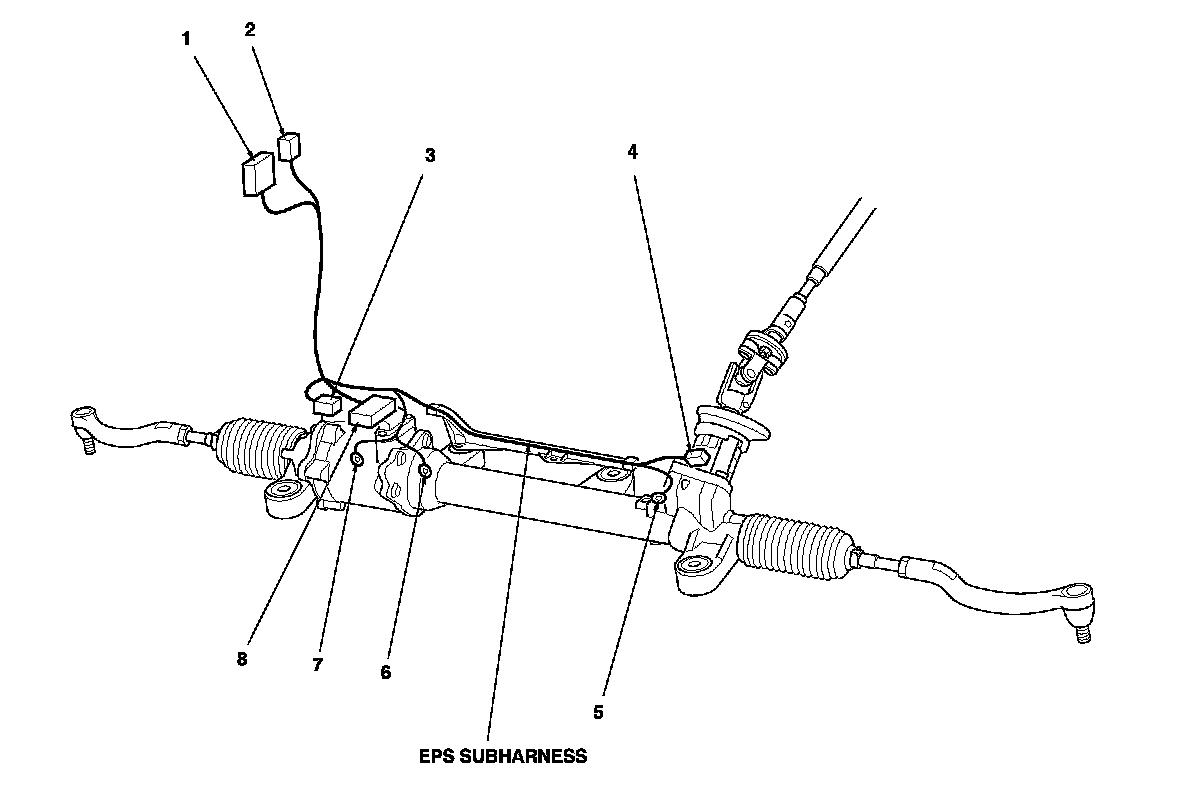

EPS Subharness Connector and Harness Locations
EPS Subharness
