Engine Wire Harness (Engine Section) And Knock Sensor Subharness Connector And Harness Locations

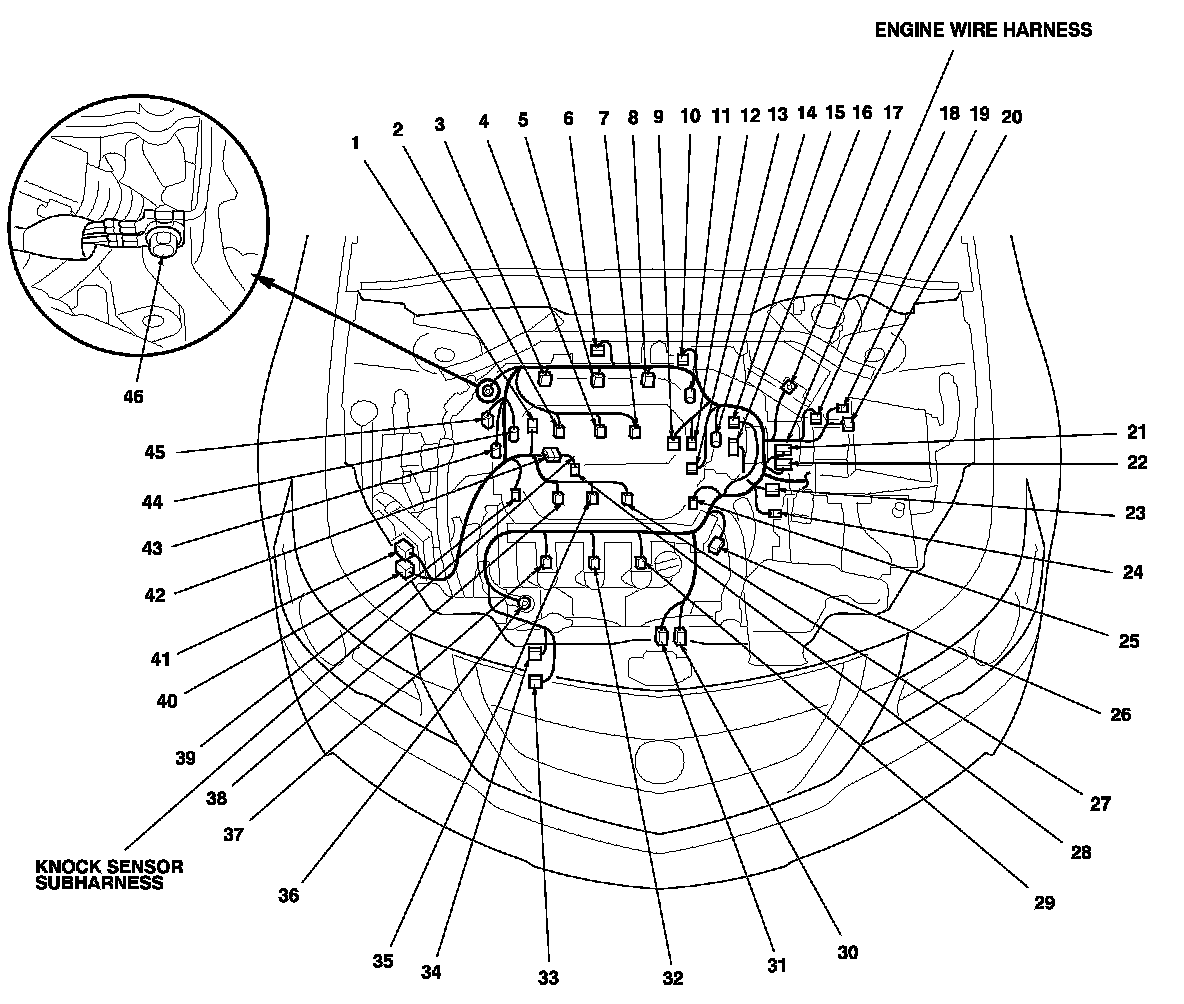

Engine Wire Harness (Engine Section) and Knock Sensor Subharness Connector and Harness Locations

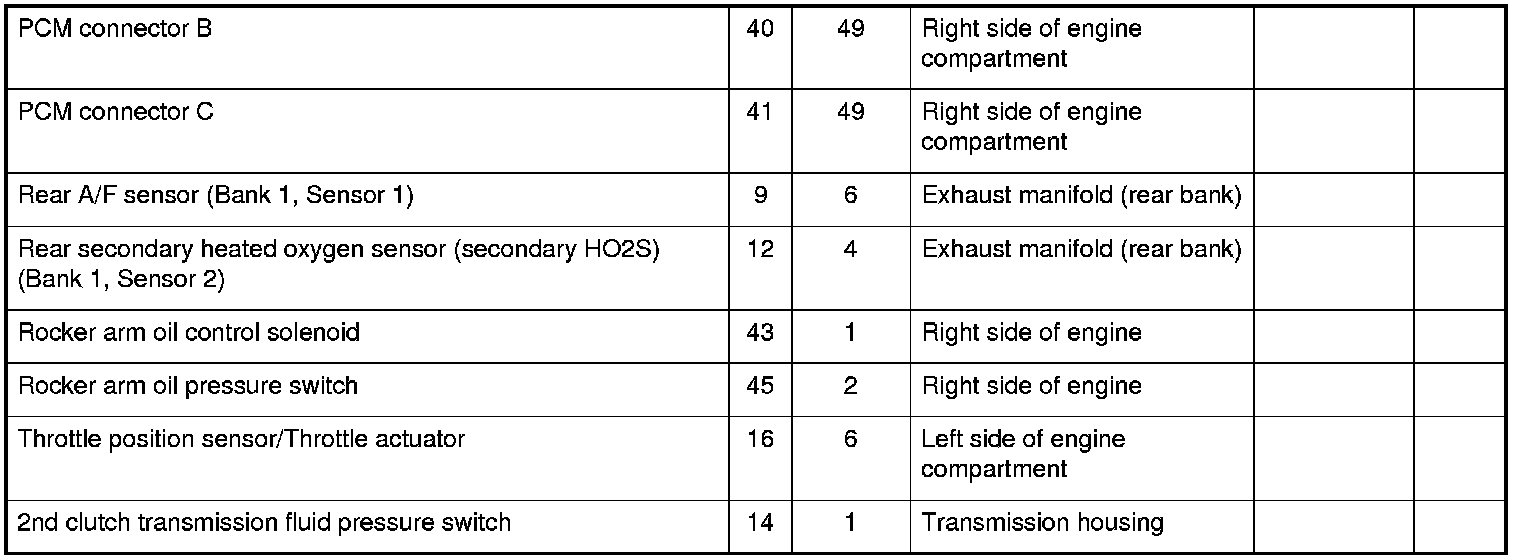

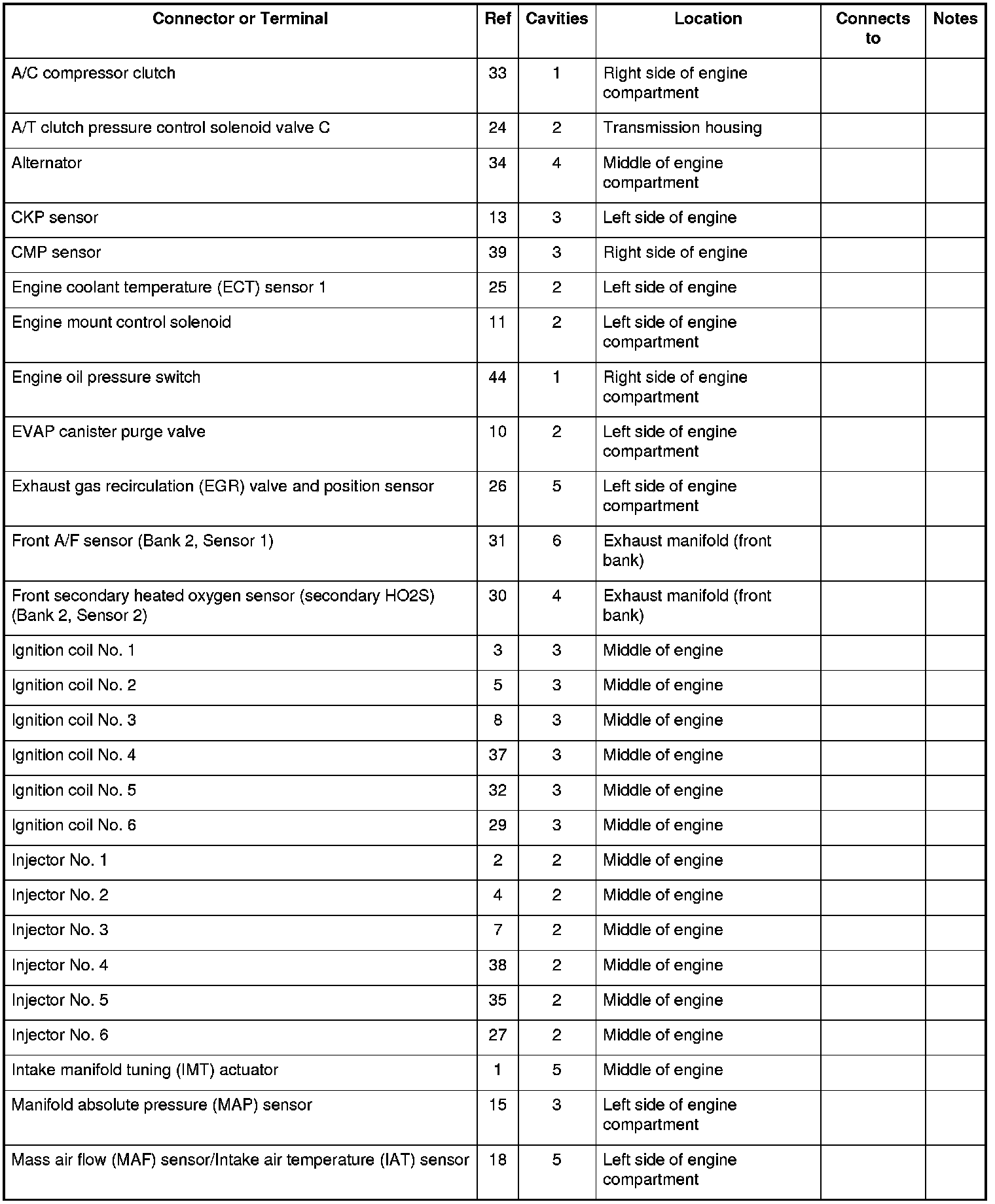

Engine Wire Harness (Engine section)

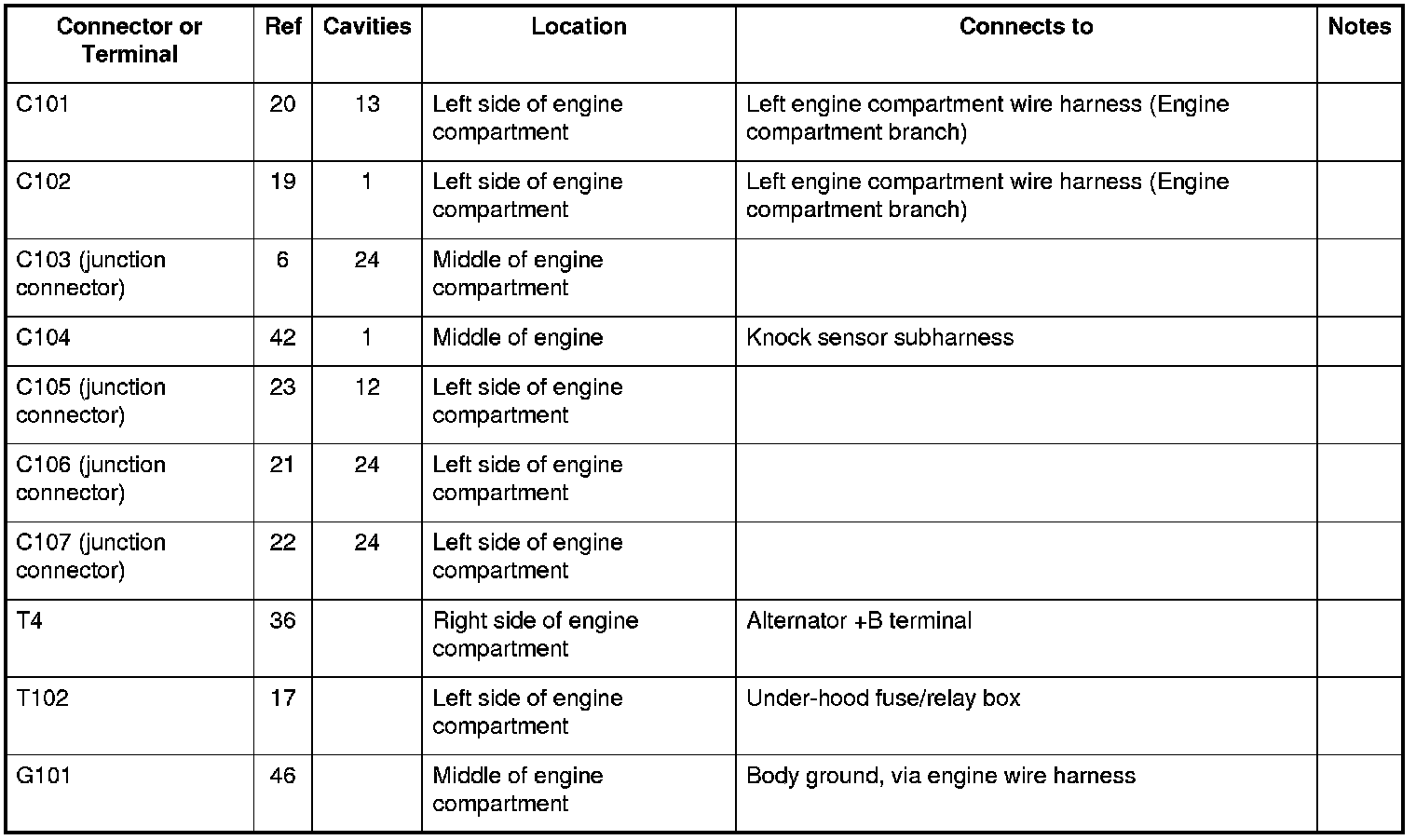

Engine Wire Harness (Engine section)





Knock Sensor Subharness
