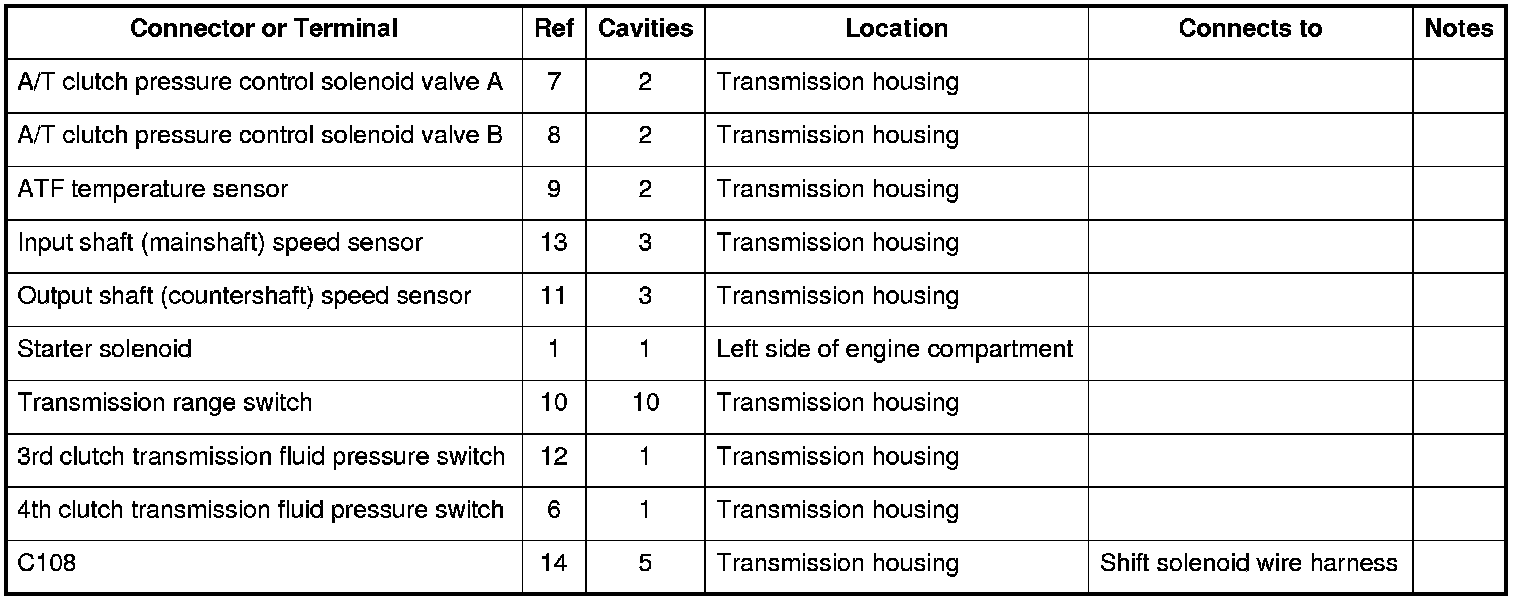

Connector or Terminal

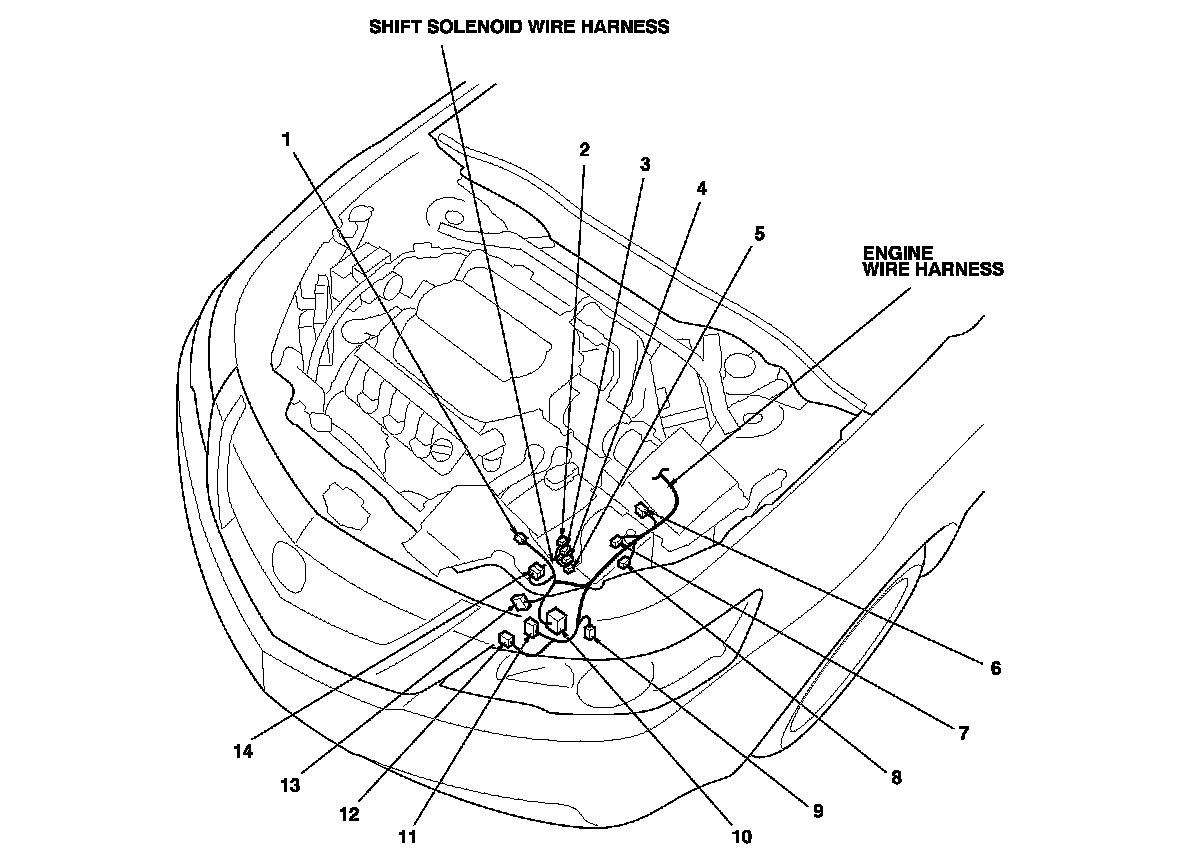

Engine Wire Harness (Transmission section) and Shift Solenoid Wire Harness Connector and Harness Locations

Engine Wire Harness (Transmission section)





Shift Solenoid Wire Harness
