Home >> Acura >> 2009 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Right Engine Compartment Wire Harness Connector And Harness Locations >> Connector or Terminal

Connector or Terminal

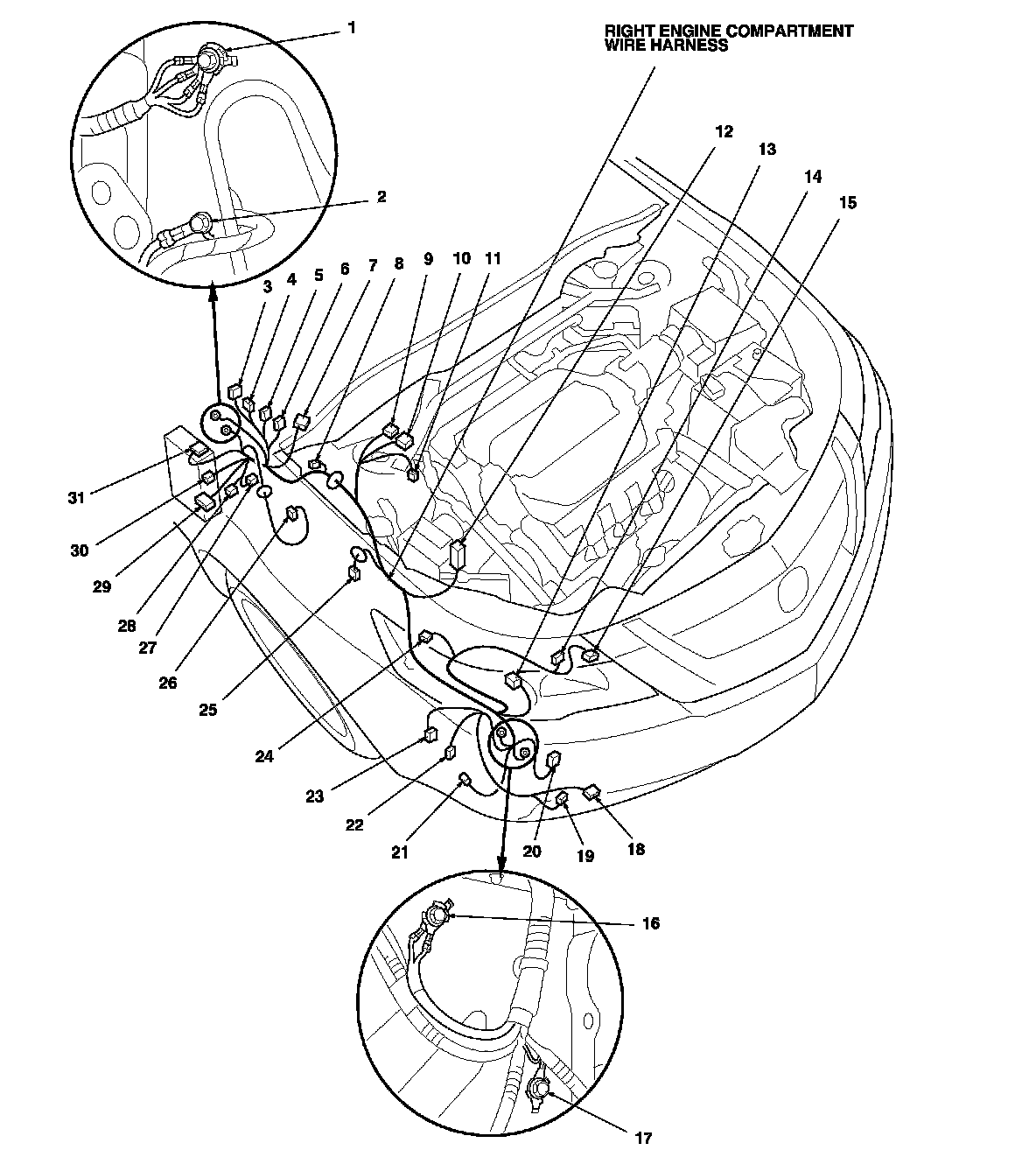

Right Engine Compartment Wire Harness Connector and Harness Locations

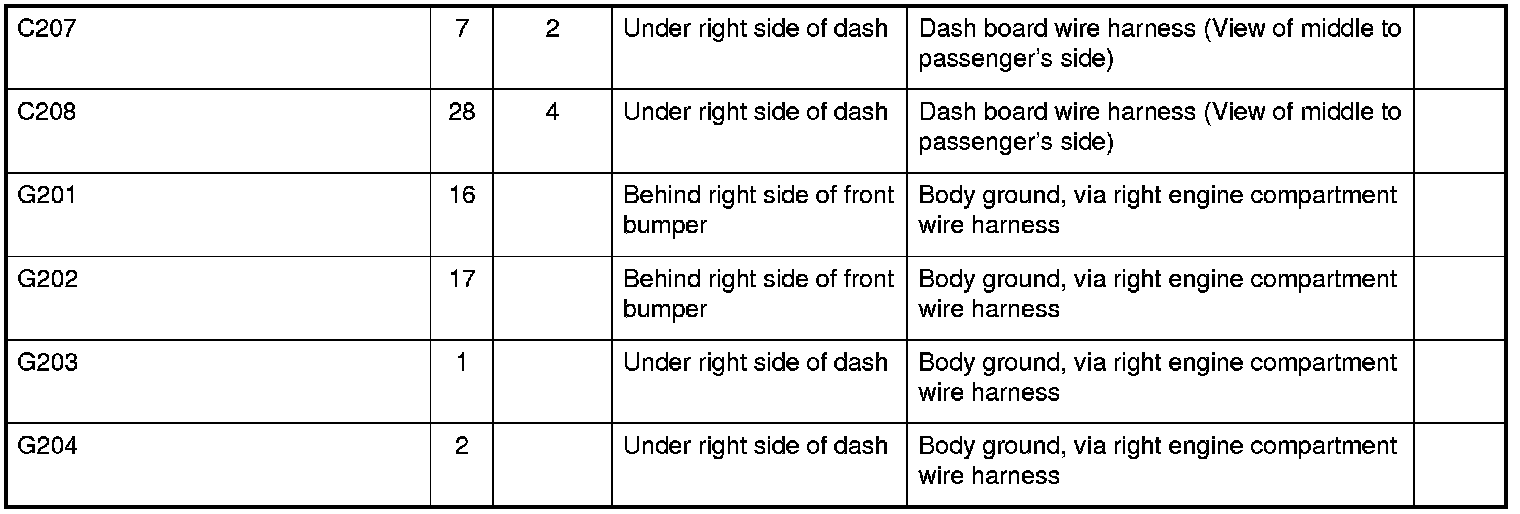

Right Engine Compartment Wire Harness









*1: Canada models with SH-AWD

*2: Canada models
