Headlamp Washer Spray Nozzle: Service and Repair

Headlight Washer Nozzle Replacement

Canada models with SH-AWD

1. Remove the front bumper. Front Bumper

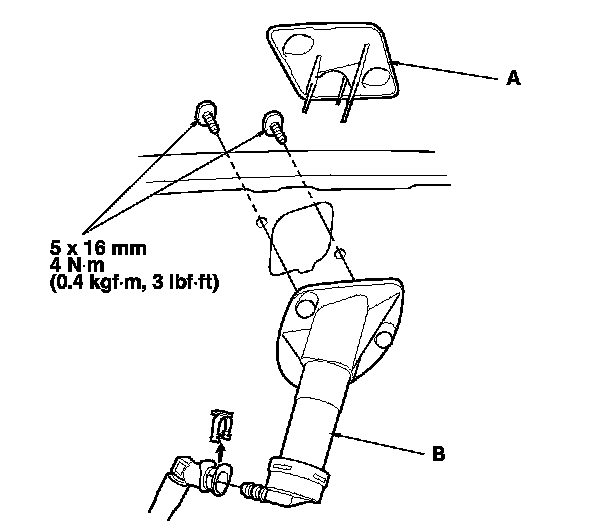

2. Remove the cover (A), tube, mounting screws and headlight washer nozzles (B).

3. Install the nozzle in the reverse order of removal. Take care not to pinch the washer tube. Check the headlight washer operation.
