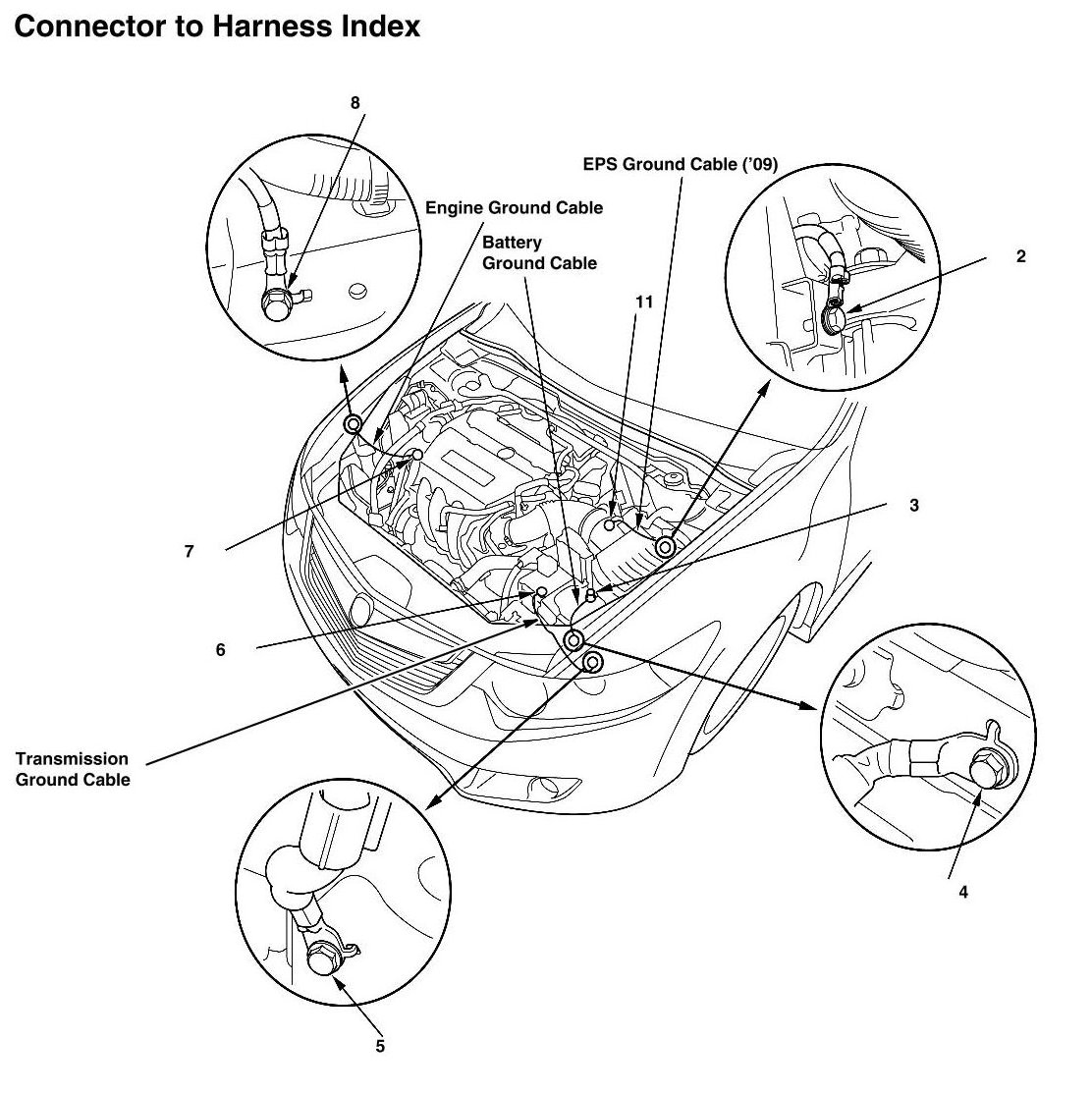

EPS Ground Cable, Battery Ground Cable, Transmission Ground Cable, And Engine Ground Cable Connector And Harness Locations
EPS Ground Cable, Battery Ground Cable, Transmission Ground Cable, And Engine Ground Cable Connector And Harness Locations
