Home >> Acura >> 2009 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Front Passenger's Door Wire Harness And Front Passenger's Courtesy Light Subharness Connector And Harness Locations

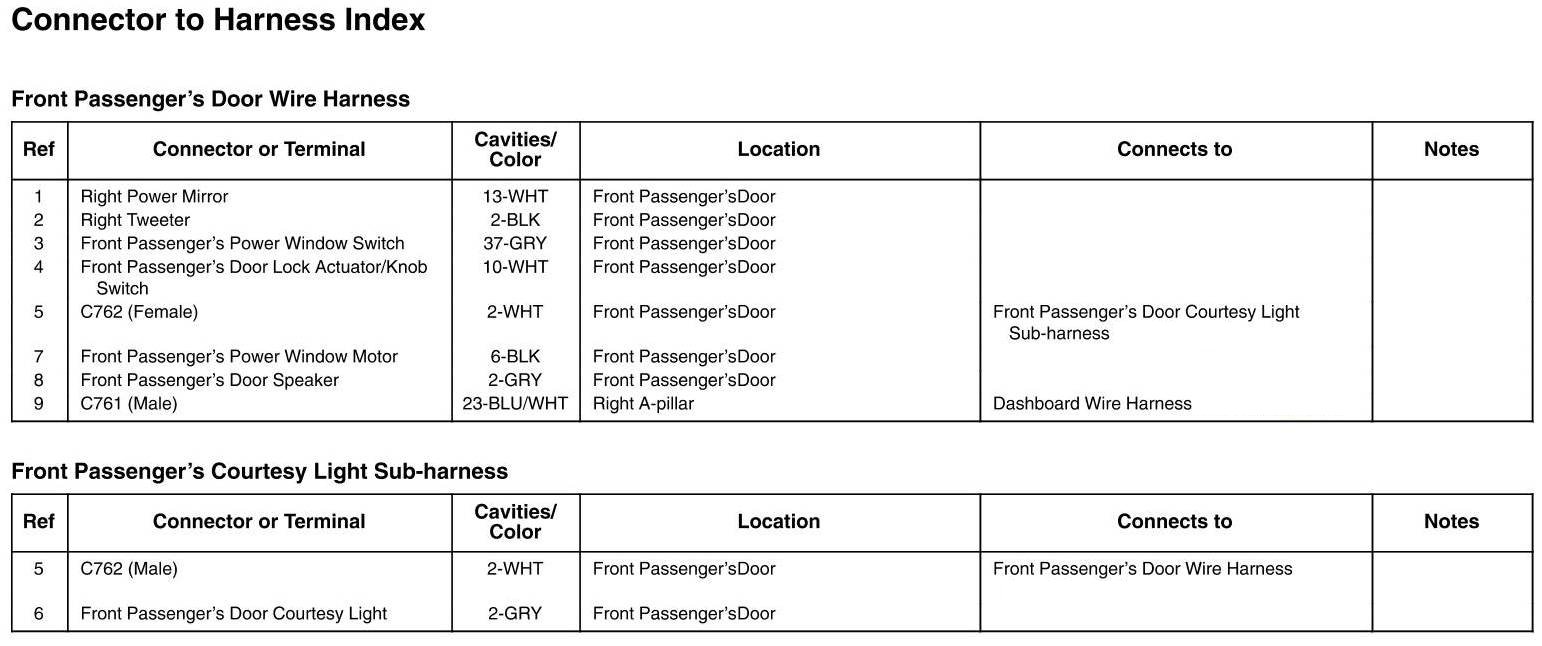

Front Passenger's Door Wire Harness And Front Passenger's Courtesy Light Subharness Connector And Harness Locations
