Home >> Acura >> 2009 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Left Engine Compartment Wire Harness (Engine Compartment Branch) And EPS Ground Sub-harness Connector And Harness Locations

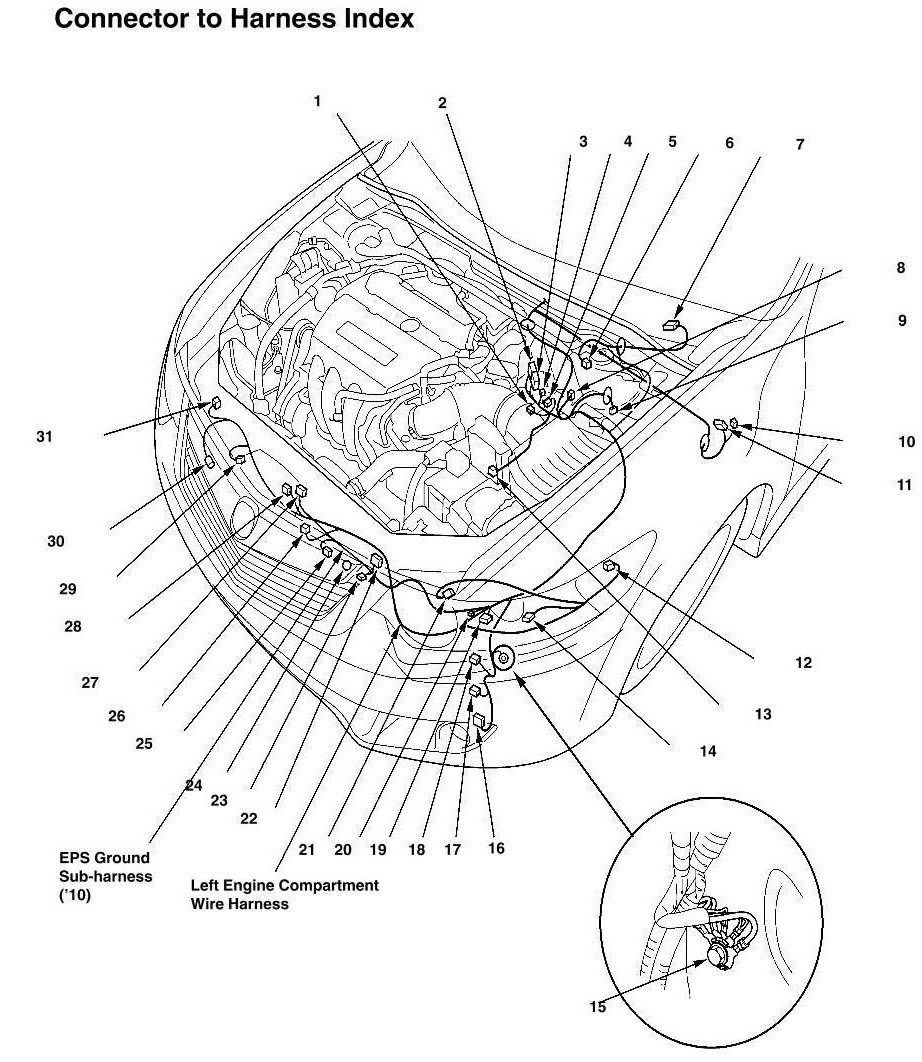

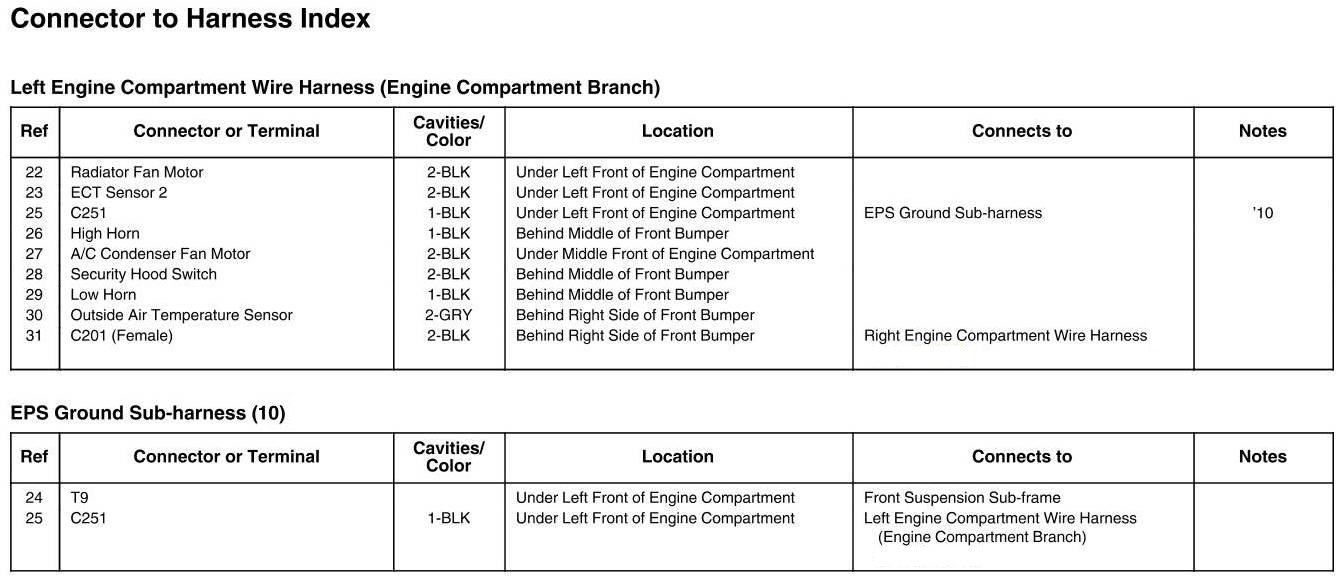

Left Engine Compartment Wire Harness (Engine Compartment Branch) And EPS Ground Sub-harness Connector And Harness Locations
