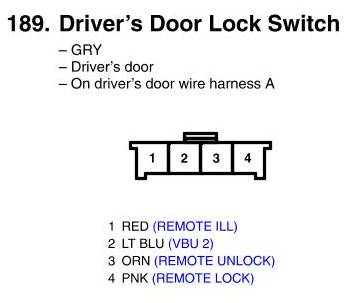

View 189 - Driver's Door Lock Switch Connector View
View 189 - Driver's Door Lock Switch Connector View
