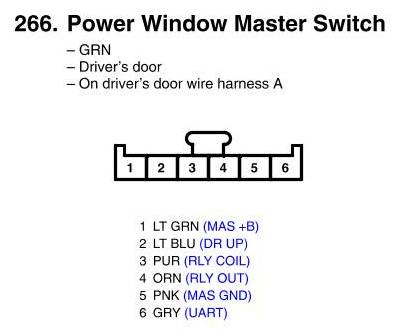

View 266 - Power Window Master Switch Connector View
View 266 - Power Window Master Switch Connector View
