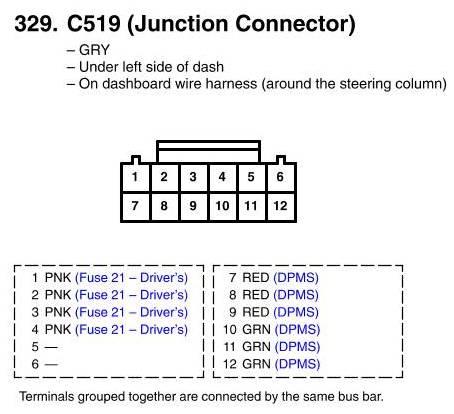

View 329 - C519 (Junction Connector) Connector View
View 329 - C519 (Junction Connector) Connector View
