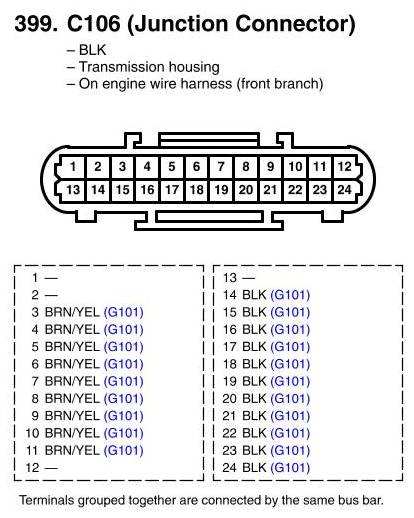

View 399 - C106 (Junction Connector) Connector View
View 399 - C106 (Junction Connector) Connector View
